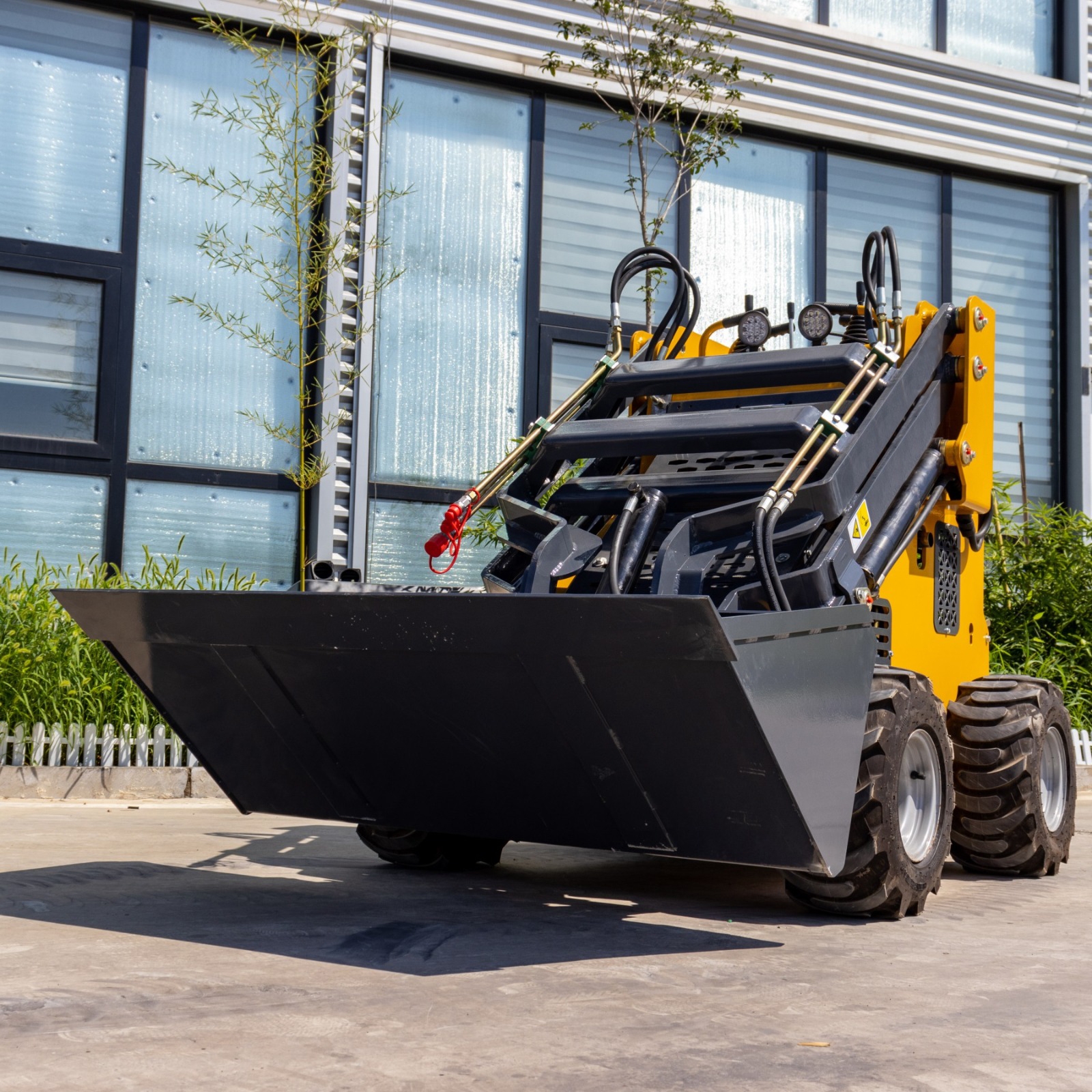

WPS-430Y Skid Steer Loader
$13,500
Net Weight: 950kg
Carrying Capacity: 430kg
Electric Start:
Carrying Capacity: 430kg
Electric Start:

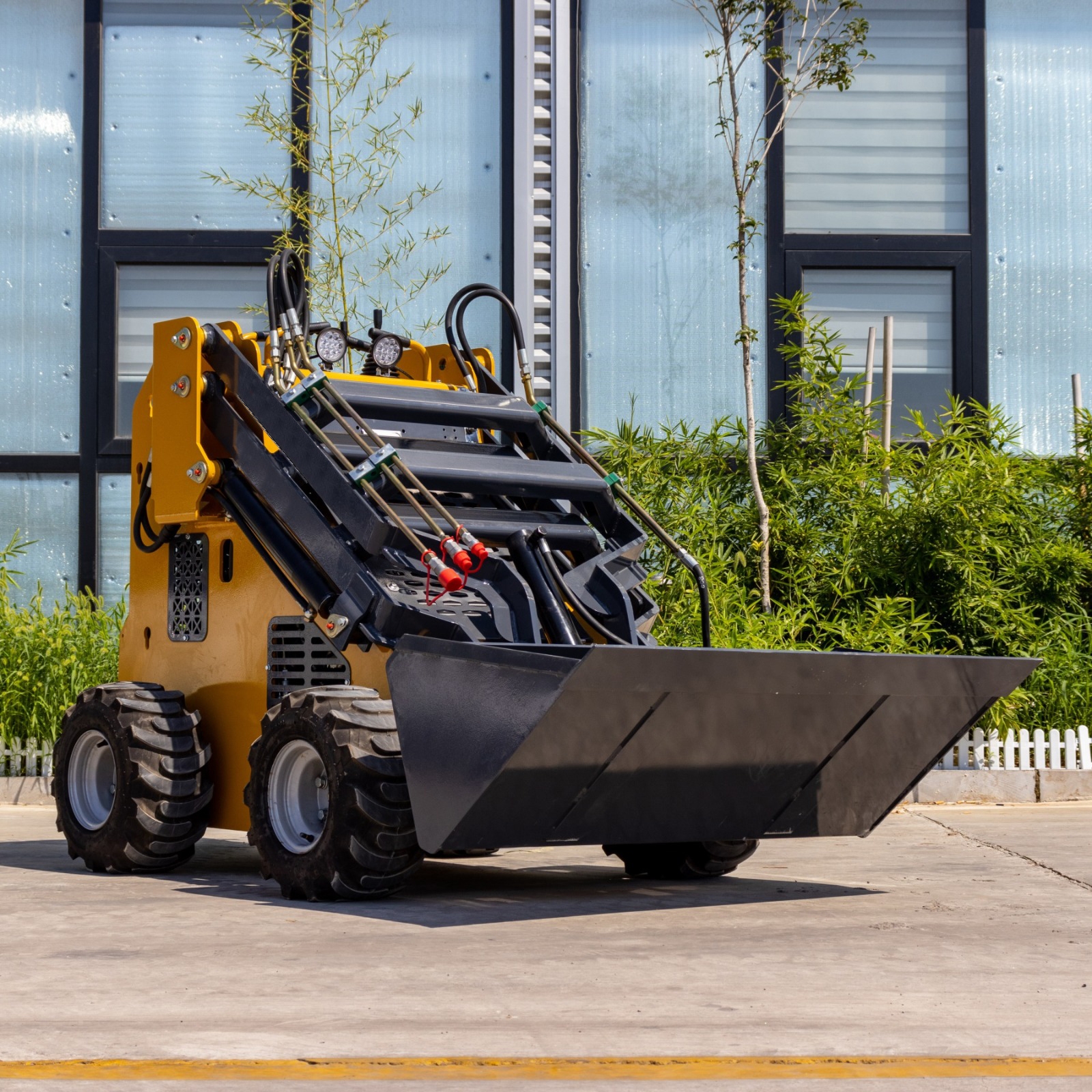

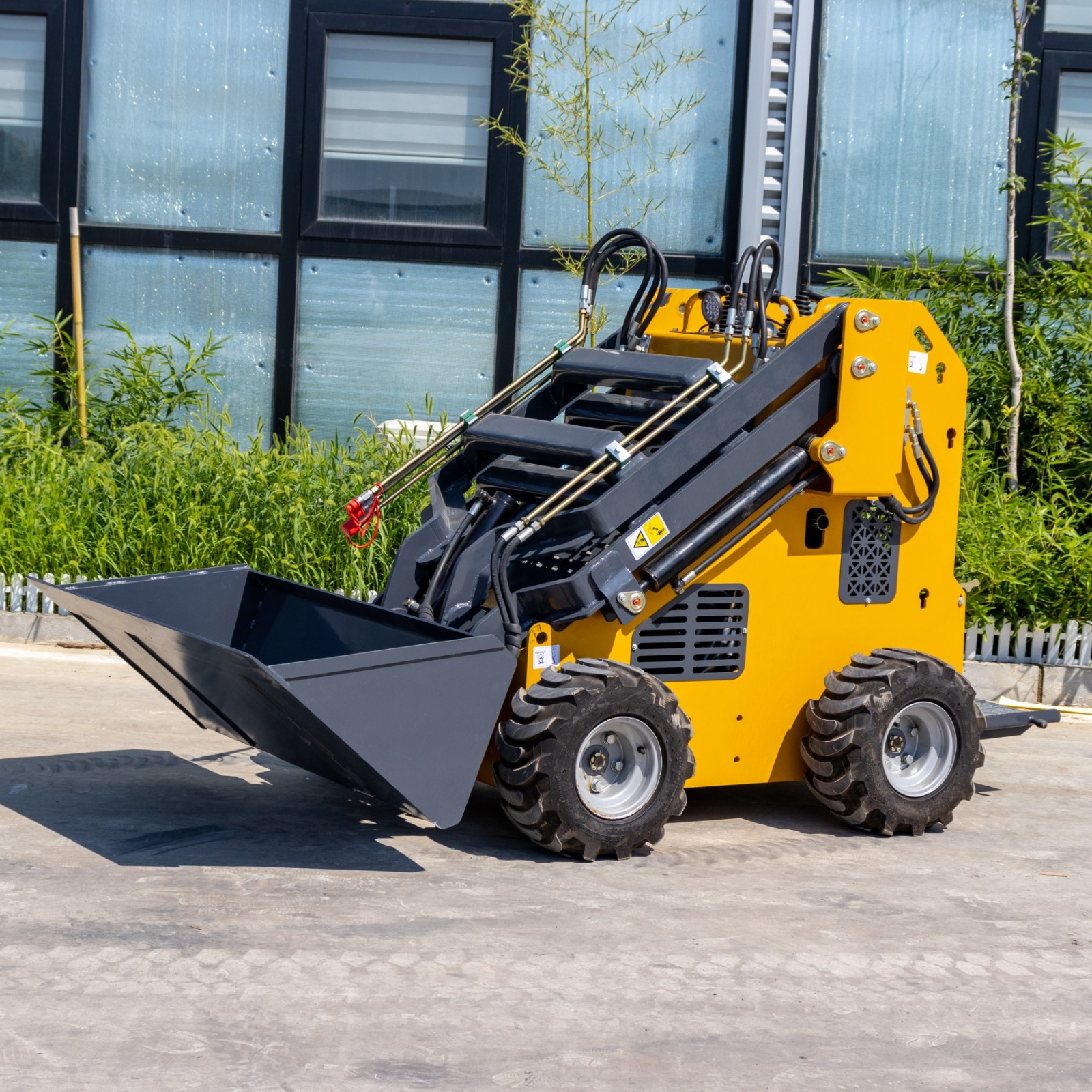

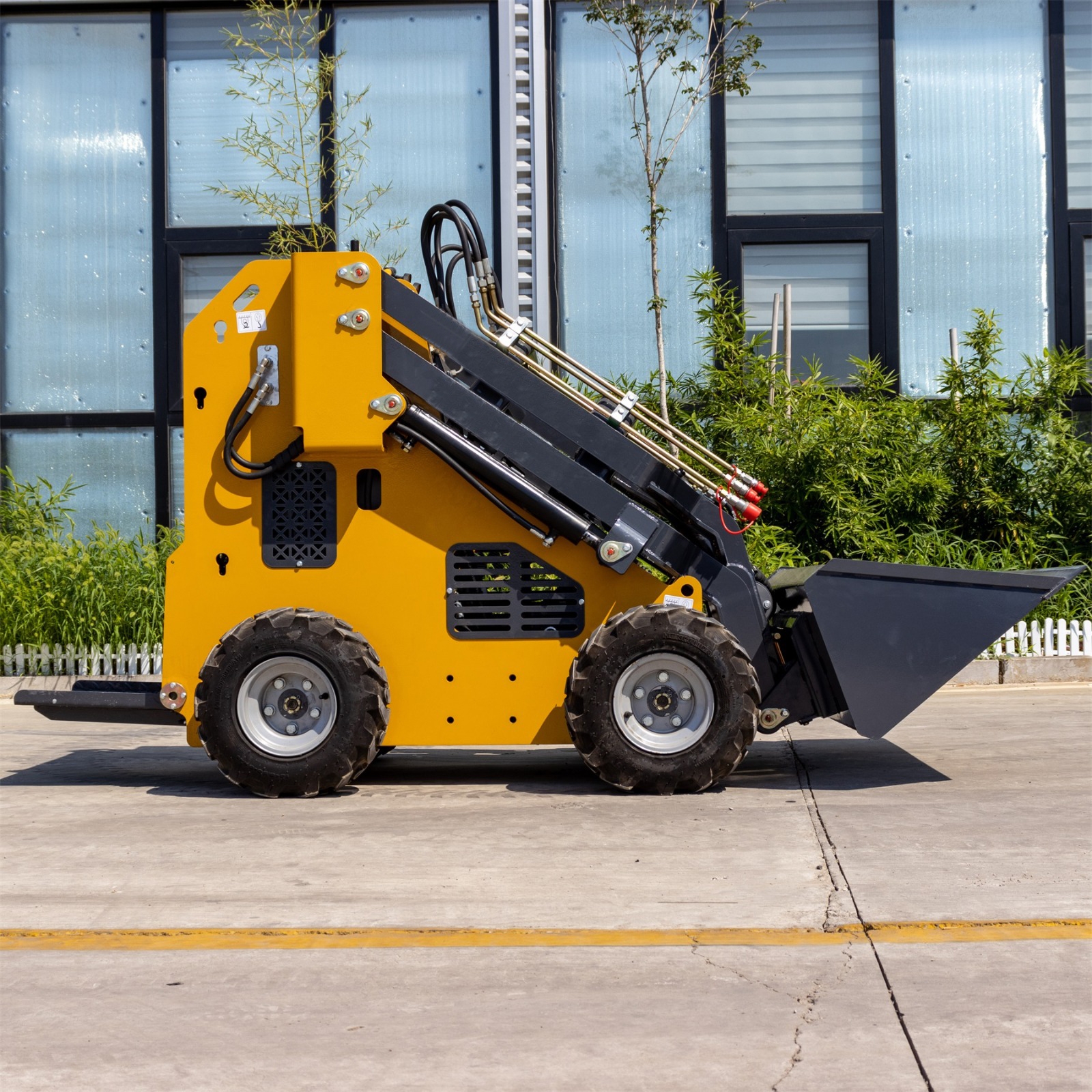

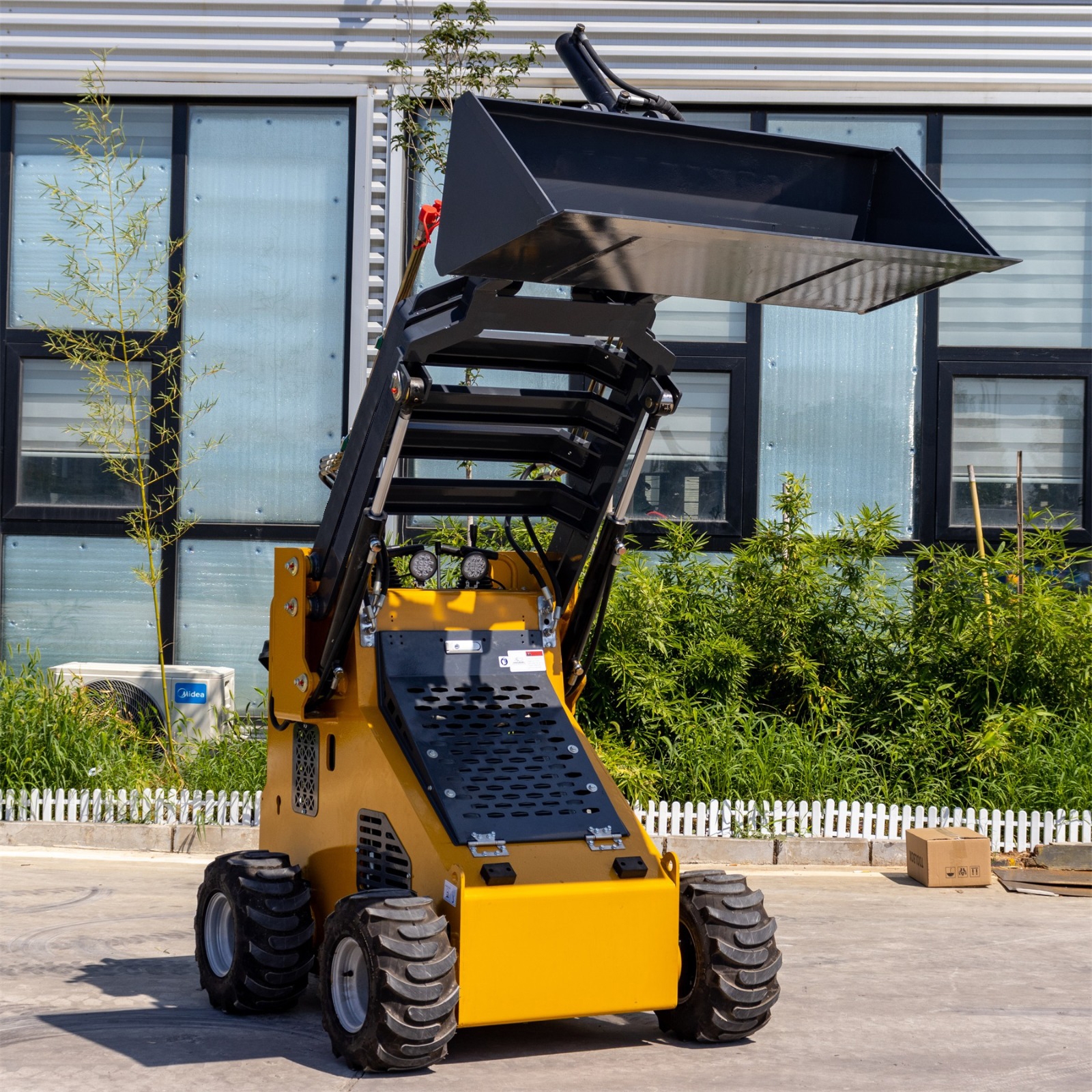

The WPS-430Y Skid Steer Loader is a compact, versatile, and powerful machine designed for construction, landscaping, agriculture, and material handling. Built with a strong Briggs & Stratton 23HP engine, reliable hydraulics, and durable structure, it delivers outstanding performance in tight spaces while maintaining efficiency and ease of operation.
Skid Steer Loader Key Features
- Compact size for maneuverability in confined areas
- 23HP Briggs & Stratton engine for reliable power

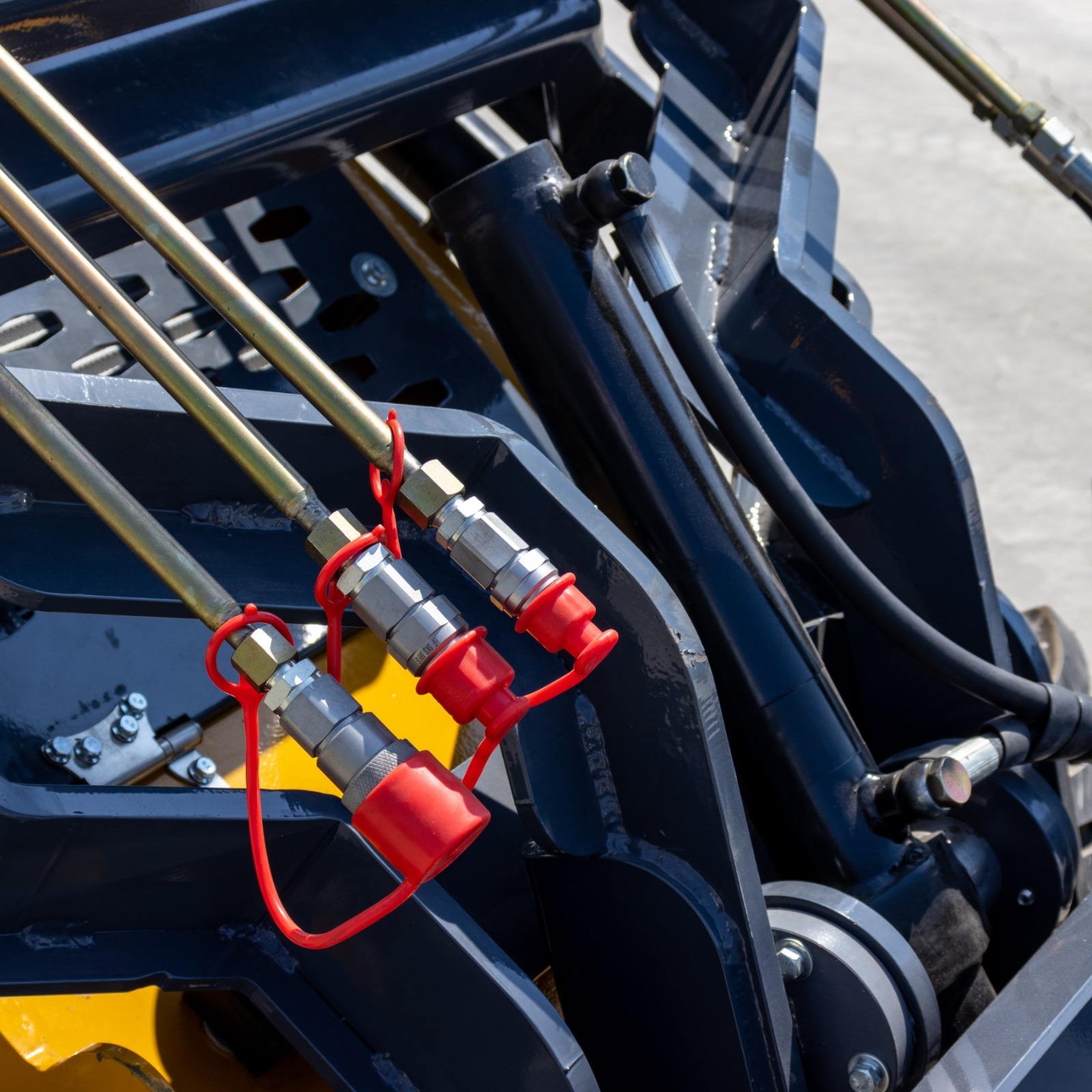

- Strong hydraulic system with 25MPa pressure and 44 L/min working flow
- High lift capacity of 430kg with maximum lift height of 2200mm
- Durable Herringbone engineered tyres for stability and traction
- Low noise operation (≤95 dB) for operator comfort
Specifications
Dimensions
- Total Length (with bucket): 2600mm (102.36 in)
- Total Width: 1200mm (47.24 in)
- Total Height: 1350mm (53.14 in)
- Wheelbase: 860mm (33.85 in)
- Ground Clearance: 100mm (3.93 in)
Working Range
- Maximum Working Height: 2400mm (94.81 in)

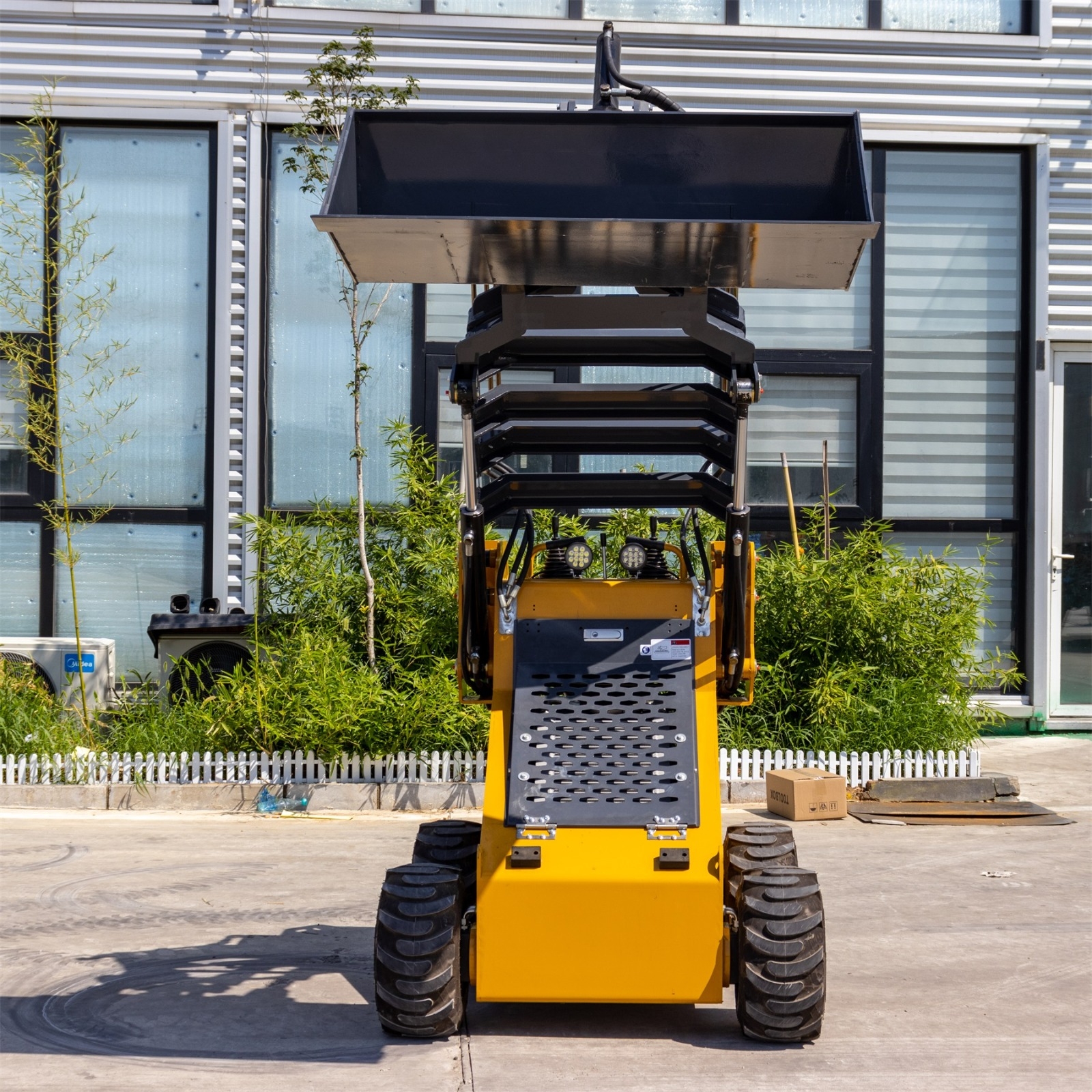

- Maximum Pin Height: 2200mm (86.61 in)
- Maximum Discharge Height: 2000mm (78.74 in)
- Maximum Discharge Distance: 300mm (11.81 in)
- Bucket Swing Angle: 55°
- Bucket Discharge Angle: 40°
Engine
- Model: Briggs & Stratton
- Rated Power: 23 HP
- Rated Speed: 3600 rpm
- Fuel Tank Volume: 30 L
- Hydraulic Tank Volume: 20 L

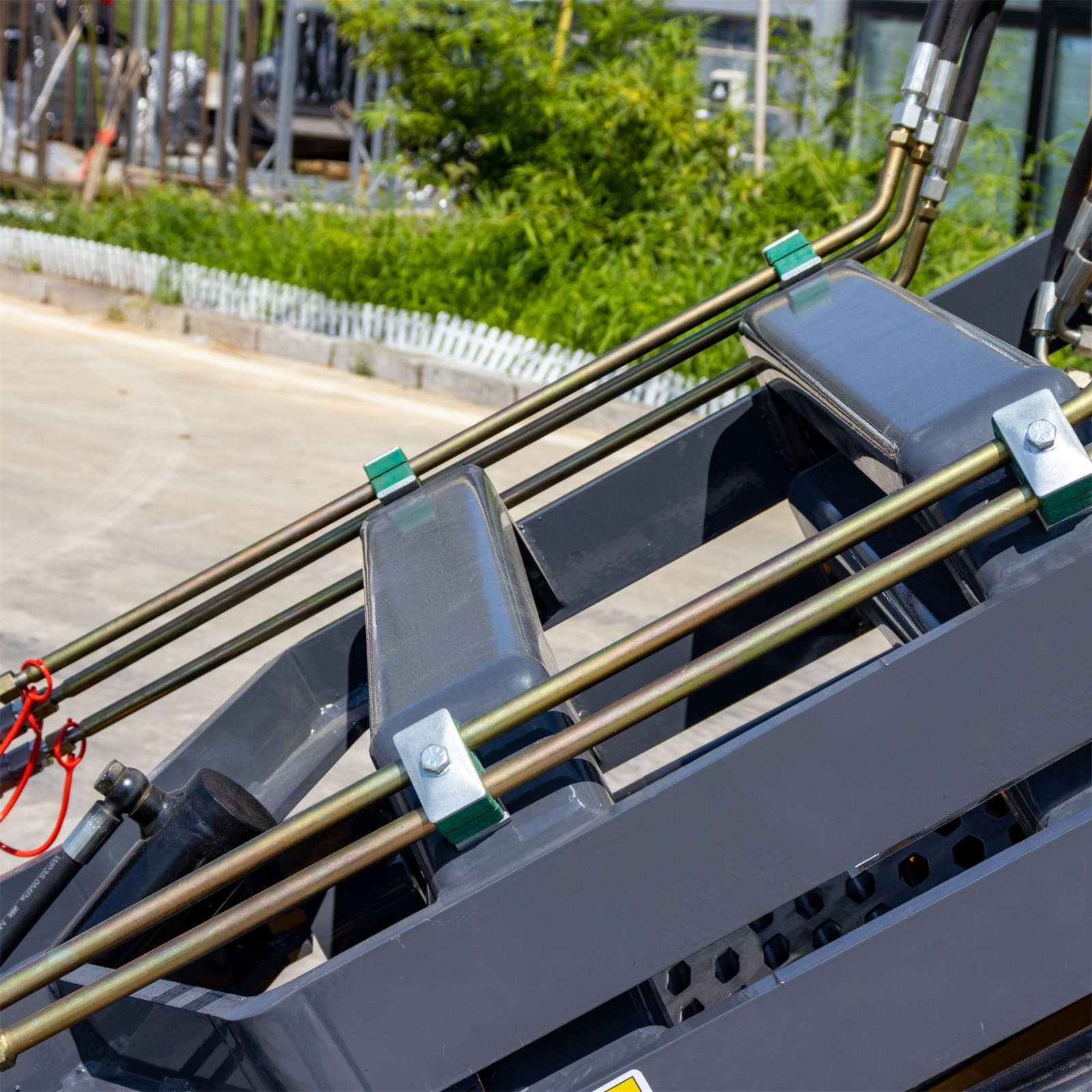

Hydraulic System
- System Pressure: 25MPa (250 bar / 3626 psi)
- Standard Flow: 33 L/min
- Traveling Pump Flow: 75–90 L/min
- Replenishment Pump Flow: 10–13 L/min
- Working System Flow: 44 L/min
Performance
- Carrying Capacity: 430kg (62% tipping load)
- Bucket Volume: 0.17 m³
- Maximum Lift: 430kg (947.9 lb)
- Speed: 0–7 km/h (0–4.3 mph)
- Net Weight: 950kg (2094.39 lb)
- Angle of Climb: 20°
Tyres

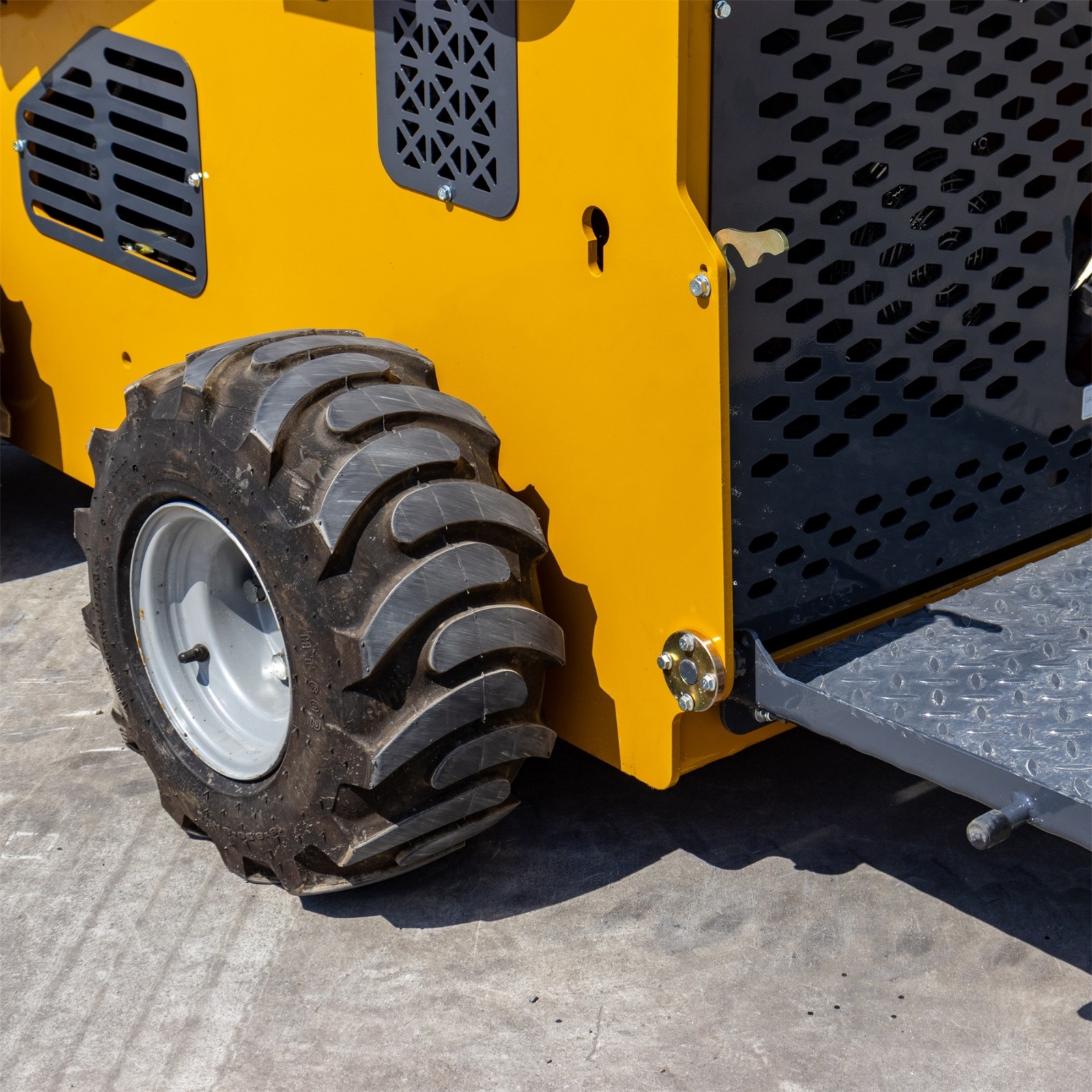

- Herringbone Engineered Tyre: 18×8.5-8
