WPH-Y320T Skid Steer Loader
$9,580
Operating Load 300kg
Rated Power 9.7kw / 3,600rpm
Bucket Capacity 0.15 m3
Rated Power 9.7kw / 3,600rpm
Bucket Capacity 0.15 m3

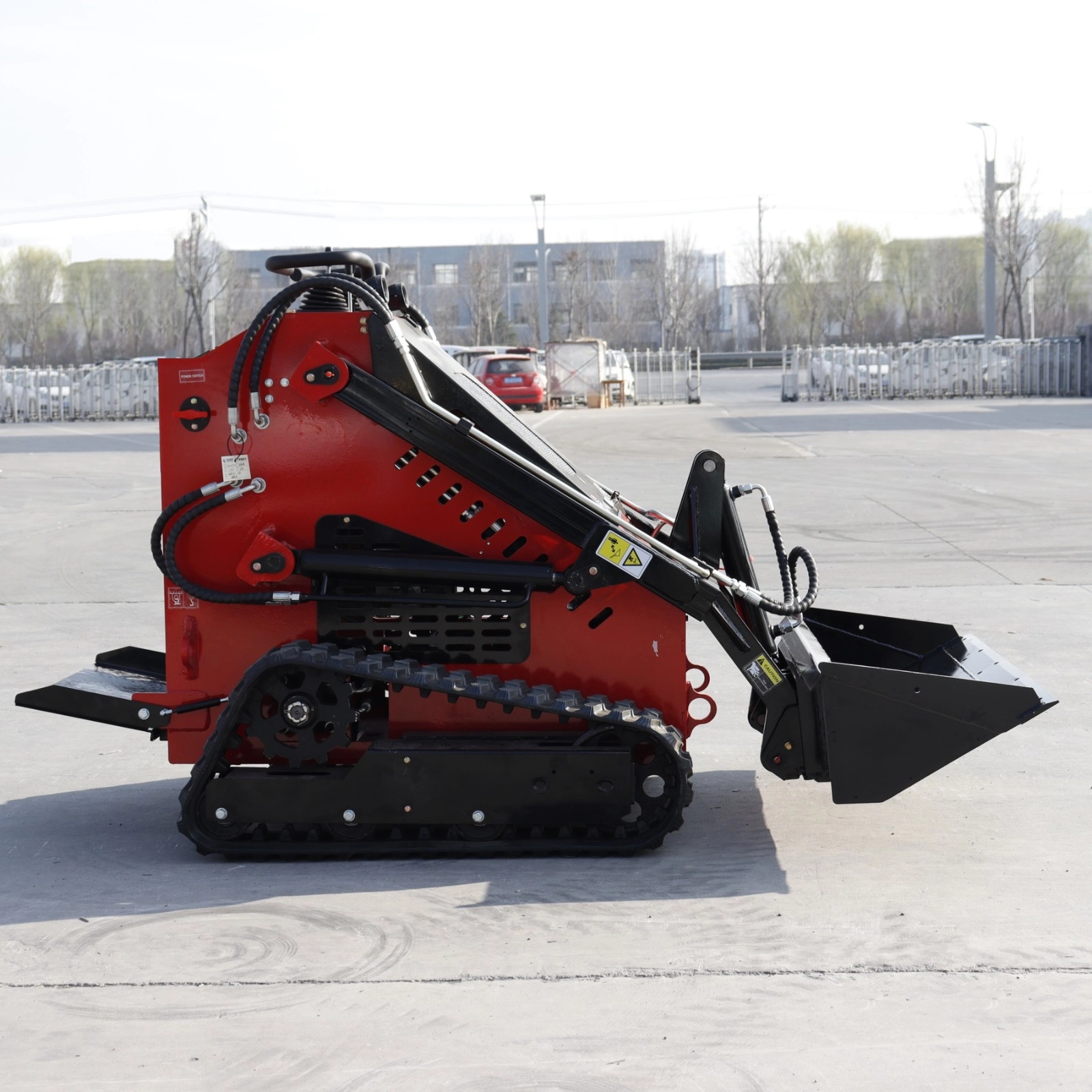

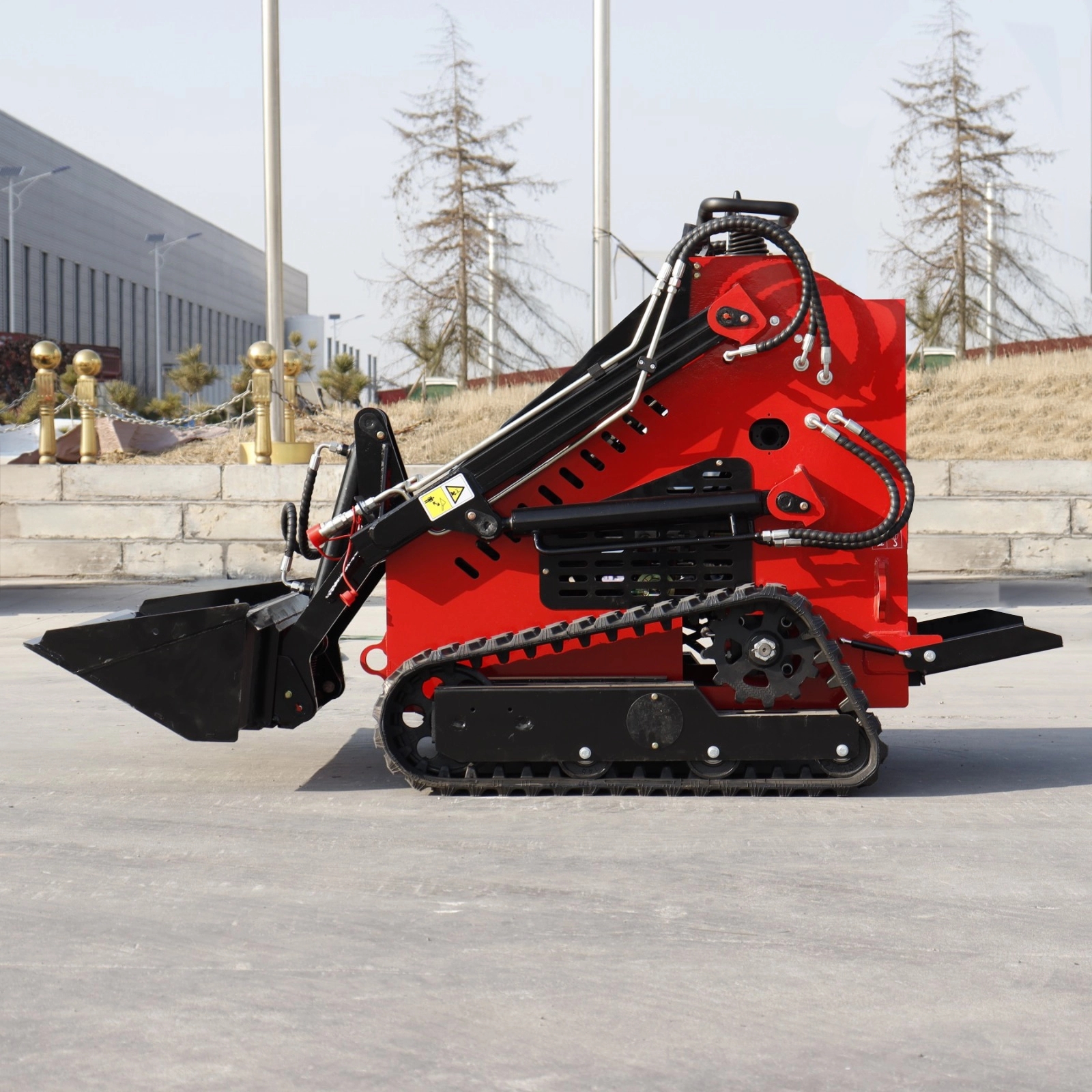

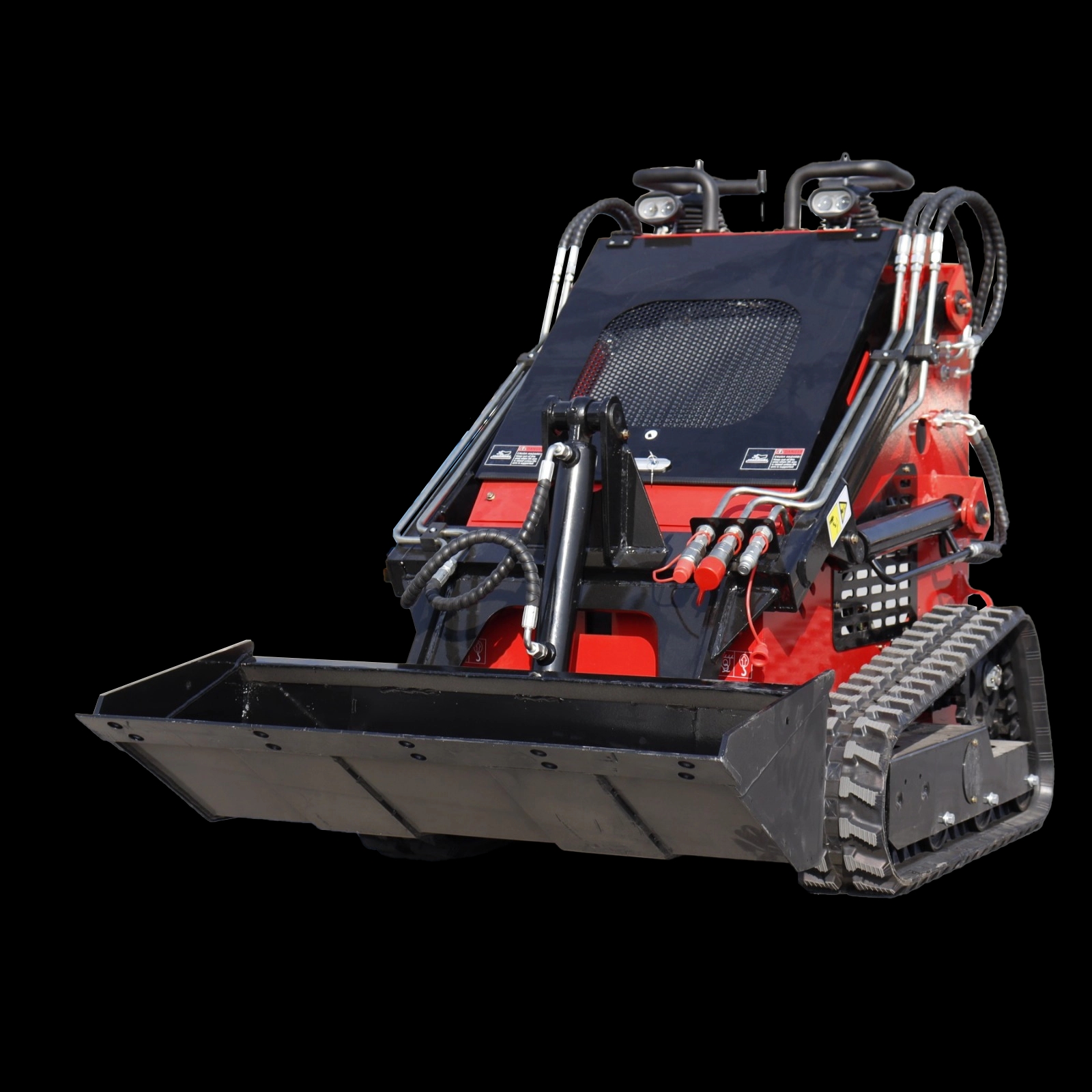

The WP320T Skid Steer Loader is a compact, versatile machine designed for efficient material handling in tight spaces. With a maximum working height of 2120 mm and a lifting force of 360 kg, it offers robust performance for various tasks.
WPH-Y320T Skid Steer Loader
The WPHY320T Skid Steer Loader is a compact, versatile machine designed for efficient material handling in tight spaces. With a maximum working height of 2120 mm and a lifting force of 360 kg, it offers robust performance for various tasks.

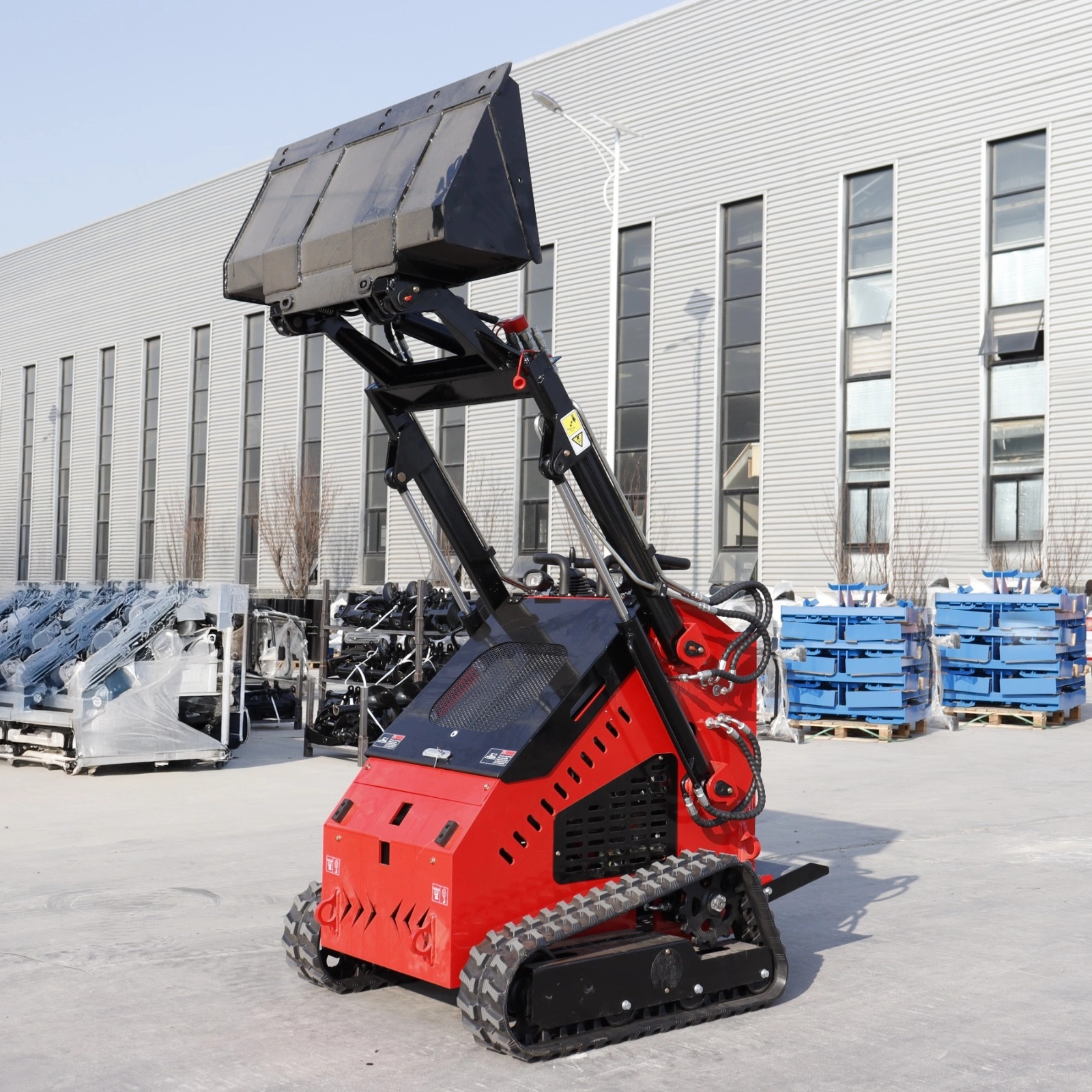

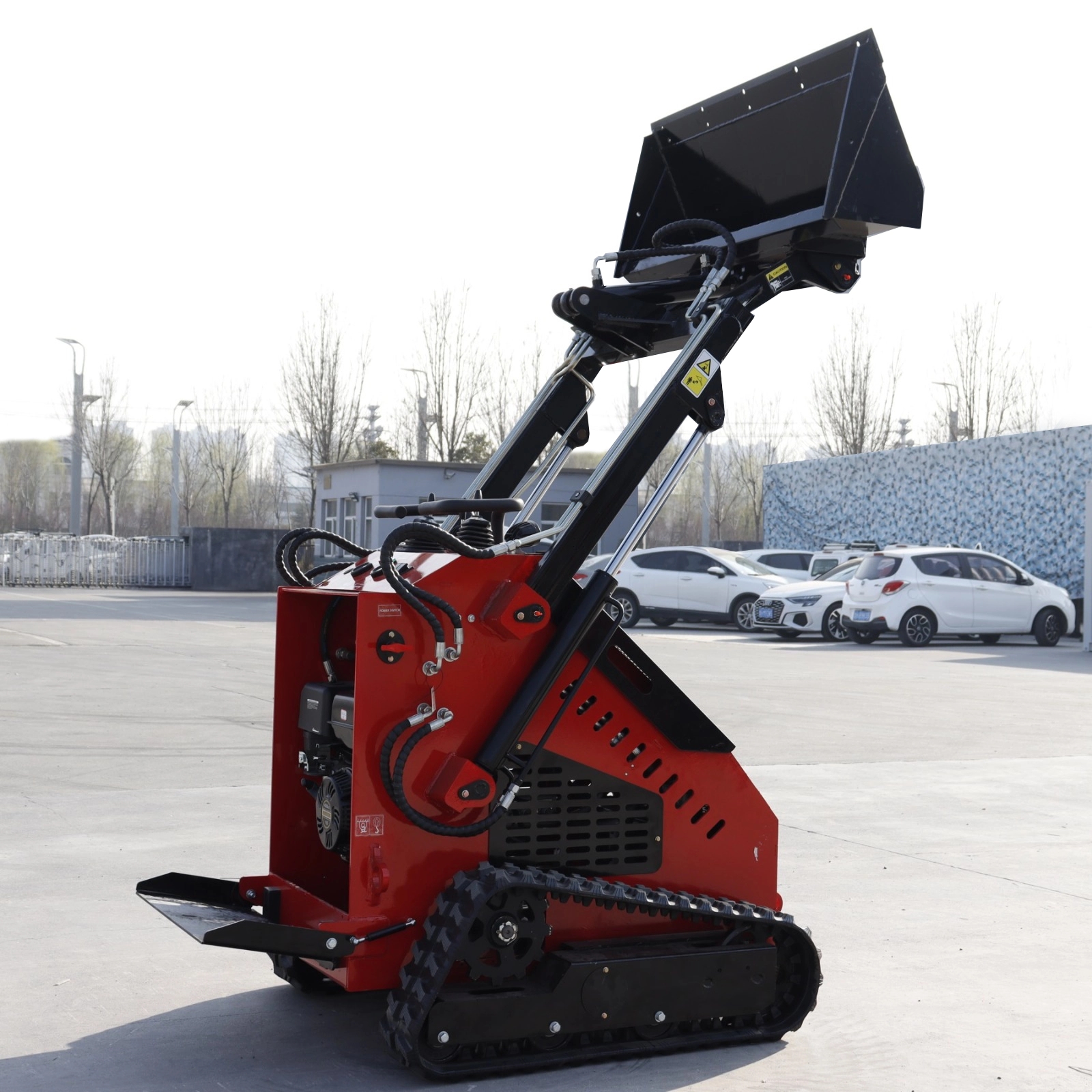

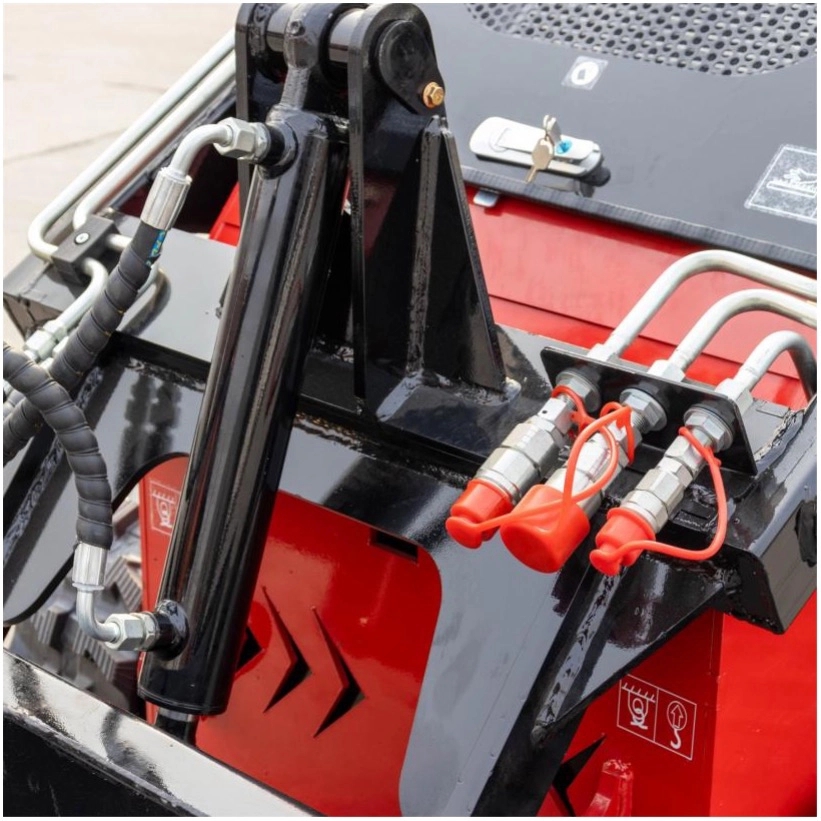

Its hydraulic system operates at pressures up to 17 MPa, providing reliable lifting and dumping capabilities, with a maximum dump height of 1405 mm and a dumping angle of 37°.

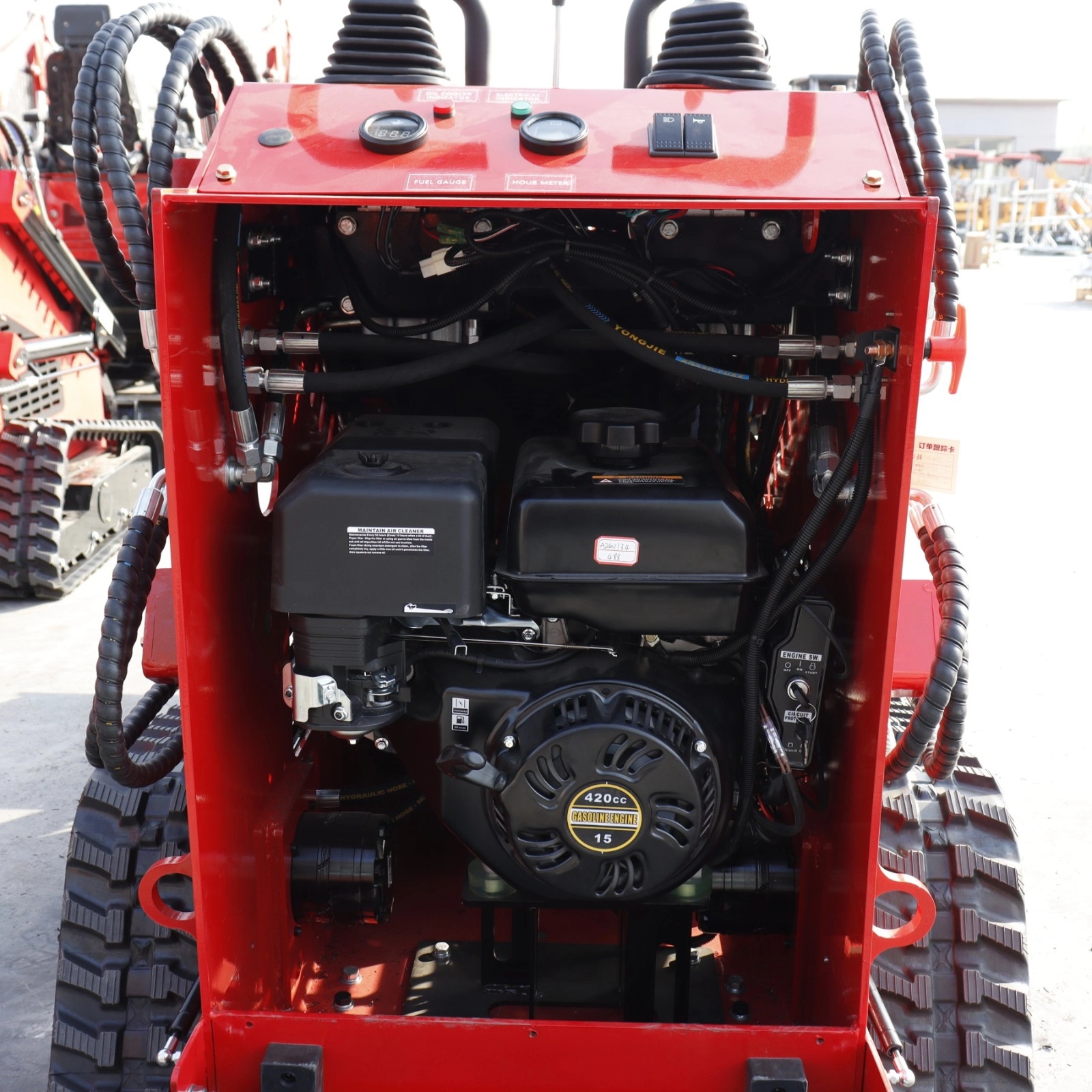

The loader features a bucket capacity of 0.15 m³ and a travel speed of up to 4.5 km/h. Powered by a Rato R420 13.5hp engine EPA2 pumps and valves, with a rated power of 9.7 kW, it is both durable and efficient, with a low noise level of ≤95 dB.
Compact in size, the loader has an overall length of 1495 mm (without the bucket) and a width of 1021 mm, making it ideal for working in confined areas.
Technical Parameters
Image of Wild Import's WP320T Skid Steer Loader Dimensions
Model | WPHY320T |
Max Working Height (mm) | 2,120 |
Max Pin Height (mm) | 1,865 |
Max Dumping Height (mm) | 1,405 |
Max Sumping Distance (mm) | 575 |
Max Dumping Angle (Degrees) | 37 |
Total Height (mm) | 1,350 |
Ground Clearance (mm) | 121 |
Overall Length without bucket (mm) | 1,495 |
Total Width (mm) | 1,021 |
Bucket Width (mm) | 1,080 |
Total Length with bucket (mm) | 2,245 |
Overall Length without bucket & pedal folded (mm) | 1,990 |
Engine Model | Rato R420 |
Rated Power (Kw) | 9.7 |
Rotating Speed (rpm) | 3,600 |
Noise (Db) | ≤95 |
Pressure (Mna) | 0-17 |
Flow Rate (L) | 0-18 |
Operating Load (kg) | 300 |
Bucket Capacity (m3) | 0.15 |
Max Lifting Force (kg) | 360 |
Travel Speed (km/h) | 0-4.5 |
