Compact Copper Wire Granulator
$7,950
Compact And Efficient
Maximum Diameter <30
Process 30-50kg hr
Maximum Diameter <30
Process 30-50kg hr
The S03 Copper Wire Granulator provides a compact solution for processing unwanted electrical cable and separating copper from plastic insulation. Waste cable is fed into the machine, reduced into smaller particles and then separated into metallic and plastic fractions.
Designed for lower-volume cable recycling operations, the S03 offers a considerably smaller footprint than larger industrial cable-processing systems while still integrating the key crushing and separation functions required for copper recovery.

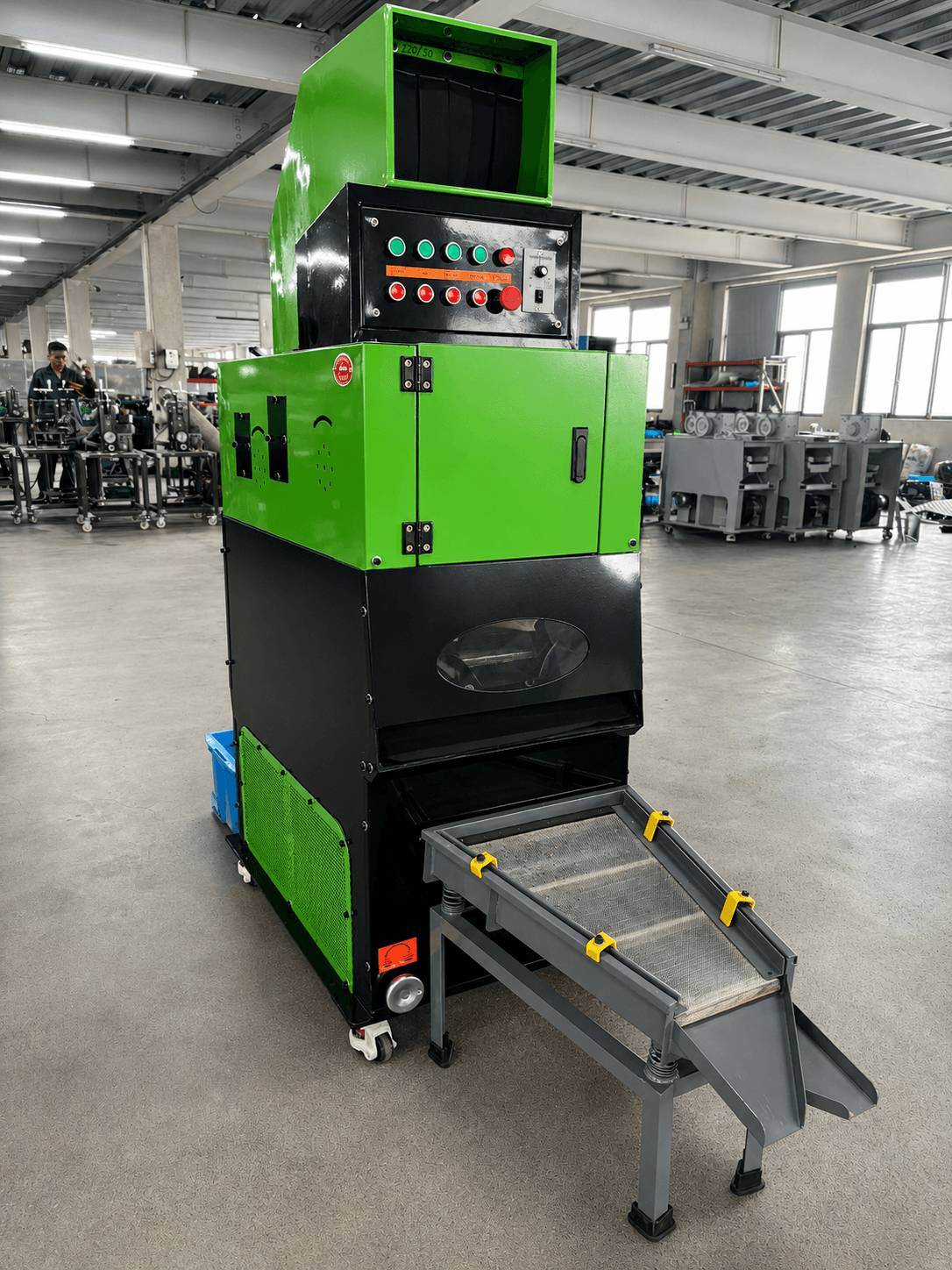

S03 Copper Wire Granulator
Compact Cable Recycling Made Simple
The S03 Copper Wire Granulator is a compact recycling machine designed to process scrap electrical cable and separate valuable copper from plastic insulation.
Ideal for scrap yards, electricians, workshops, recycling businesses and companies generating waste cable, the S03 provides a practical way to recover more value from unwanted wiring.
Simply feed suitable cable into the machine and the S03 crushes and separates the material into copper and plastic fractions ready for collection and recycling.
Key Features
Processing capacity: 30–50 kg/h
Maximum feed cable diameter: under 30 mm
Power: 4.28 kW 240V 15 Amp 50 Hertz
3 moving blades
2 fixed blades
Integrated crushing and separation
Compact design
Suitable for a wide range of scrap electrical cable
Spare blades and screens included
12-month warranty excluding wear parts
Suitable Materials
The S03 can process a wide range of scrap wire and cable including:
Copper wire
Aluminium wire
Automotive wiring
Motorcycle wiring
Battery wiring
Household appliance cable
Computer cable
Telephone wire
Cable TV wiring
Communication cable
Armoured cable
General scrap electrical wiring
How It Works
Scrap cable is fed into the machine and cut into small particles using the internal blade system.
The crushed material then passes through the separation process, separating the metal conductor from the surrounding plastic insulation.
The result is separate copper and plastic outputs, allowing valuable copper to be recovered from waste cable.
Specifications
Model: S03
Capacity: 30–50 kg/h
Power: 4.28 kW 240V 15 Amp 50 Hertz
Maximum Cable Diameter: <30 mm
Moving Blades: 3
Fixed Blades: 2
Dimensions: 1000 × 680 × 1860 mm
Weight: 350 kg
What's Included
The GM-S03 is supplied with:
1 complete spare blade set — 5 pieces
1 screen set — 3 pieces
Lubricant grease gun
Separating table
Additional accessories
12-month manufacturer warranty, excluding normal wear parts.
Turn Scrap Cable Into Recoverable Copper
If your business regularly handles unwanted electrical cable, the S03 provides a compact and straightforward way to process it and recover the valuable metal inside.
