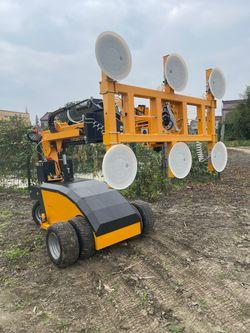

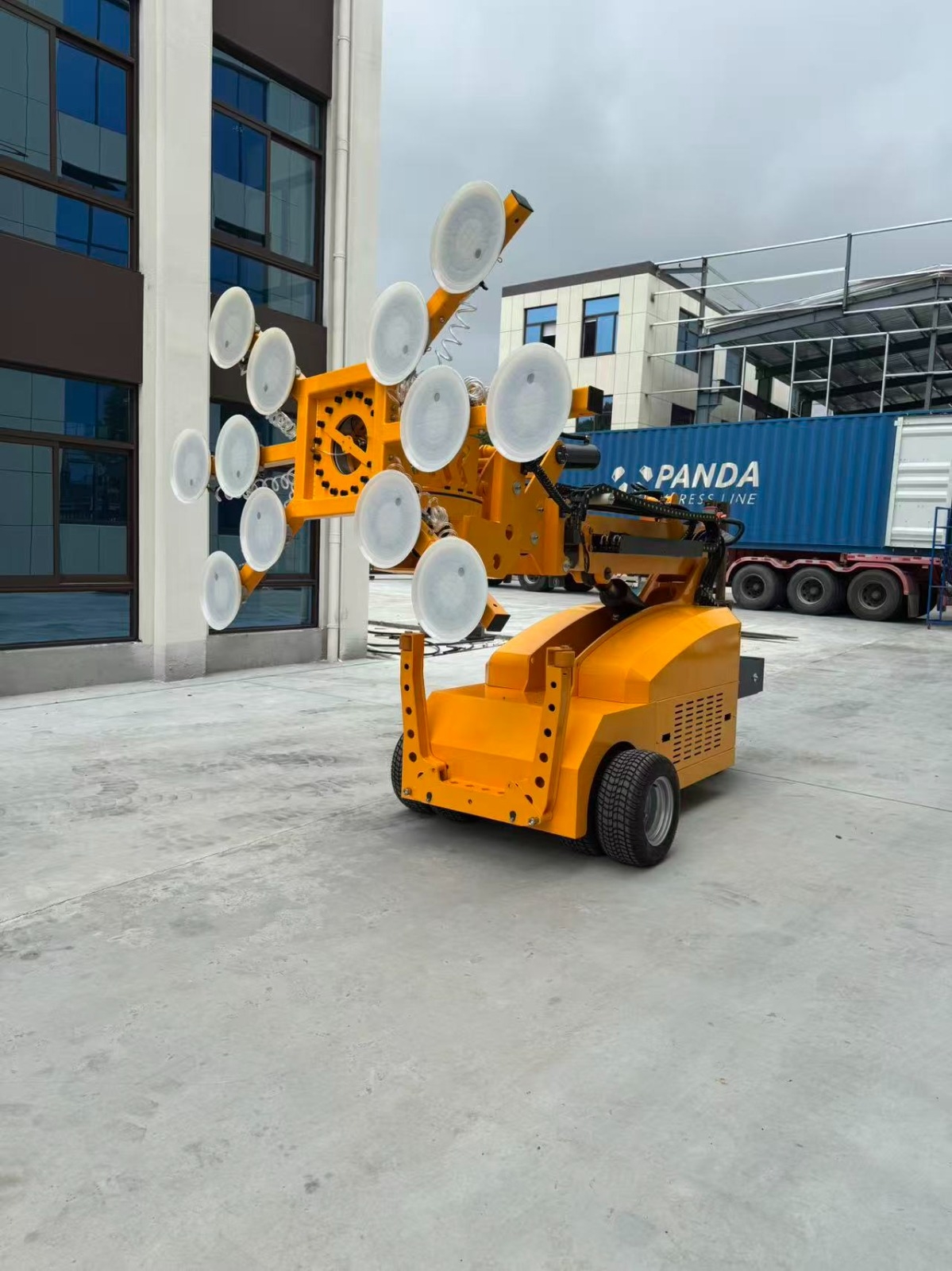

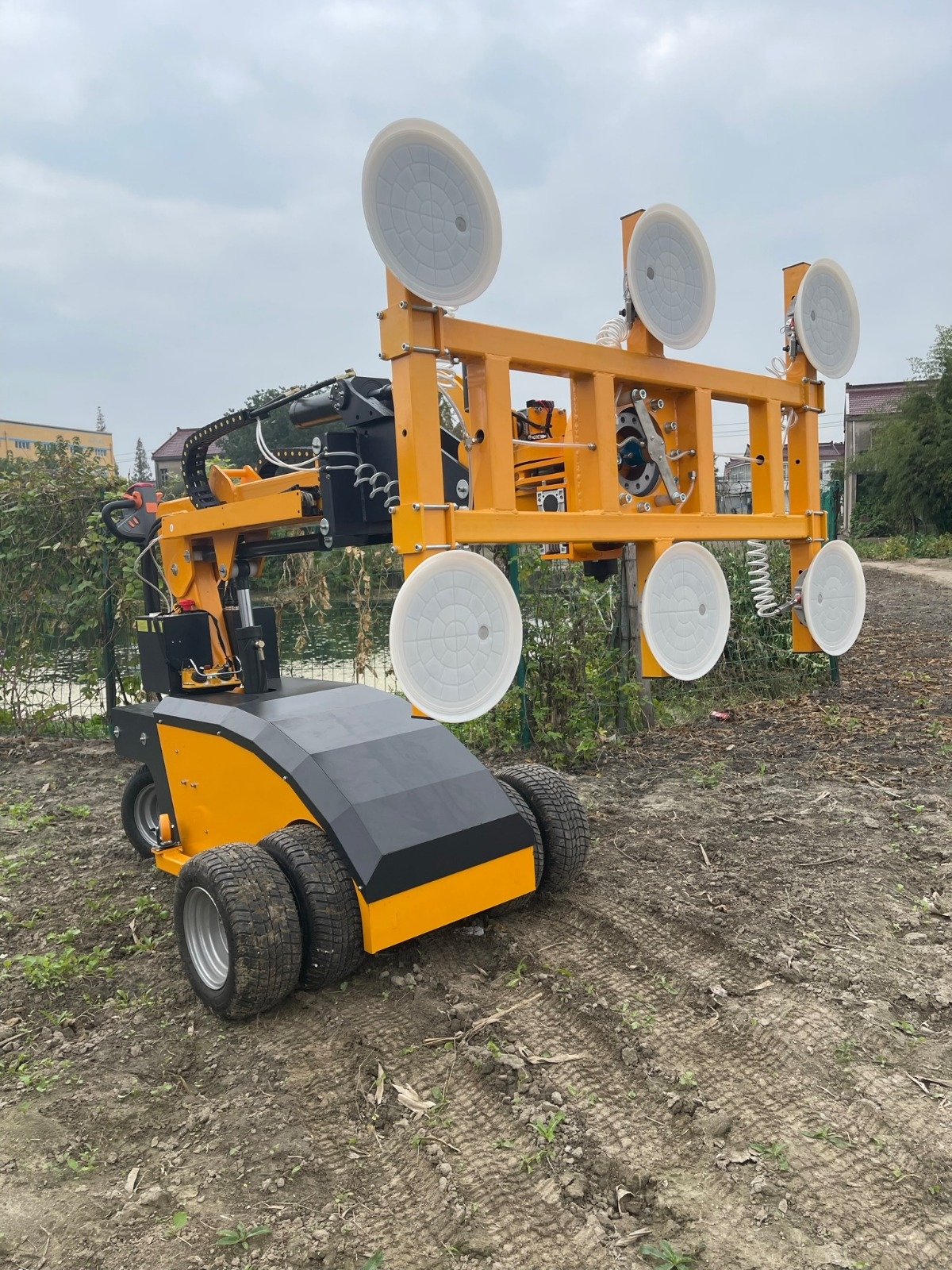

Glass Lifter Heavy Duty
$38,950 (800kg Model)
Heavy Lifting Capacity: 600 - 1200kg
Vacuum Suction System with Dual Safety Circuits
Wireless Remote Control
Vacuum Suction System with Dual Safety Circuits
Wireless Remote Control
The RYG-F Glass Manipulator is a professional-grade vacuum lifting solution designed for safe handling, transport, and installation of large glass panels, curtain walls, stone slabs, and smooth façade materials. Engineered with front axle drive, intelligent vacuum control, and high-capacity lifting power, the RYG-F delivers exceptional stability, precision, and safety on construction sites and glazing projects.
Heavy-Duty Vacuum Glass Lifting & Installation Robot
The RYG-F Glass Manipulator is a professional-grade vacuum lifting solution designed for safe handling, transport, and installation of large glass panels, curtain walls, stone slabs, and smooth façade materials. Engineered with front axle drive, intelligent vacuum control, and high-capacity lifting power, the RYG-F delivers exceptional stability, precision, and safety on construction sites and glazing projects.
Ideal for commercial glazing contractors, curtain wall installers, and industrial lifting applications, the RYG-F reduces manual handling, improves workplace safety, and significantly increases installation efficiency.
Key Features
- Heavy lifting capacity up to 800kg
- Front axle drive for superior traction and stability
- Vacuum suction system with dual safety circuits
- Manual 360° rotation and 90° side tilt
- Automatic rotation and side turning
- Intelligent DC24V actuator control system
- Rough terrain pneumatic tyres
- Walkie-type compact design for tight job sites
- Maintenance-free traction battery
- Electromagnetic braking system
- wireless remote control
- Adjustable suction pad spacing for multiple glass sizes
- Independent suction cup shut-off valves
- Pressure auto-maintaining safety system
Applications
- Glass installation
- Curtain wall glazing
- Shopfront installation
- Stone and marble handling
- Solar panel installation
- Aluminium façade systems
- Factory and warehouse material handling
Full Specifications
Specification Details
Model RYG-F
Driving Mode Front Axle Drive
Max Load Capacity 600kg / 800kg/1200kg
Rotation Automatic Electric Rotation
Side Turn Automatic Electric Side Turn

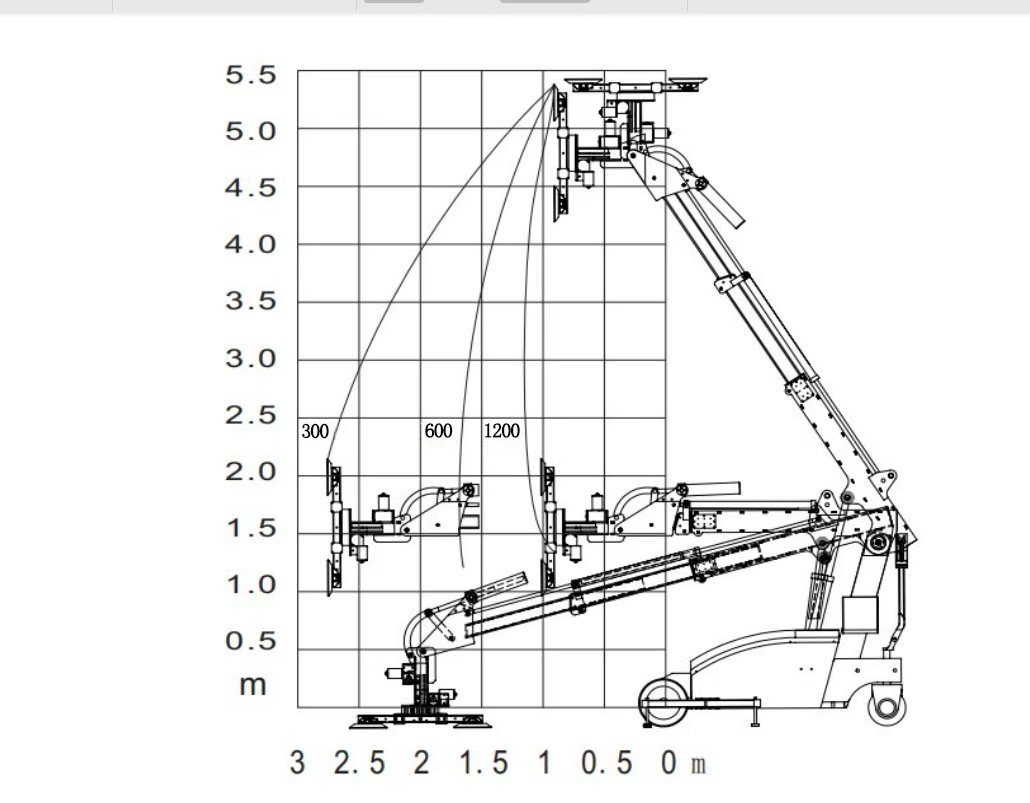

Lifting Height 3700mm / 4500mm / 5000mm
Operating Type Walkie Type
Power Source Tractive-Type Maintenance-Free Battery
Speed Control Stepless Adjustable Speed
Battery 2 × 12V / 120Ah
Charger 24V / 18A
Climbing Gradient 15%
Braking System Electromagnetic Braking Driving
Motor 24V / 2200W or 24V / 2500W
Lifting Motor 24V / 2200W
Front Wheels 466 × 195 Pneumatic Tyres
Front Wheel Qty 2 Dual Front Wheels
Rear Wheels Pneumatic Tyres
Rear Wheel Qty 2
Suction Pad Size 300mm
Suction Pad Quantity 6 / 8 / 12
Weight 1850kg / 2080kg
Safety & Performance Advantages
The RYG-F includes dual independent vacuum systems to maintain suction even if one system fails. Each suction pad operates independently for added flexibility and safety during installation. Integrated pressure-maintaining technology ensures vacuum retention during temporary power interruptions.
The intelligent control system allows precise lifting, extension, tilting, and positioning, making large glass installation faster and safer while reducing labour requirements.
Optional Upgrades Included
- Automatic hydraulic rotation
- Automatic side turning
- Wireless remote control
- Dual front wheel configuration
- Pneumatic rear tyres
- Side-shift positioning system
- Remote-control operation package
Why Choose the RYG-F?
The RYG-F combines heavy lifting performance, advanced vacuum technology, and compact maneuverability into one professional glazing solution. Designed for demanding commercial installations, it improves productivity while protecting operators and delicate materials.
Whether you're installing oversized façade glass, handling stone slabs, or transporting glazing panels on rough terrain, the RYG-F delivers reliable lifting power with precision control.
