Australian Compliance & Standards

• Manufactured in accordance with ISO 9001 quality management systems
• Designed to comply with applicable sections of:
  • AS 1418 – Cranes, Hoists and Winches
  • AS 2550 – Safe Use of Cranes
• Electrical components (where fitted) comply with relevant IEC standards
• Hydraulic systems fitted with pressure relief and load-holding valves consistent with Australian safety requirements
• Emergency stop systems and overload protection fitted as standard

Workplace Safety Compliance

• Work Health and Safety (WHS) Regulations (Australia)
• Safe Work Australia plant and equipment guidelines
• State-based workplace safety authorities (e.g. WorkSafe, SafeWork NSW, WorkSafe Victoria)

Operator Responsibility

• Operator training and licensing must comply with local WHS requirements
• Regular inspections, maintenance, and logbooks are the responsibility of the owner/operator
• Final site compliance may require:
  • Electrical tagging and testing (for electric models)
  • Pre-start inspection and commissioning checks
  • Risk assessment specific to the work environment

Note: Certification, registration, and site approval requirements may vary between Australian states and territories. Buyers are responsible for ensuring the machine meets local regulatory and workplace requirements prior to operation.

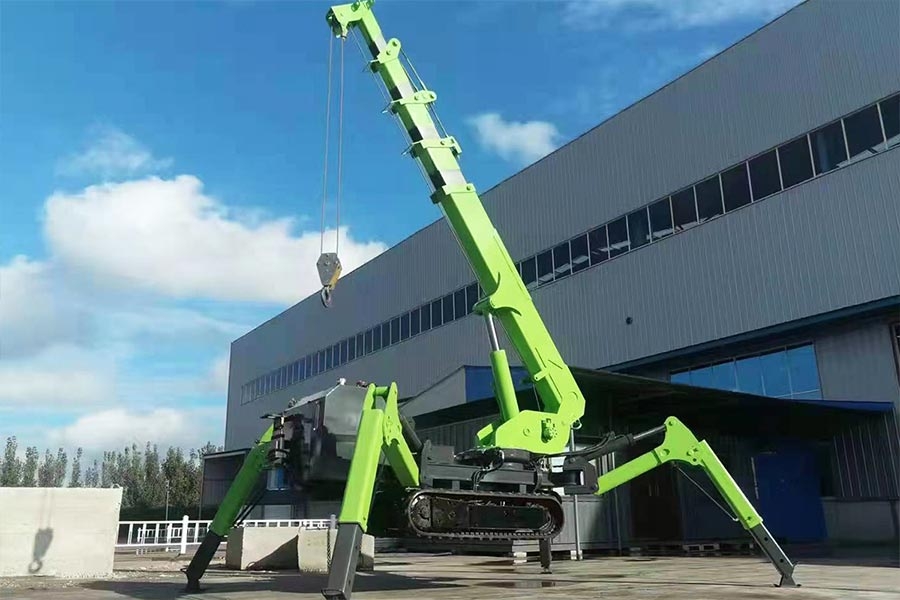

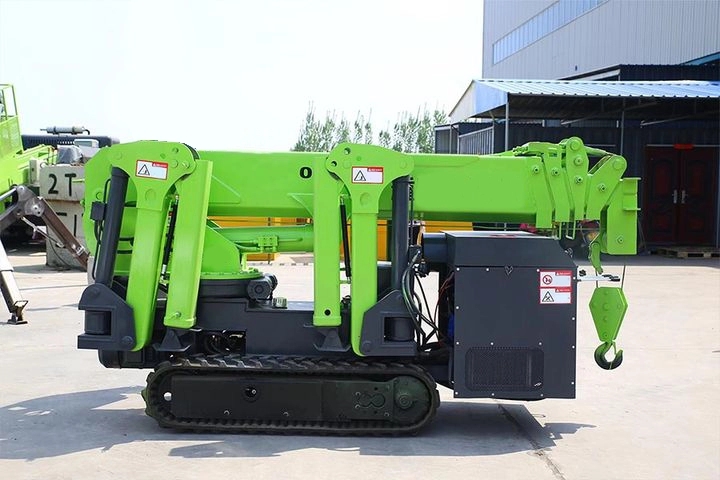

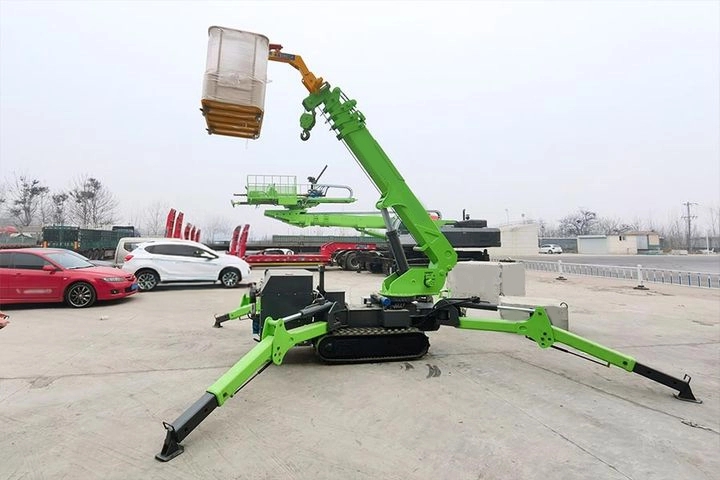

Key Features & Benefits

• 3 Tonne Maximum Lifting Capacity – Strong lifting performance in a compact machine
• Ultra-Compact Design – Accesses tight spaces, doorways, and confined job sites
• Multi-Position Outriggers – Superior stability on uneven or restricted ground
• Tracked Undercarriage – Low ground pressure for soft or sensitive surfaces
• Precise Control System – Smooth, accurate lifting and slewing operations
• Suitable for Indoor & Outdoor Use – Ideal for warehouses, factories, and construction sites

Specifications

• Maximum Lifting Capacity: 3,000 kg
• Maximum Working Radius: Approx. 8–9 m
• Maximum Lifting Height (Above Ground): Approx. 9–10 m
• Maximum Lowering Depth (Below Ground): Approx. 10–11 m
• Machine Weight: Approx. 2.6–2.8 tonnes

• Overall Length: 3,200 mm
• Overall Width: 980 mm
• Overall Height: 1,750 mm
• Track Width: 230 mm
• Track Ground Contact Length: 1,450 mm
• Ground Pressure: Approx. 49 kPa

• Boom Type: Telescopic Boom
• Boom Extension: Hydraulic
• Winch Type: Hydraulic Winch
• Slew Rotation: 360° Continuous
• Luffing Angle: Up to approx. 20°+

• Drive Type: Tracked
• Power Options:
  • Electric Motor: 380V, 50Hz, approx. 5.5 kW
  • Diesel Engine: Kubota or Yanmar
• Starting System: Electric Start
• Fuel Type (Diesel Option): Diesel

Safety Features

• Load Moment Limiter (LMI) – Prevents overload and unsafe lifting conditions
• Emergency Stop System – Immediate shutdown in critical situations
• Outrigger Interlock System – Prevents lifting unless outriggers are correctly deployed
• Hydraulic Safety Valves – Protect against hose failure and pressure loss
• Automatic Alarm System – Audible alerts during operation and movement
• Low Centre of Gravity Design – Enhanced stability during lifting
• Non-Slip Operator Controls – Improved operator safety and control

Ideal Applications

• Glass and façade installation
• Steel and structural work
• Equipment installation and removal
• Indoor lifting operations
• Maintenance and industrial shutdowns
• Tight access construction sites

Why Choose This 3T Spider Crane?
