Spider Crane 1.5 Ton
$31,950
1500kg Maximum Capacity
Transport 2.5L x 650mm Wide
Wireless Remote Control
Transport 2.5L x 650mm Wide
Wireless Remote Control
Fully Equipped Compact Lifting Power, The Wild Imports WPS-150 is supplied in a premium, fully equipped configuration incorporating all available operating, safety and lifting upgrades.
Standard Wild Imports equipment includes proportional wireless remote control, a rated-capacity and torque-monitoring system, emergency-stop controls and the complete tracked spider-crane operating package.

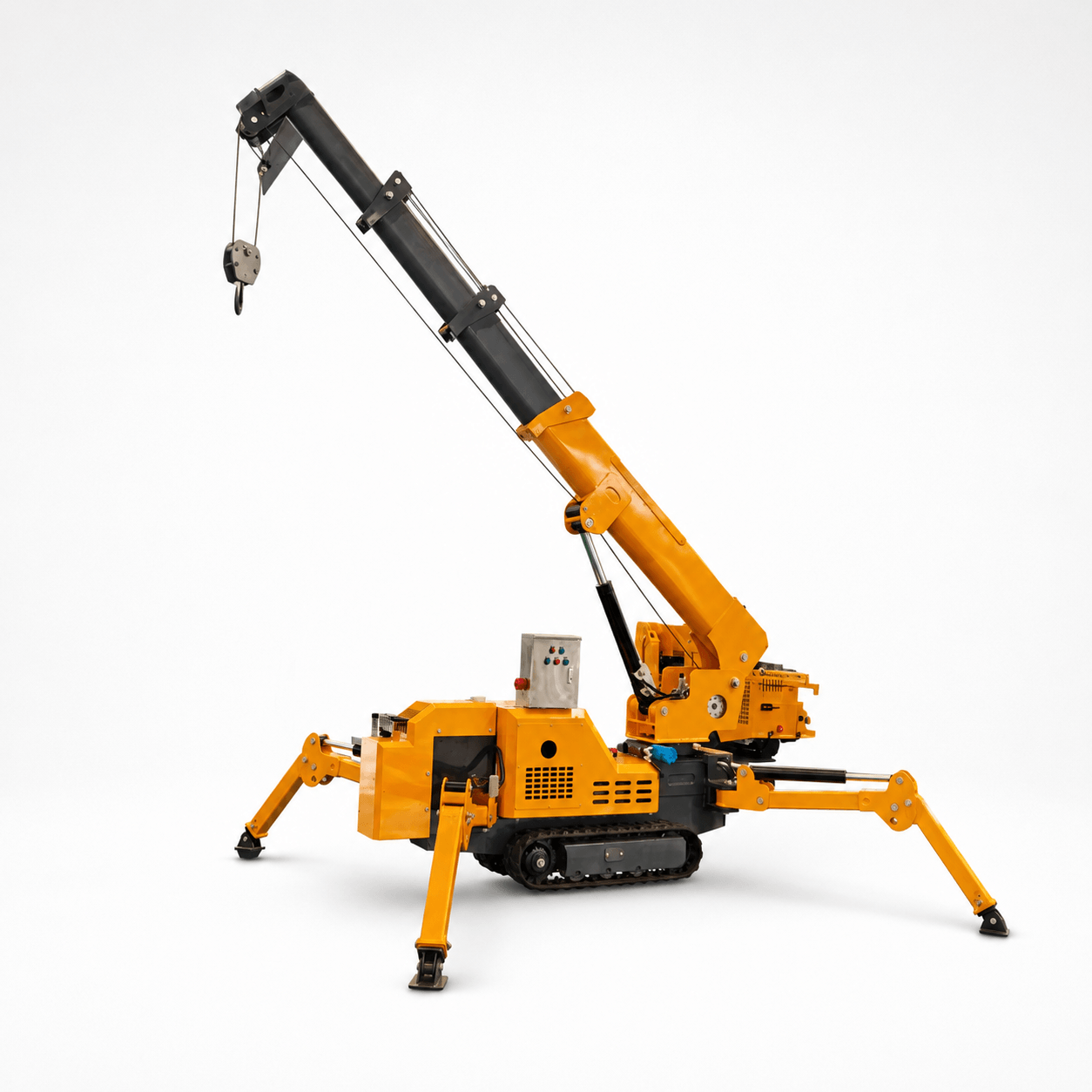

WPS-150 Spider Crane
Fully Equipped Compact Lifting Power
The Wild Imports WPS-150 Spider Crane delivers serious lifting performance in an exceptionally compact and manoeuvrable package.
With a maximum rated lifting capacity of 1.5 tonnes, a maximum working radius of 6 metres and a transport width of only 650 mm, the WPS-150 is purpose-built for indoor, outdoor and restricted-access lifting applications.
Unlike base-model machines, the Wild Imports WPS-150 is supplied with the complete available safety package as standard. This includes a rated-capacity and torque-limiting system, screen-equipped proportional wireless remote control, outrigger lift alarm and three-wrap winch-rope protection system.
Customers can also choose between a Koop diesel engine or Briggs & Stratton commercial petrol engine at no difference in price.
A fully equipped 1.5-tonne tracked spider crane with a 6.5-metre telescopic boom, 6-metre working radius, proportional screen remote, torque limiter, outrigger alarm and advanced winch-rope protection.
key features
✓ 1,500KG MAXIMUM CAPACITY
Impressive lifting capability from a compact 1.7-tonne tracked platform.
✓ ONLY 650MM WIDE
Designed to access narrow entrances, confined worksites and restricted lifting areas.
✓ COMPLETE SAFETY PACKAGE
Torque limiter, screen remote control, outrigger lift alarm and three-wrap rope protection included.
Big crane capability in a compact machine

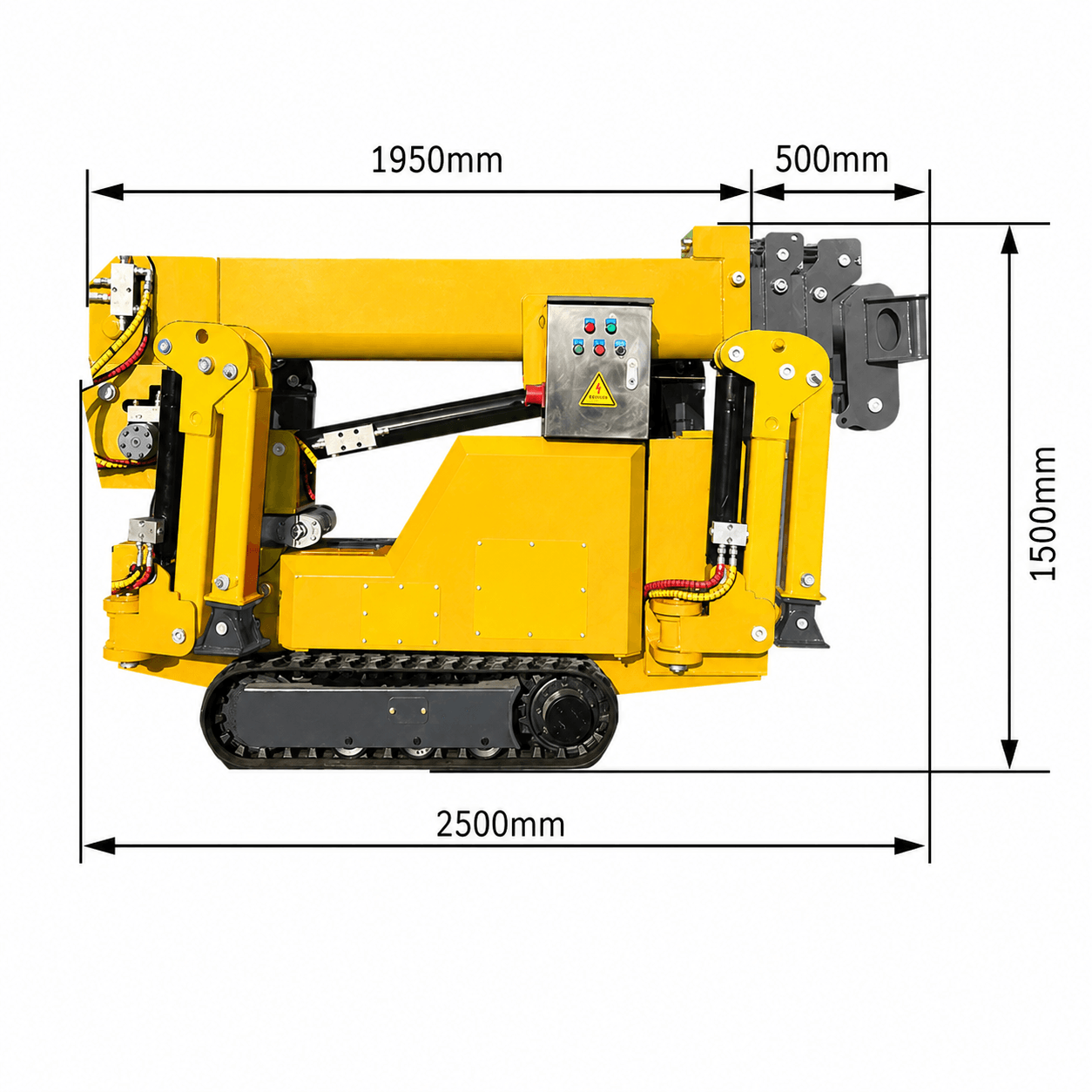

Measuring only 2,500 mm long, 650 mm wide and 1,500 mm high in its transport configuration, the WPS-150 can access locations where conventional mobile cranes cannot operate.
The compact crawler chassis allows the machine to pass through narrow entrances and restricted work areas. Once positioned, four articulated outriggers extend to create a wide and stable spider-style lifting platform.
Its combination of compact access, hydraulic crawler travel and controlled lifting performance makes the WPS-150 ideal for construction, glazing, machinery installation, building maintenance and specialised material handling.
Four-section telescopic boom
The WPS-150 features a hydraulically operated four-section telescopic boom with a maximum stated length of 6.5 metres.
A boom elevation range of 0-78 degrees provides excellent positioning flexibility, while continuous 360-degree rotation allows loads to be placed around the crane without repeatedly repositioning the tracked chassis.
Key lifting capabilities include:
- Maximum rated lifting capacity of 1,500 kg
- Maximum working radius of 6 metres
- Maximum stated lifting height of 6.5 metres
- Four-section hydraulic telescopic boom
- Continuous 360-degree rotation
- Hydraulic boom extension and elevation
- Adjustable hook speed from 0-8 metres per minute
- Four-part steel wire-rope reeving
The 1,500 kg rating applies only under the corresponding short-radius configuration. Available capacity reduces as boom length and working radius increase.
Rated-capacity and torque-limiting system
A rated-capacity and torque-limiting system is included as standard.
The system continually monitors the crane’s operating geometry and load condition. The colour display provides the operator with important information including boom position, working radius and load status.
Audible and visual warnings alert the operator as the crane approaches its programmed lifting limit. Where designed into the system, unsafe crane movements are restricted to help prevent operation outside the approved capacity envelope.
The torque limiter assists the operator but does not replace the crane’s rated-capacity chart, lift planning or appropriate operator competency.
Screen-equipped proportional remote control
The Wild Imports WPS-150 includes proportional wireless remote control with an integrated colour information screen.
The remote allows the operator to select a suitable viewing position around the crane and suspended load, improving visibility during lifting and final placement.
The controller combines proportional function switches with live crane information, providing smoother control and improved awareness compared with a basic remote-control system.
Manual machine-mounted controls remain available as a backup operating system.
Outrigger lift alarm
The WPS-150 is fitted with an outrigger lift alarm as standard.
The system monitors the crane’s support condition and warns the operator if an outrigger loses firm contact with its supporting surface during operation.
This provides an important early warning of changing ground support, incorrect setup or developing crane instability.
The alarm does not remove the requirement to:
- Assess ground-bearing capacity
- Correctly level the crane
- Fully position the outriggers
- Use suitable outrigger mats where required
- Monitor ground and support conditions throughout the lift
Three-wrap winch-rope protection
A three-wrap wire-rope protection system is included as standard.
This safety device monitors the amount of wire rope remaining on the winch drum during lowering. It provides a warning or lower-limit protection before the rope is paid out beyond the required minimum number of wraps.
Maintaining at least three wraps on the drum helps prevent the rope termination from being subjected to the full lifting load and reduces the risk of the rope being released from the winch drum.
Four-outrigger stability system
Four articulated outriggers transform the compact crawler crane into a wide and stable lifting platform.
The supplier specifies a maximum deployed footprint of approximately:
- 3,600 mm longitudinal spread
- 3,400 mm front spread
- 3,400 mm rear spread
Hydraulic deployment provides efficient setup, while manually adjustable screw-type feet allow final positioning and levelling.
Suitable outrigger mats or engineered support must be used where required by the supporting surface and planned lift.
Hydraulic crawler undercarriage
The compact hydraulic crawler drive provides controlled machine travel across suitable prepared surfaces.
Its 650 mm overall width allows access through narrow areas, while the 180 mm rubber tracks distribute the crane’s approximately 1,700 kg operating weight across a larger ground-contact area.
Travel specifications include:
- Hydraulic crawler drive
- Rubber tracks
- Maximum travel speed of 2.5 km/h
- Track width of 180 mm
- Stated travelling gradeability of 25 degrees or 36%
The gradeability figure applies to machine travel only. Lifting operations must be performed on an appropriately assessed, supported and levelled surface with the outriggers correctly deployed.
Choice of diesel or petrol power
Wild Imports offers the WPS-150 with a choice of two engine configurations at the same price.
Koop diesel
The Koop KD1100F provides compact diesel performance suited to commercial lifting applications.
- Engine: Koop KD1100F
- Fuel: Diesel
- Configuration: Single-cylinder, air-cooled
- Stated output: 9.5 kW
- Starting: Electric start
Briggs & Stratton petrol
The Briggs & Stratton 25T2-series engine provides recognised commercial petrol power with straightforward servicing and parts support.
- Engine: Briggs & Stratton 25T2 series
- Fuel: Petrol
- Displacement: 420cc
- Stated output: 9.9 kW
- Starting: Electric with recoil backup, subject to final engine configuration
Customers can select the engine best suited to their operating requirements without changing the advertised machine price.
Ideal applications
The WPS-150 is suitable for:
- Glass and window installation
- Steel and structural component placement
- Machinery installation and relocation
- HVAC and mechanical equipment handling
- Workshop and industrial maintenance
- Building and roof maintenance
- Construction and renovation
- Stone, panel and benchtop installation
- Utility and substation maintenance
- Restricted-access material handling
- Indoor lifting, subject to floor-capacity assessment
Wild Imports standard configuration
Every WPS-150 is supplied with:
- Choice of Koop diesel or Briggs & Stratton petrol engine
- Four-section telescopic hydraulic boom
- Hydraulic winch
- 8 mm × 45 m steel wire rope
- Four-part rope reeving
- Three-wrap winch-rope protection system
- Lifting hook with safety latch
- Continuous 360-degree slewing system
- Slewing brake
- Winch brake
- Rated-capacity and torque-limiting system
- Crane-mounted colour safe-load display
- Proportional wireless remote control
- Integrated remote-control information screen
- Manual backup operating controls
- Outrigger lift alarm
- Audible and visual safety warnings
- Four articulated hydraulic outriggers
- Manually adjustable outrigger feet
- Hydraulic crawler drive
- Black rubber tracks
- Emergency-stop controls
- 12V electrical system
- English operator and maintenance manuals
- English safety labels
- Permanent machine data plate
- Rated-capacity charts
- Spare filters
- Basic service toolkit
Safety and Australian operation
The WPS-150 is professional lifting equipment and must be commissioned, inspected, maintained and operated in accordance with:
- The manufacturer’s instructions
- The supplied rated-capacity charts
- Applicable Australian workplace requirements
- Operator licensing requirements
- Site-specific lift planning
- Ground-bearing assessments
- Inspection and maintenance schedules
Depending on the jurisdiction and lifting task, operation may require an appropriate high-risk work licence. Dogging or rigging competency may also be required.
The complete Wild Imports safety package assists the operator but does not override the rated-capacity chart, safe setup procedures or the requirement for competent operation.
CE and Australian compliance
For Australian commercial supply, the crane will require appropriate English documentation, capacity charts, machine markings, safety information and verification of the supplied safety systems.
CE certification does not automatically establish Australian workplace compliance. The machine must still satisfy applicable Australian plant-safety obligations and be suitable for its intended use.
Important lifting-capacity notice
The stated 1,500 kg capacity is the crane’s maximum rated capacity and is available only under the corresponding short-radius boom configuration.
Lifting capacity reduces as:
- Working radius increases
- Boom length increases
- Boom angle changes
- Crane setup changes
- Ground and supporting conditions change

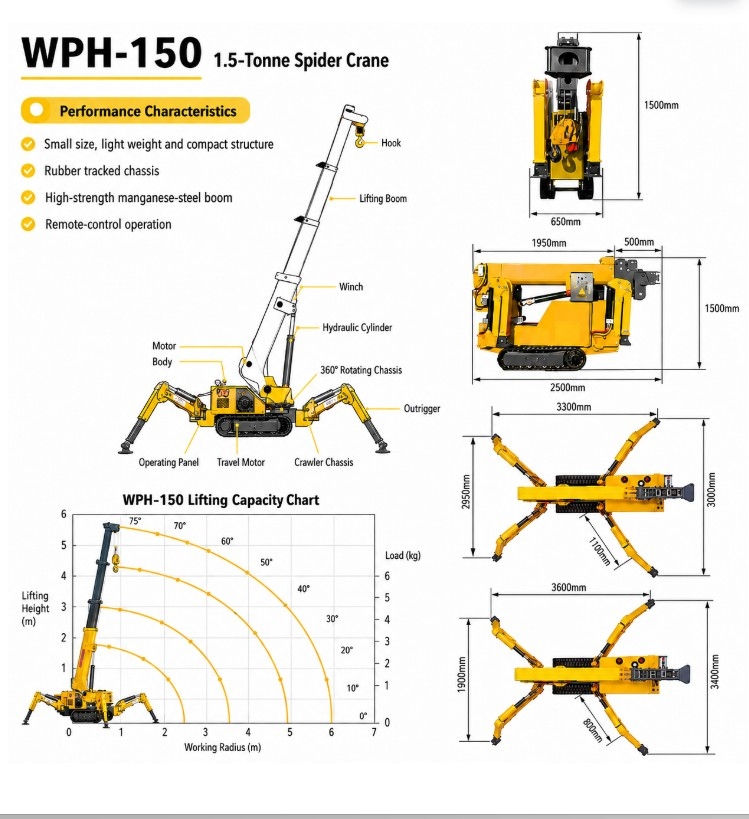

The supplied load chart indicates a capacity of approximately 250 kg at the maximum 6-metre working radius. Operators must always refer to the load chart for the crane’s exact configuration before performing a lift.
Why choose the WPS-150?
The WPS-150 gives contractors and specialist operators a fully equipped lifting solution without requiring them to add essential safety and control equipment after purchase.
With its narrow tracked chassis, 1.5-tonne maximum capacity, telescopic boom, proportional screen remote, torque limiter, outrigger alarm and winch-rope protection, the WPS-150 offers an outstanding combination of compact access, precise control and lifting capability.
Contact Wild Imports today for pricing, engine selection, availability and delivery information.
