WPS-510 Jaw Crusher
$28,500
✔ Sand & gravel yards
✔ Concrete Recycling
✔ Construction waste recycling
✔ Concrete Recycling
✔ Construction waste recycling

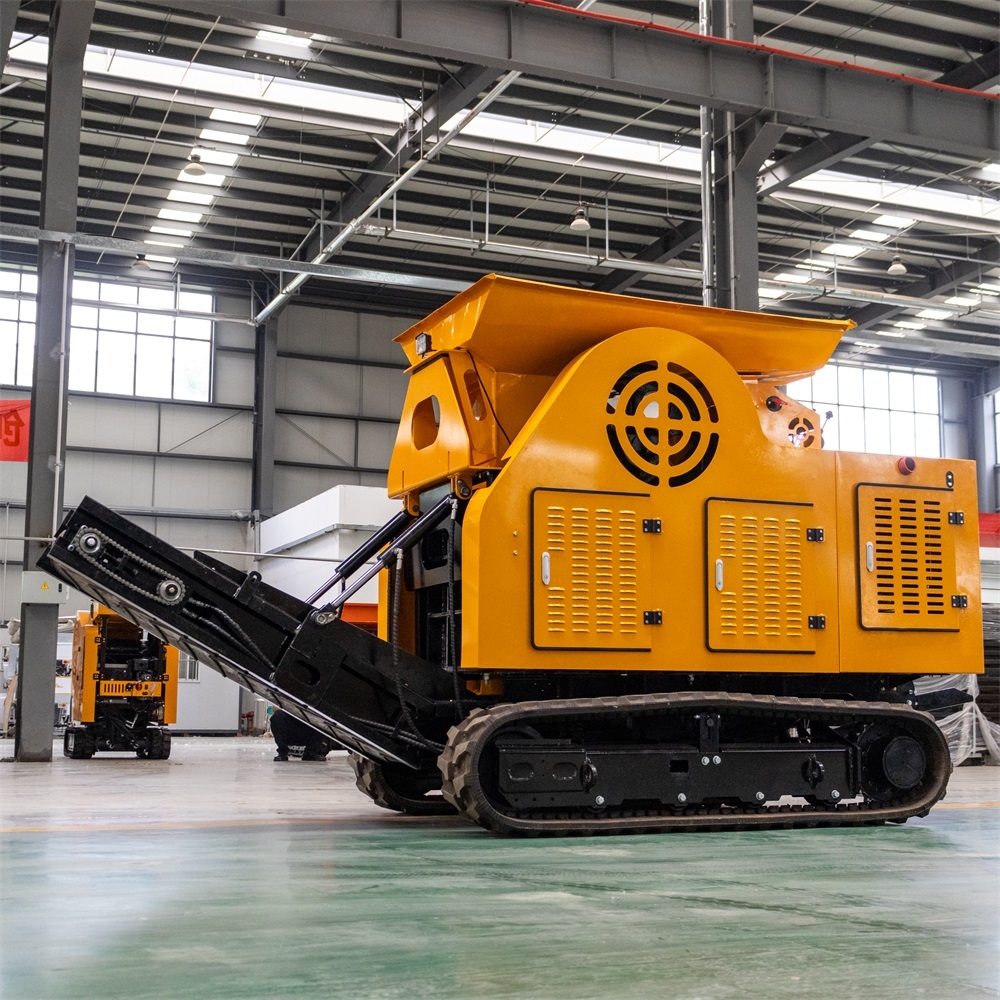

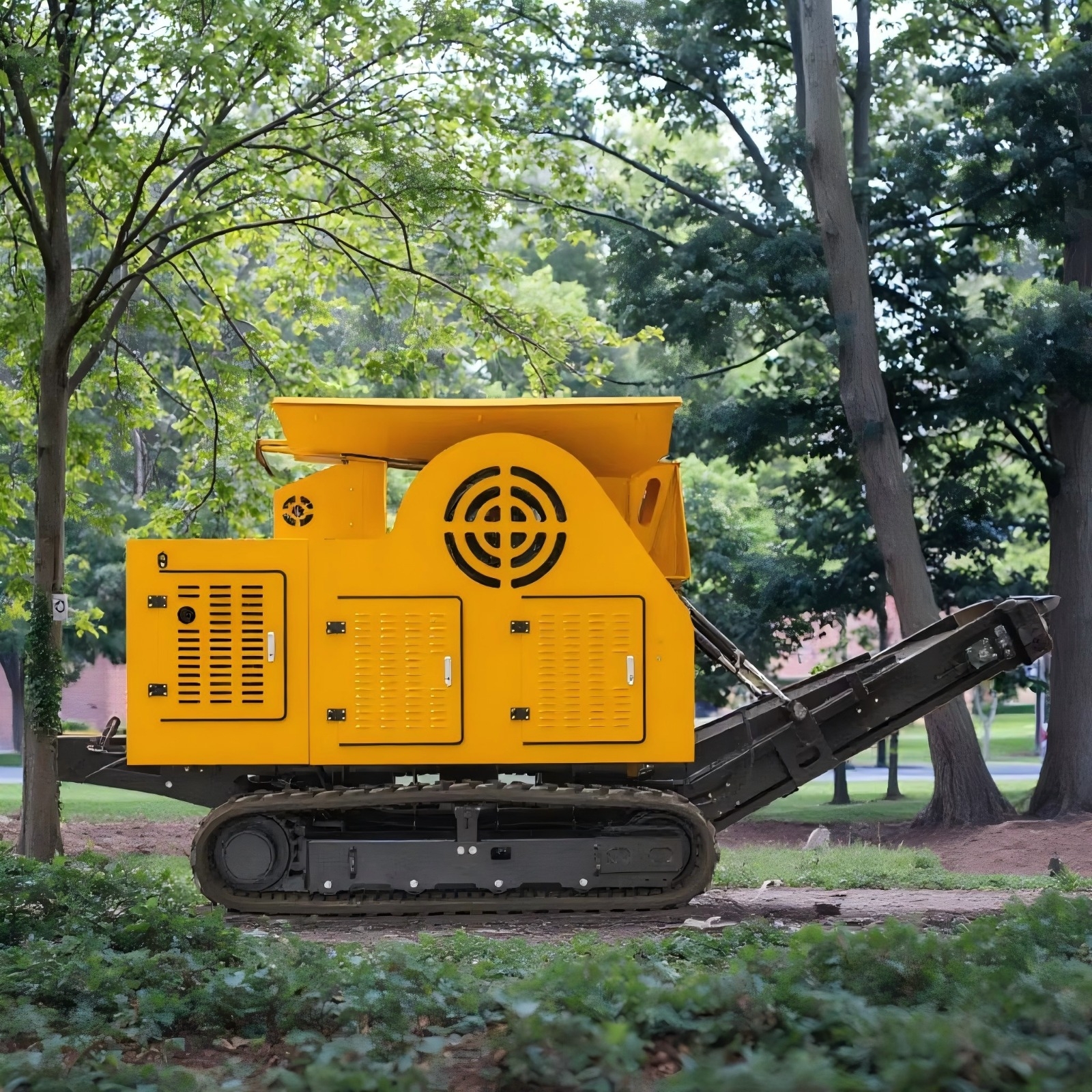

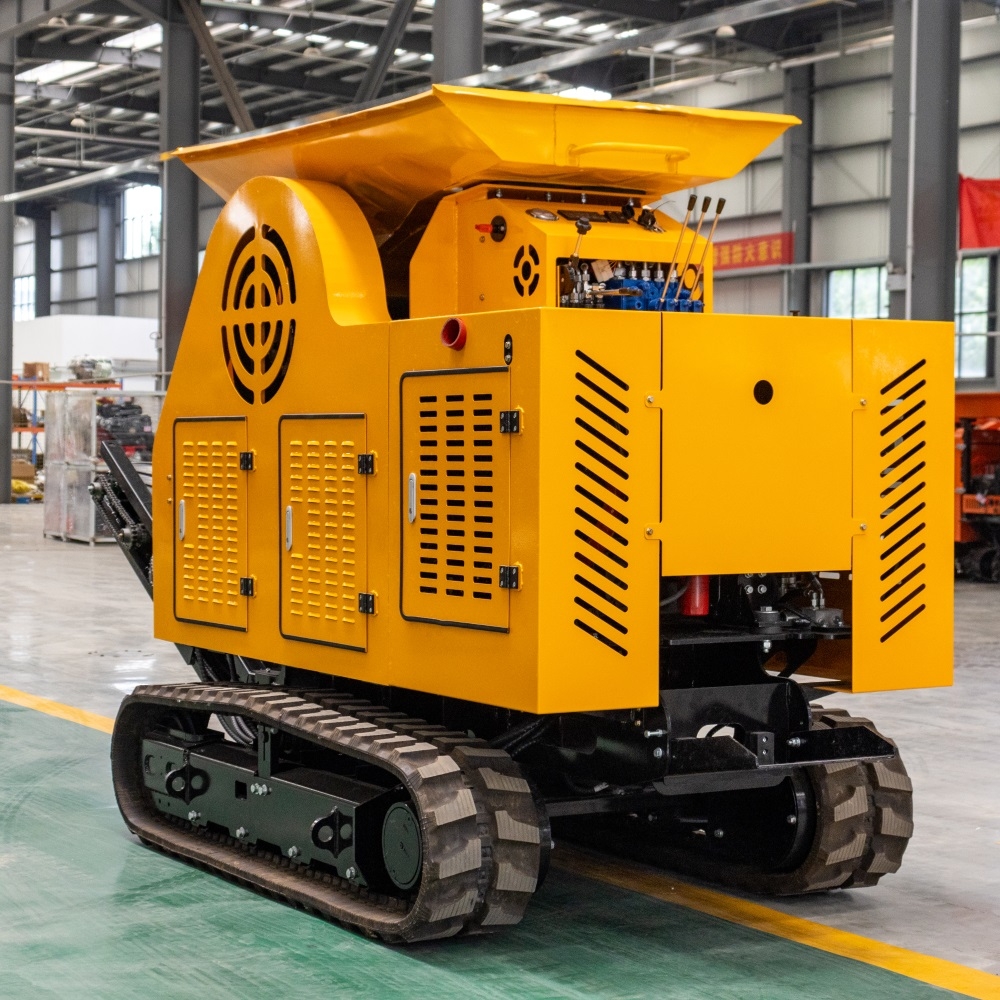

The Mini Crawler Mobile Jaw Crusher is a compact yet powerful crushing solution designed for versatility, mobility, and high performance. Ideal for sand and gravel yards, mining, construction waste recycling, and concrete mixing stations, this machine efficiently crushes a variety of materials into medium, this machine efficiently crushes a variety of materials into medium particle sizes in one pass.
Key Features:
- Compact & Mobile – Crawler track design allows easy maneuverability on-site.
- Versatile Crushing – Handles ores and materials up to 240 MPa compressive strength.
- High Productivity – Production capacity of 5–10 tons per hour.
- Strong Feed Capability – Feed opening size 250 × 400 mm, max feed size 230 × 380 mm.

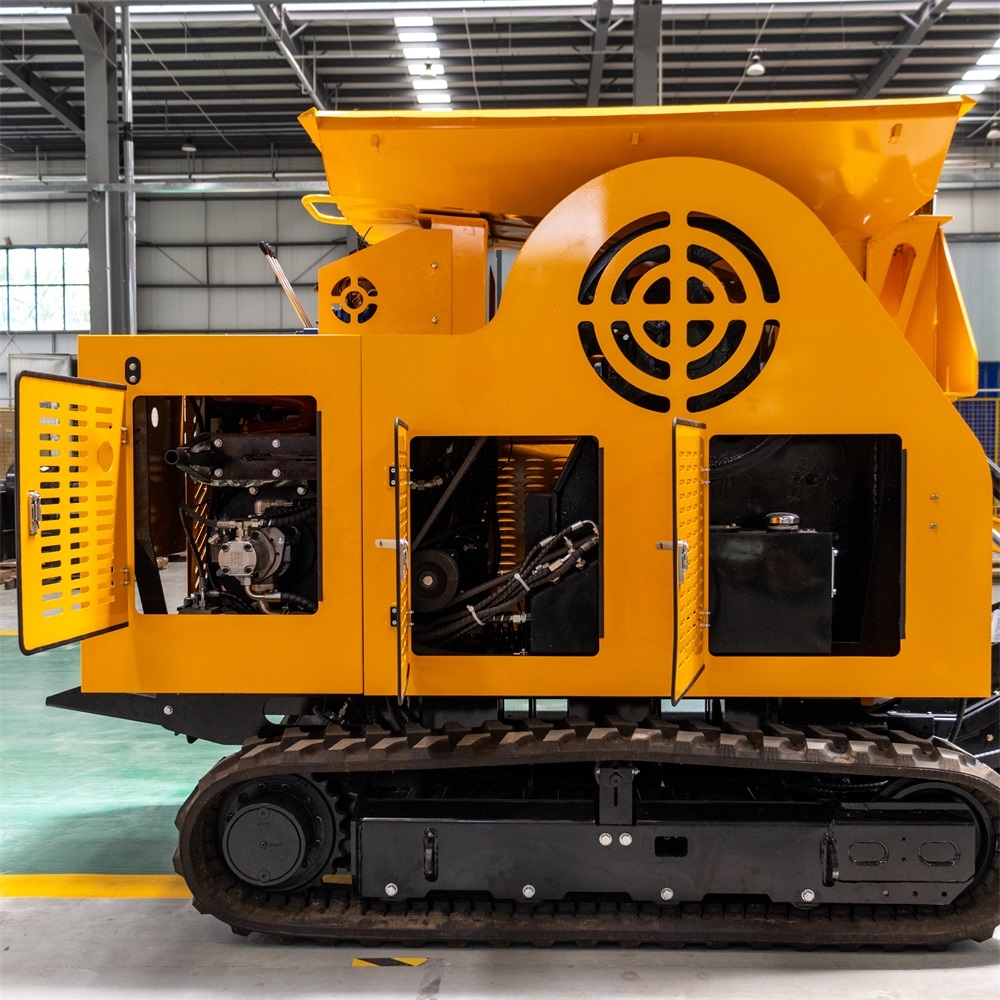

- Durable Construction – Equipped with hydraulic systems and grease-lubricated jaw mechanism for long service life.
- Reliable Power – Powered by a Laidong Dong 385 diesel engine (Euro V, 18.5 kW @ 2350 rpm).
Specifications:
- Working Size: 4050 × 1450 × 2050 mm
- Transport Size: 2750 × 1450 × 2050 mm
- Track Size: 300 × 86 × 52.5 mm rubber belt track
- Feed Opening: 250 × 400 mm
- Max Feed Size: 230 × 380 mm
- Bin Volume: 0.4 m³
- Discharge Size (Gravel Range): φ20–60 mm
- Pile Height: 950–1000 mm
- Production Capacity: 5–10 t/h
- Walking Speed: 0–4 km/h (hydraulic tracked)
- Conveyor Belt Width: 400 mm

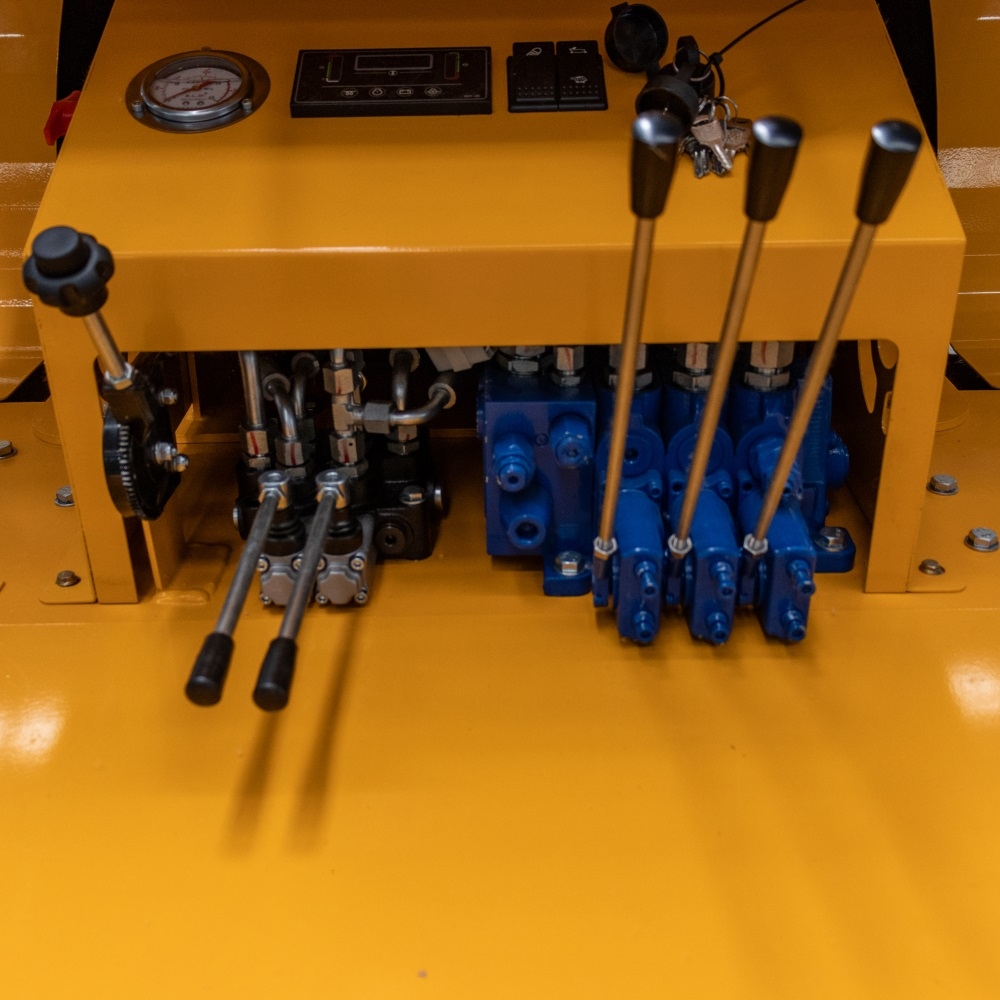

- Operation Mode: Manual hydraulic valve
- Walking Motor Model: Plunger motor FTM03C
- Hydraulic Pump: Plunger pump A10VSO28
- Fuel Tank Capacity: 50 L
- Hydraulic Oil Tank: 50 L (32#/46# oil)
- Lubrication: Grease system for jaw mechanism
- Engine: Laidong Dong 385, Euro V, 18.5 kW / 2350 rpm
