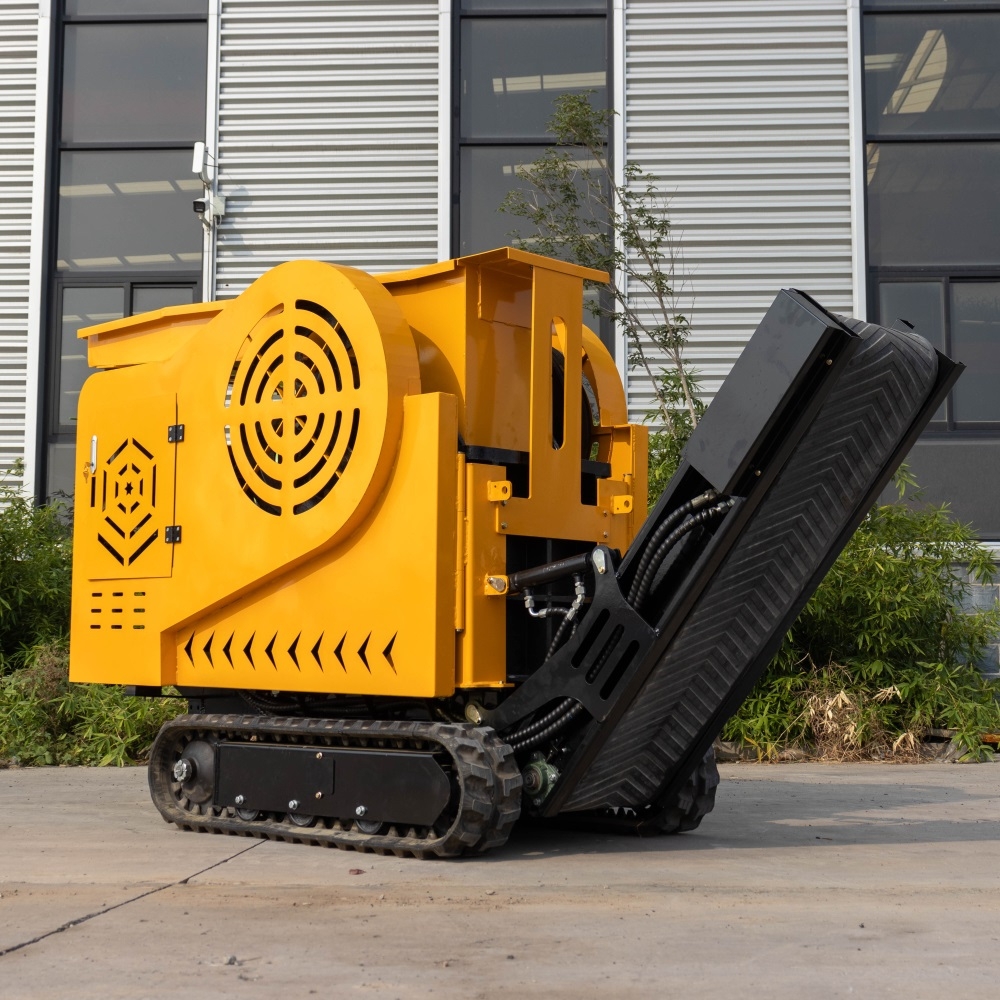

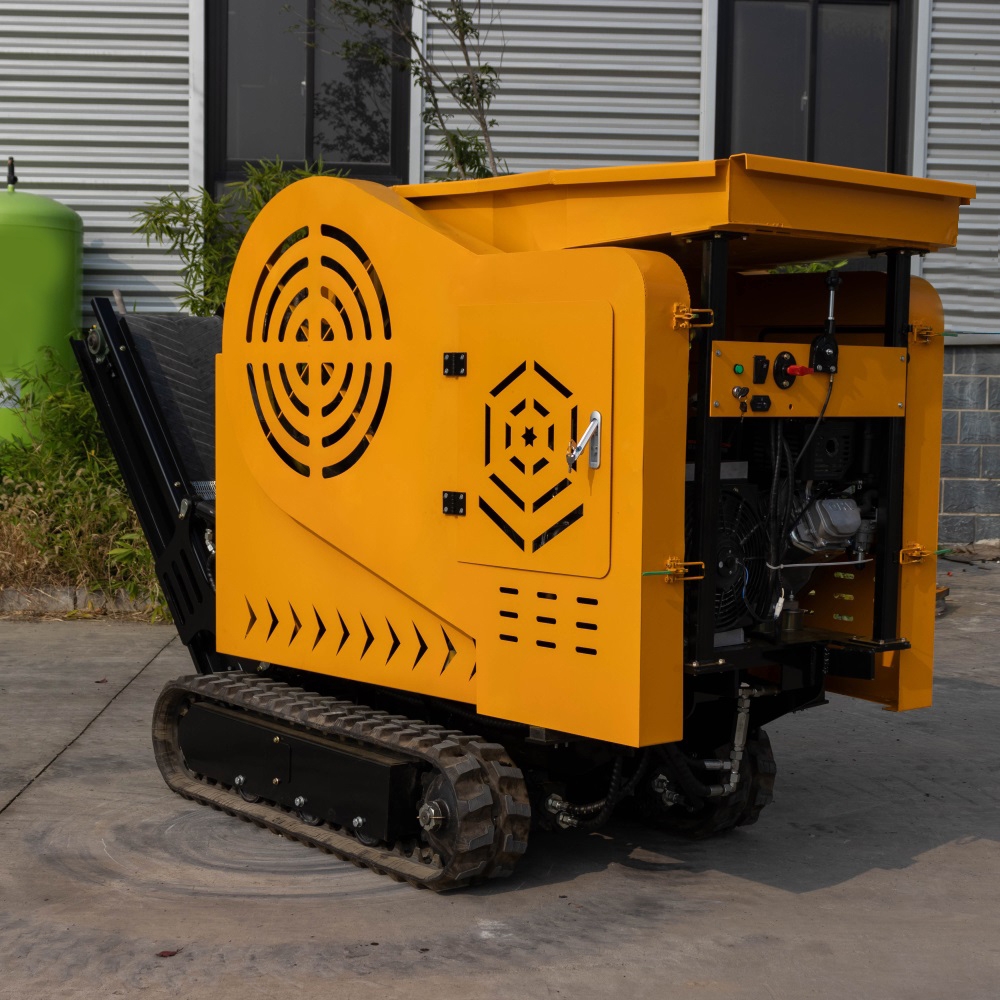

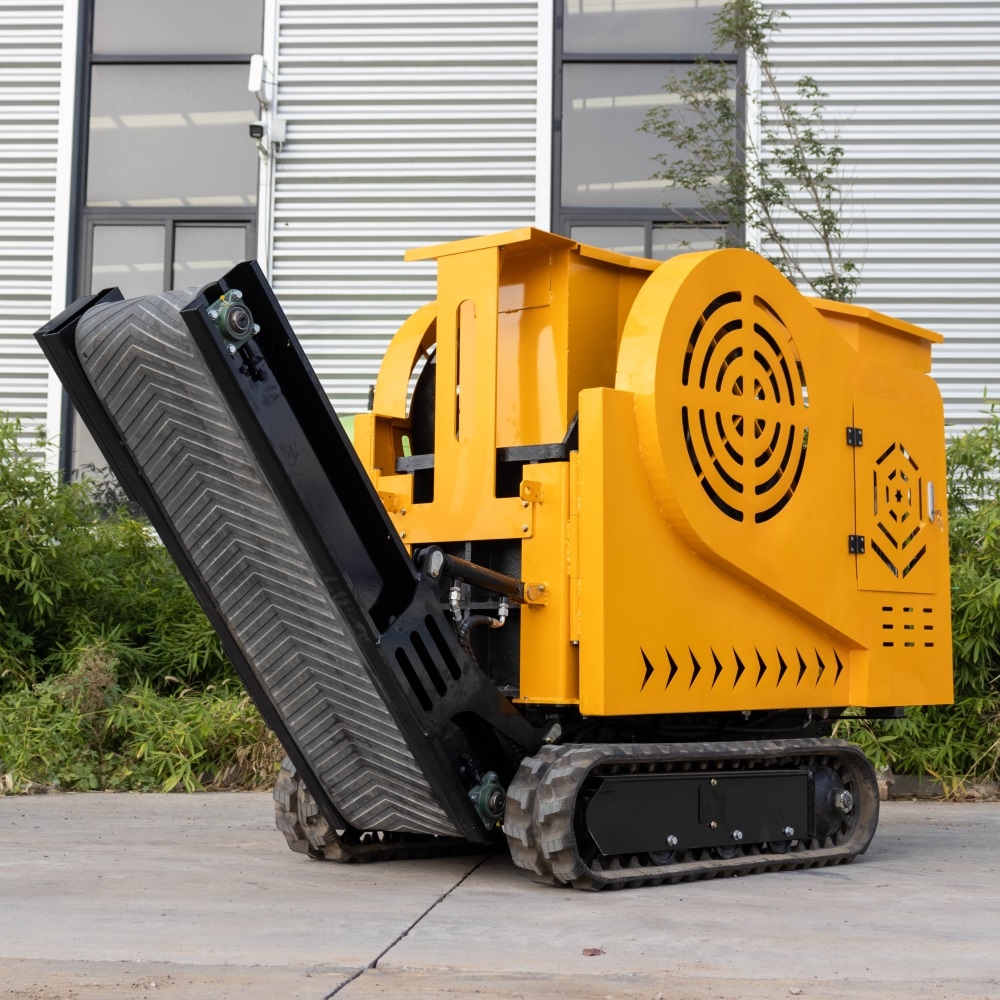

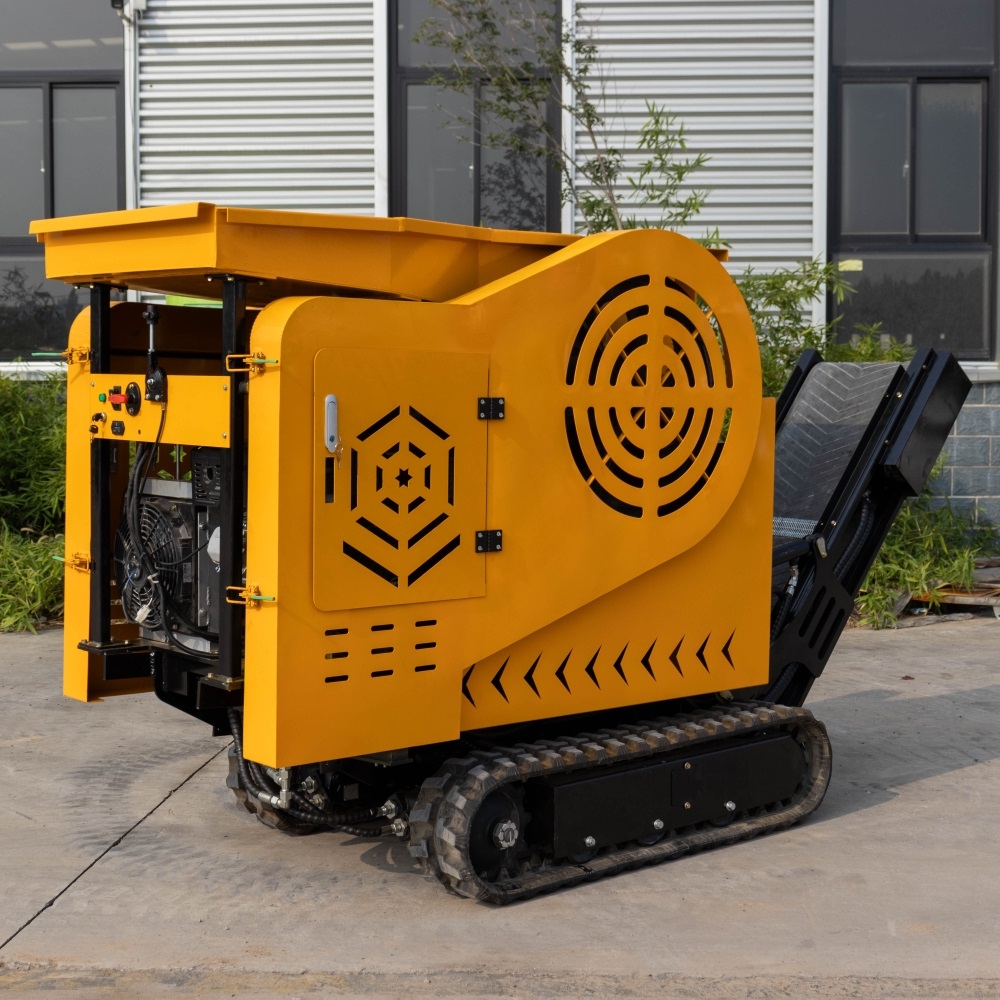

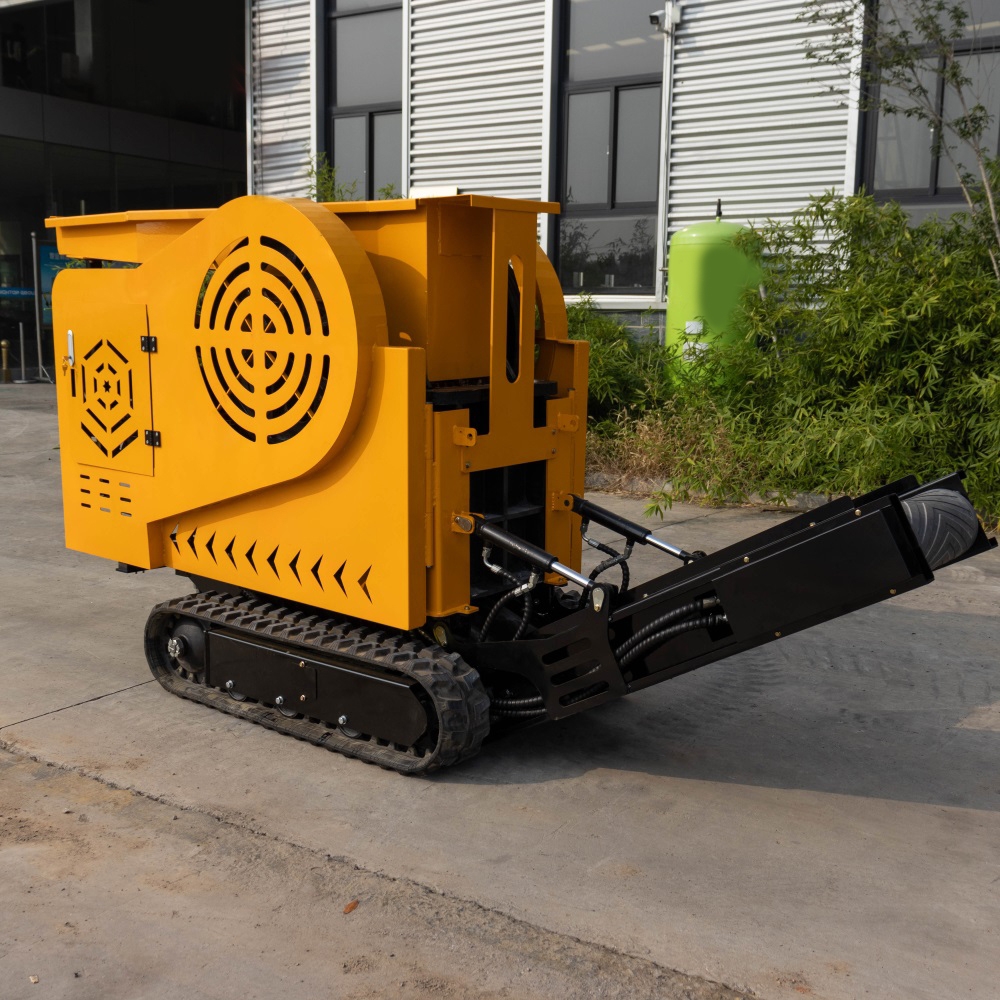

WPS-430 Jaw Crusher
$17,950
Gravel Crush Range: 15-50mm
Maximum Feed Size: 200mm
Conveyor Width: 400mm
Maximum Feed Size: 200mm
Conveyor Width: 400mm
The WPS-403 Crawler Jaw Crusher is a cutting-edge mobile crushing solution, designed to deliver exceptional performance. Built for rugged applications, it provides superior mobility, productivity, and reliability, making it the ideal choice for industries such as construction, and recycling. With its advanced technology, robust build, and ability to operate in the toughest terrains, the WPS-430 Jaw Crusher is engineered for businesses that require high-output, cost-effective, and versatile crushing capabilities.
Product Parameters:
Model | WPS-430 |
Working Size (mm) | 3,200 x 1,000 x 1,620mm |
Shipping Size (mm) | 2,100 x 1,000 x 1,750mm |
Track Type (mm) | 180 x 72 x 41mm |
Weight Wheel Diameter (mm) | 126mm |
Number of Wheels (groups) | 6 |
Feed Port Size (mm) | 220 x 350mm |
Maximum Feed Size (mm) | 200mm |
Track Specifications | Rubber Track |
Production Capacity (tons / hour) | 2-5T/h |
Vertical Plate Inner Width (mm) | 380mm |
Total Outer Width of Cover (mm) | 960mm |
Bunker Volume (m3) | 0.25m3 |
Stacking Height (mm) | 700-1,150mm |
Feed Conveyor (mm) | 1,500 x 500mm |
Gravel Range (mm) | 15 - 50mm |
Travel Speed (km/h) | 0-3 km/h |
Conveyor Belt Width (mm) | 400mm |
Dynamic System:
Model | WPS-430 |
Gasoline Engine Standard | Rato R500-V2-18HP |
Output Power (KW/ r/min) | 13KW / 3,600r/min |
Tank Capacity (L) | 6.5L |
Oil Type & Dosage:
Model | WPS-430 |
Fuel Tank Capacity (L) | 6.5L |
Oil Volume (L) | 1.0L |
Hydraulic Tank Volume (L) | 35L 32#/46 |
Operating Driving & Main Accessories Paramaters:
Model | WPS-430 |
Equipment Operation Mode | Manual Hydraulic Valve |
Walking Mode | Hydraulically Powered Track Type |
Traveling Motor Type | 6K-395 |
Continuous Torque | 850 |
Hydraulic Pump Specifications | PGP5108 |
Conveyor Motor Model | BMER-300 |
Conveyor Lifting Mode | Manual Operation of Hydraulic Lift |
Lubrication Method of Jaw-Breaking Mechanism | Grease |
Track Tightening Adjustment Method | Mechanical |
