WS-CPD15 Electric Stacker
$4,795
Load Capacity: 1,500kg
Lifting Height: 2-3 Metres
Power: 48V- 1500w
Lifting Height: 2-3 Metres
Power: 48V- 1500w
WS- PD15 Electric Stacker – 1.5T Capacity
Efficient. Compact. Reliable.
This Electric Stacker is your go-to solution for effortless indoor material handling. Engineered for smooth operation in confined spaces, this electric stacker is ideal for warehouses, loading docks, and small industrial environments.
Key Features
- High Performance: Equipped with a powerful 48V 1,500W drive motor and 48V 2,200W lifting oil pump for reliable and consistent operation.
- Compact Design: Slim 750mm width and single-chain gantry construction allow easy maneuverability in narrow aisles.
- Safety Focused: Comes with electronic braking, power-off brake, and emergency reverse direction features.
- Customizable Lift Height: Available in 2m and 3m lifting heights to suit various operational needs.
Specifications
Specification Details
Load Capacity: 1.5 Ton (1,500 kg)
Lifting Height: 2m / 3m
Machine Weight: 550 kg
Drive Motor Power: 48V 1,500W
Lifting Pump Power: 48V 2,200W
Battery: 48V 32Ah Lead-Acid
Controller Current: 45A (Discharge)

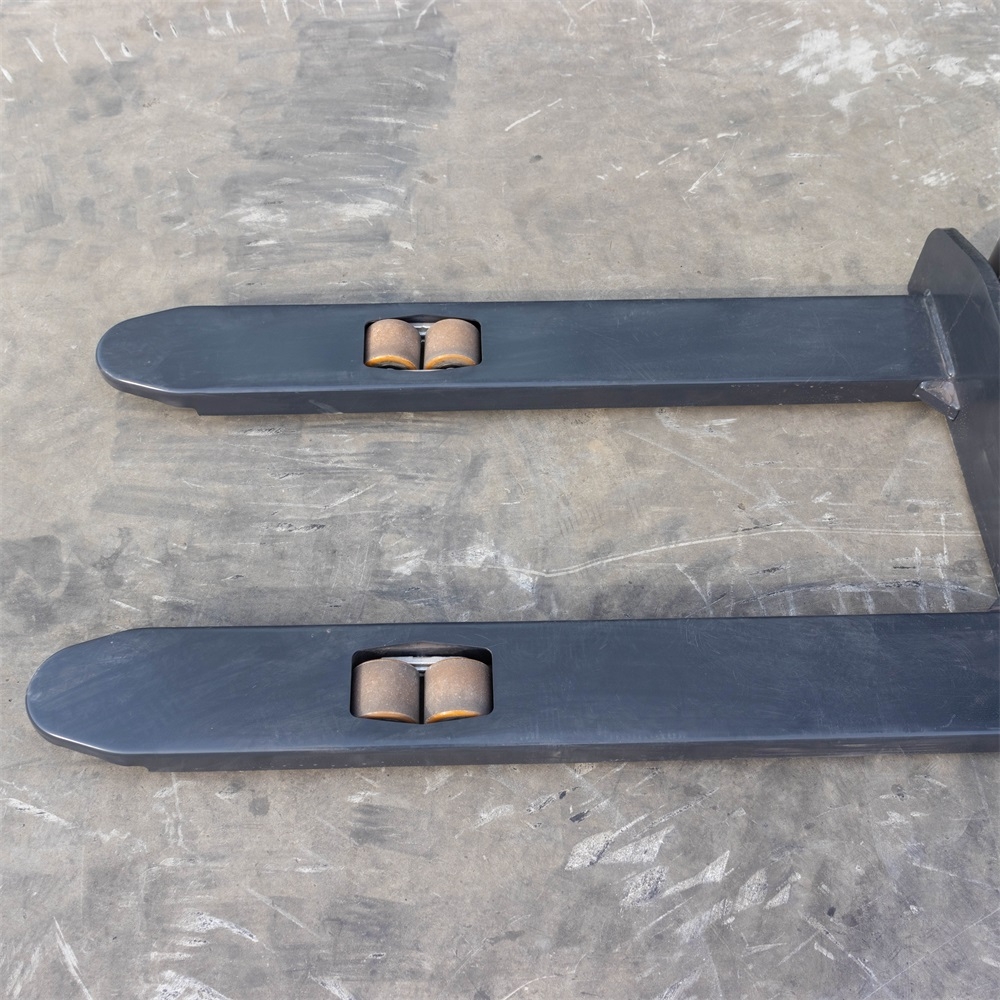

Fork Size: 50 x 160 x 1,200 mm
Min. Fork Height from Ground: 85 mm
Load Center Distance: 550 mm
Braking Method: Electronic Brake
Vehicle Dimensions (L x W): 2,150 mm x 750 mm
Door Frame Thickness: 8 mm

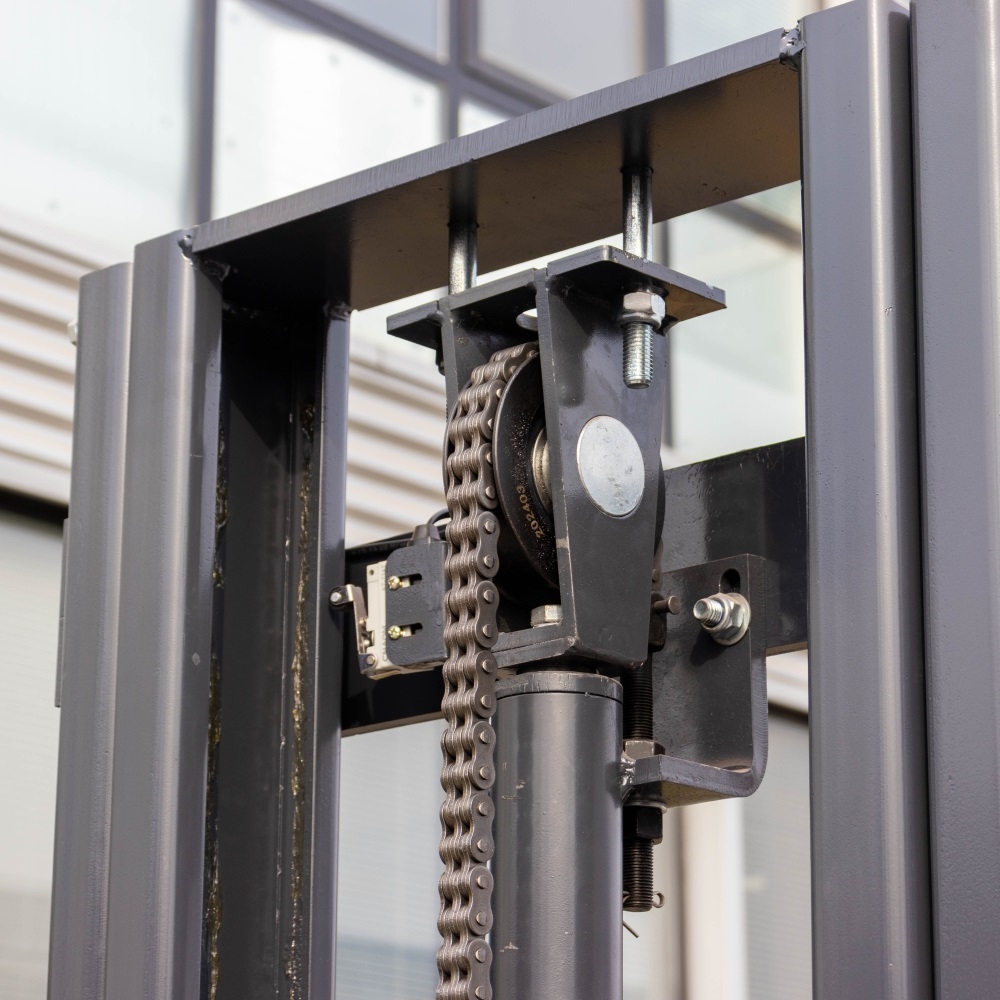

Mast Design: Single Chain Load-Bearing
Safety Functions: Emergency Reverse, Power-off Brake
