Wood Trommel Compact
$16,450
Processing Capacity, 5–20 m³/hr
Petrol engine Honda GX
Replaceable mesh/bar screen
Petrol engine Honda GX
Replaceable mesh/bar screen

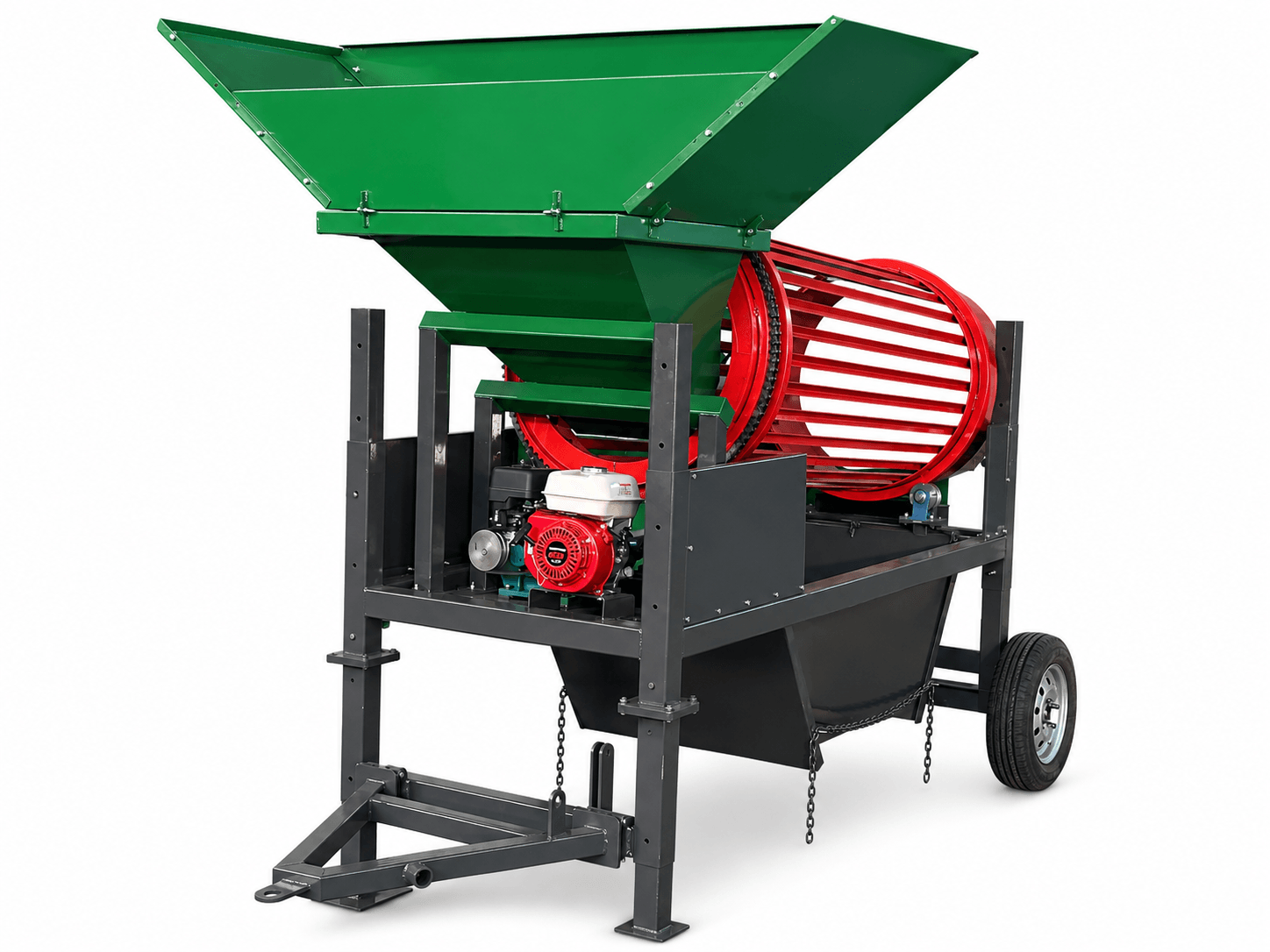

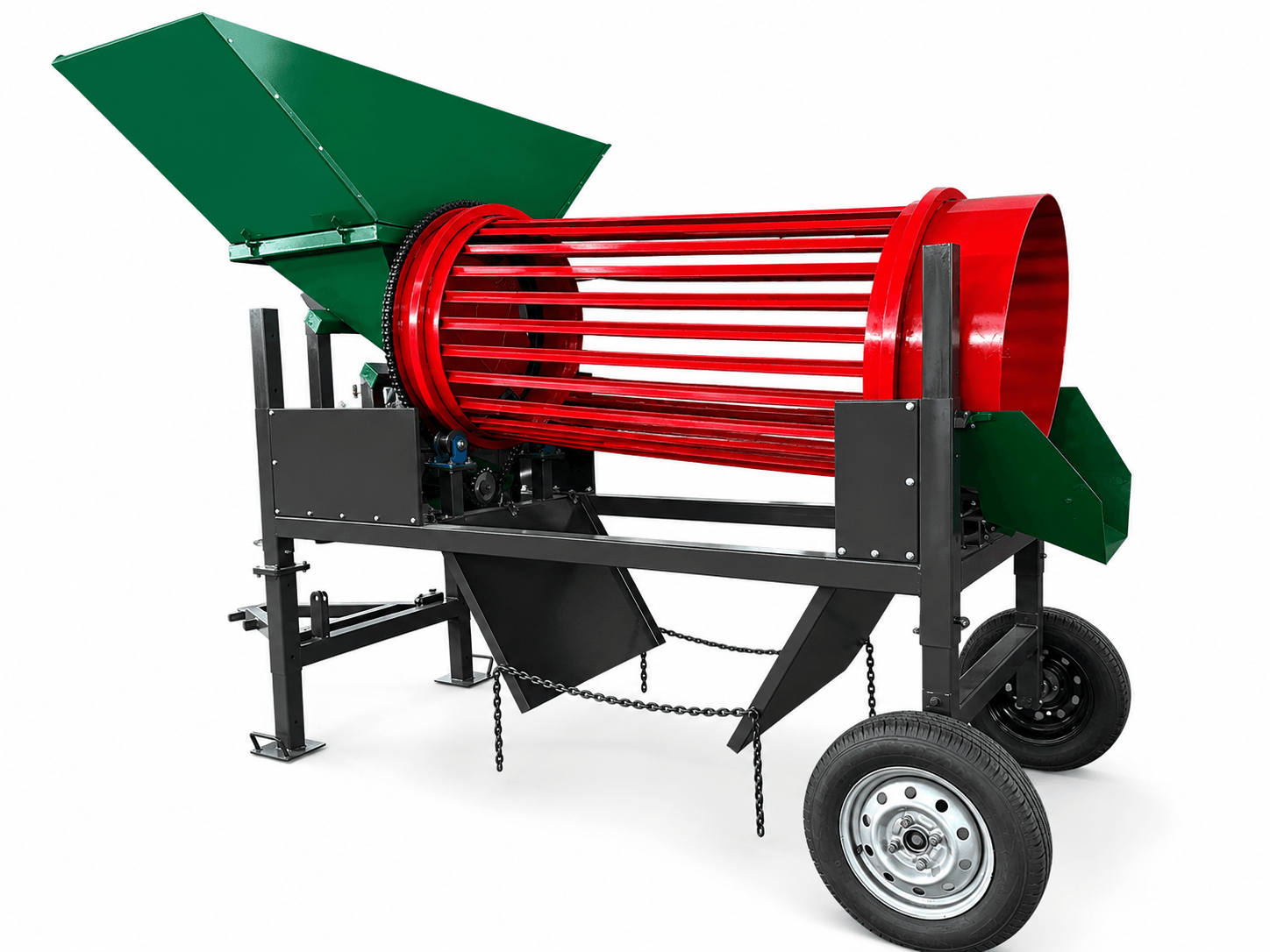

The 820 Firewood Trommel Screen is a compact, towable rotary screening system engineered for firewood processors, timber yards, biomass producers and landscape suppliers. The rotating drum removes bark, sawdust, fines and loose debris from split firewood, producing a cleaner, higher-value product while reducing manual handling. The machine features a robust steel frame, reduction gearbox drive system and inclined rotating drum designed for continuous operation. Its compact footprint makes it suitable for small to medium firewood operations.
820 Firewood Trommel Screen
Drum & Screening System
Diameter 800 mm
Drum Length 2,000 mm
Screening Area Approx. 5.0 m²
Drum Type Rotary Trommel
Application Firewood cleaning and grading
Screen Type Replaceable mesh/bar screen
Overall Dimensions
Overall Length 3,602 mm
Overall Width 1,040 mm
Overall Height 2,432 mm
Drum Centre Height 820 mm
Drawbar Length Approx. 780 mm
Capacity
Processing Capacity, 5–20 m³/hr
Recommended Material, Split firewood, kindling, biomass fuel
Feed Method, Manual or conveyor feed
Weight
Operating Weight Approximately 750 kg
Construction Features
- Heavy-duty welded steel chassis
- Towable drawbar design
- Gear reduction drive system
- Petrol engine Honda GX
- Adjustable drum angle
- Replaceable screening drum
- Low maintenance roller support system
- Suitable for outdoor timber yard operation
Gasoline engine
- Reduction gearbox
- Feed hopper
- Drive assembly
- Drum body
- Support rollers
- Tail discharge section
- Trailer drawbar
820 Firewood Trommel Screen
The 820 Firewood Trommel Screen is a compact, high-efficiency firewood cleaning system designed to remove bark, chips, dust and fines from split firewood before sale or packaging. Featuring an 800 mm diameter by 2,000 mm long rotating drum, the 820 delivers consistent cleaning performance while maintaining high throughput for commercial firewood operations.
Its rugged steel construction, towable chassis and low-maintenance roller drive system make it ideal for firewood processors, biomass fuel producers and timber yards looking to improve product quality and increase market value.
With capacities of up to 20 cubic metres per hour and a lightweight transportable design, the 820 provides an affordable and efficient solution for producing clean, premium-grade firewood.
Applications
- Firewood processing
- Biomass fuel production
- Kindling separation
- Bark removal
- Timber yard clean-up
- Wood chip screening
Benefits
✔ Removes bark and fines from firewood
✔ Increases product value and presentation
✔ Compact and transportable design
✔ Low maintenance operation
✔ Heavy-duty steel construction
✔ Suitable for commercial firewood producers
