WPS-30 3 Ton Excavator
$33,887
Operation Weight: 3,000kg
Rated Power: 19kw@2500rpm
Rated Power: 19kw@2500rpm

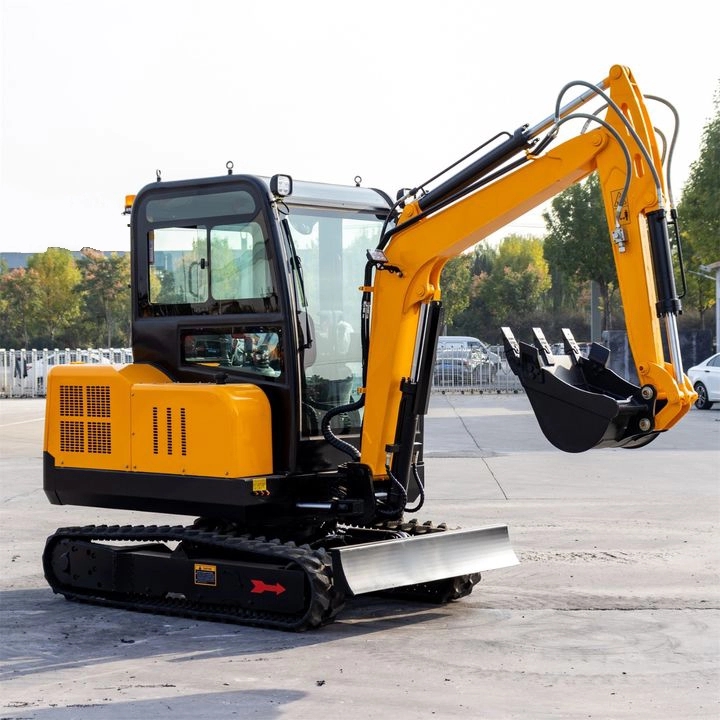

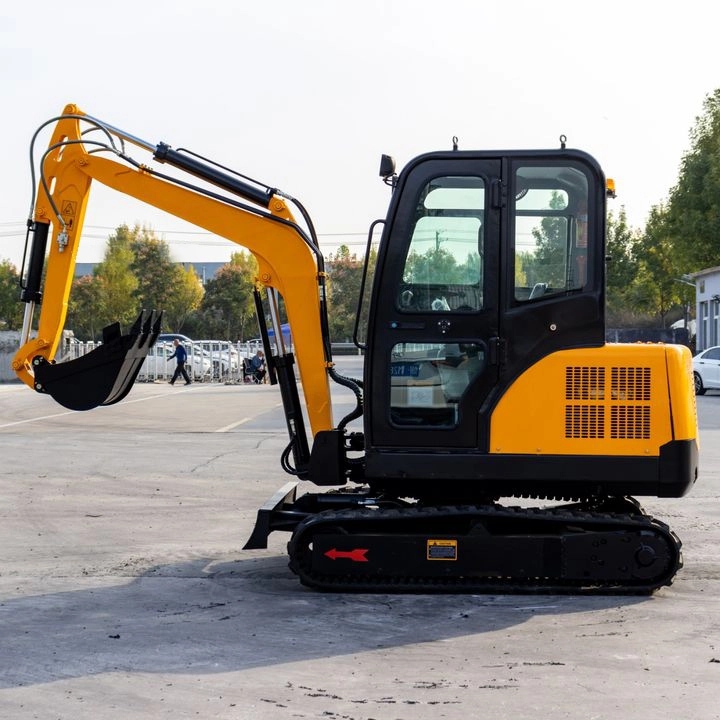

The WPS-30 Mini Excavator combines compact design with powerful performance, making it suitable for confined spaces such as backyards, gardens, alleys, and narrow driveways. Its high fuel efficiency and low consumption contribute to energy savings and environmental protection. It comes Standard with a Swing Boom, 250 & 500mm Buckets With Teeth, a 1,000mm Mud Bucket, a Ripper, and a Mechanical Quick Hitch.
The WPS-30 Excavator is a versatile and efficient machine designed for various excavation tasks.
Overview:
The WPS-30 Mini Excavator combines compact design with powerful performance, making it suitable for operations in confined spaces such as backyards, gardens, alleys, and narrow driveways. Its high fuel efficiency and low consumption contribute to energy savings and environmental protection.
Key Features:
- High Fuel Efficiency: Equipped with a robust engine that delivers substantial power while maintaining low fuel consumption.
- Advanced Hydraulic System: Features a fully imported hydraulic system for smooth and efficient operation.
- Multiple Attachments Available: Compatible with various attachments such as hydraulic quick hitch, narrow bucket, hammer, auger, tilt bucket, ripper, rake, rotary grapple, tree shears, and lawn mower, allowing for diverse applications.
Specifications:
- Dimensions:
- Overall Length: 4,180 mm
- Overall Width: 1,500 mm
- Overall Height: 2,128 mm
- Ground Clearance: 458 mm
- Weight:
- Total Weight: 3,000 kg
- Performance:
- Maximum Digging Height: 3,900 mm
- Maximum Digging Depth: 2,500 mm
- Maximum Digging Radius: 4,040 mm
- Maximum Dumping Height: 2,600 mm
- Slewing Angle: 360°
- Gradeability: 25°
- Travel Speed: 2.6 km/h
- Bucket Capacity: 0.095 m³
- Bucket Width: 500 mm
- Swing Angle of Boom: 70° (Left) / 50° (Right)
- Engine Options:
- Standard Engine: Laidong 385, three-cylinder direct injection, rated power 19 kW at 2250 RPM.
- Optional Engine: Kubota D1105, rated power 14.1 kW (20 HP) at 2000 RPM.
- Hydraulic System:
- Main Pump: Triple Pump
- Main Pressure: 18 MPa
- Max RPM of the Pump: 2,500 r/min
- Pump Displacement: 28 ml/r
- Track System:
- Track Gauge: 1,150 mm
- Track Width: 250/260 mm
- Track Length (on ground): 2,300 mm
Applications:
The HT30 Mini Excavator is ideal for tasks such as trenching, landscaping, demolition, and material handling. Its compact size and powerful performance make it a preferred choice for construction projects in urban areas and other confined spaces.
Attachments:
To enhance its versatility, the WPS-30 can be equipped with various Additional attachments, including:
- Hydraulic Quick Hitch
- Narrow Bucket
- Hammer
- Auger
- Tilt Bucket
- Ripper
- Rake
- Rotary Grapple
- Tree Shears
- Lawn Mower
These attachments allow for quick and easy replacement, enabling the machine to perform a wide range of functions.
Conclusion:
The WPS-30 Mini Excavator offers a blend of compact design, powerful performance, and versatility. Its advanced features and compatibility with multiple attachments make it an excellent choice for various excavation and construction tasks.
