WPS-25 Excavator

$33,825 Inc GST
Operation Weight: 2,500kg
Bucket Capacity: 0.036m³
Rated Power: 14Kw
Request a quoteCall Ian on 0419 188 420

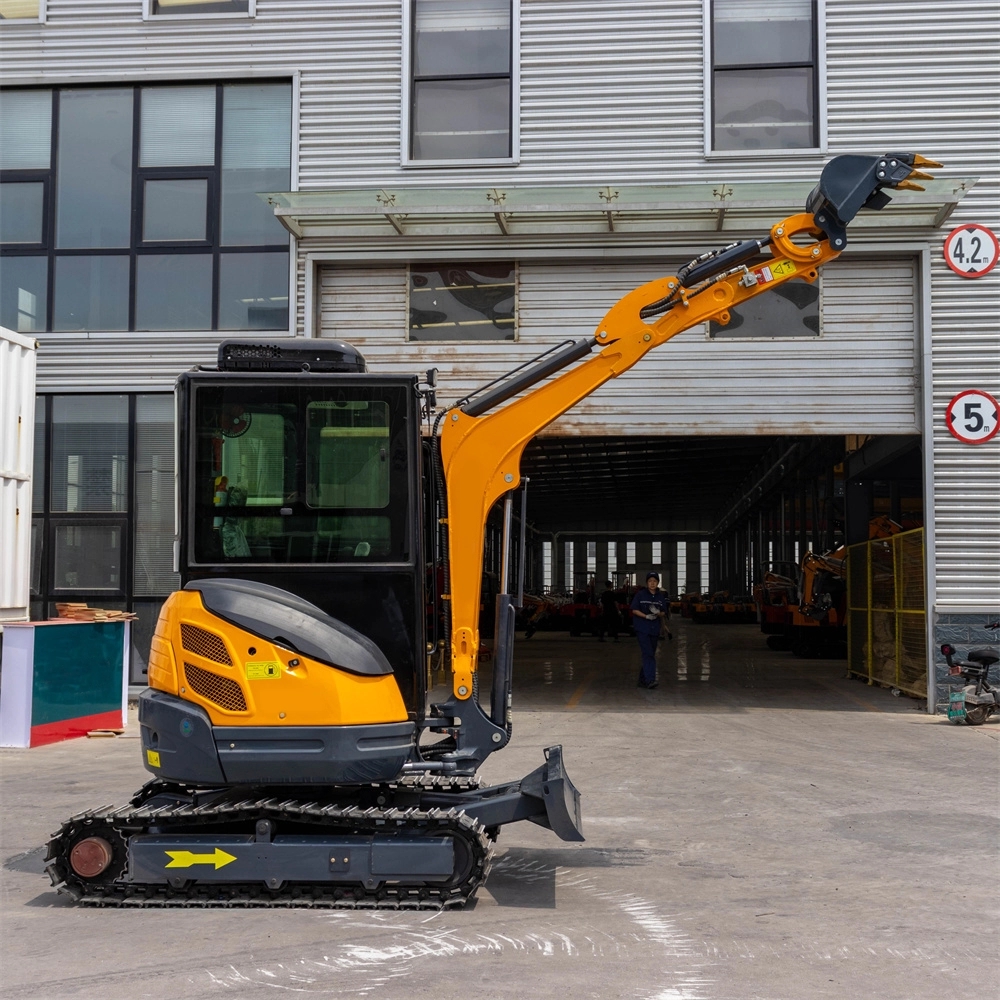

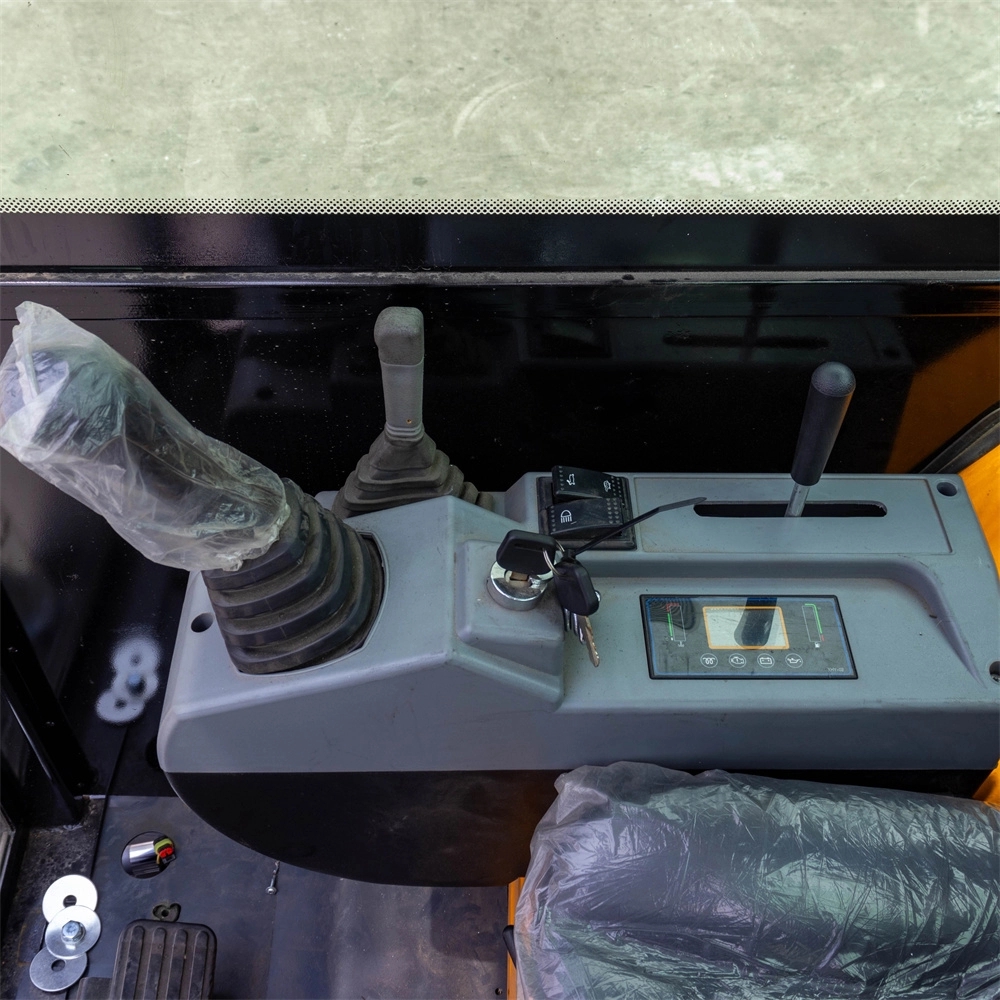

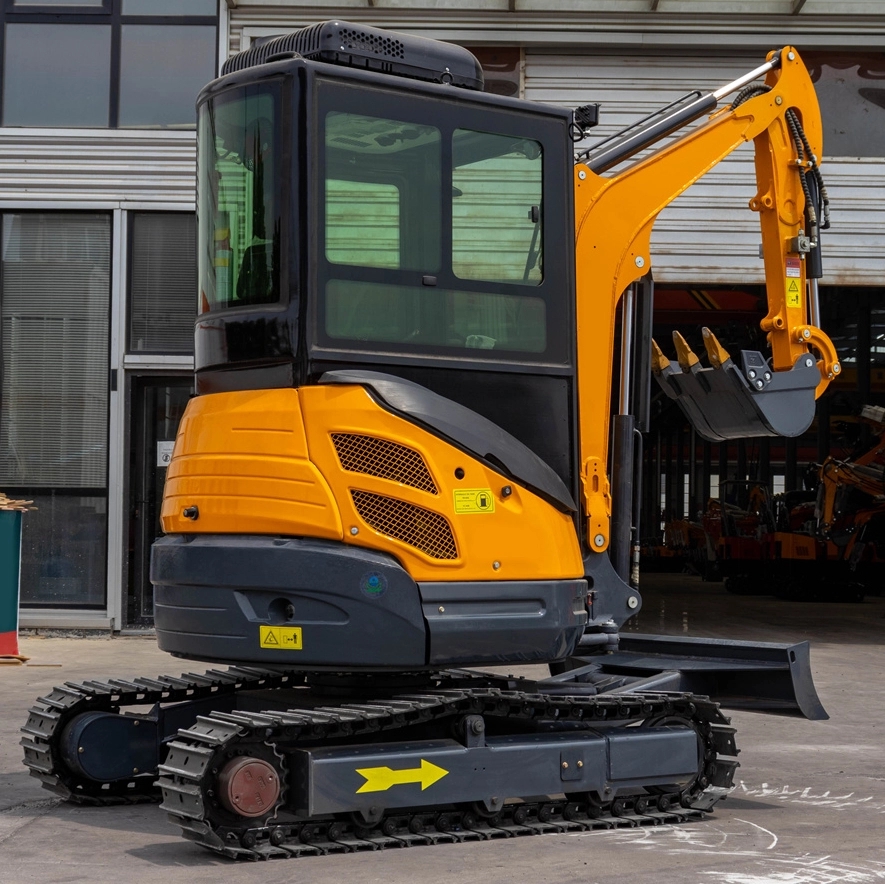

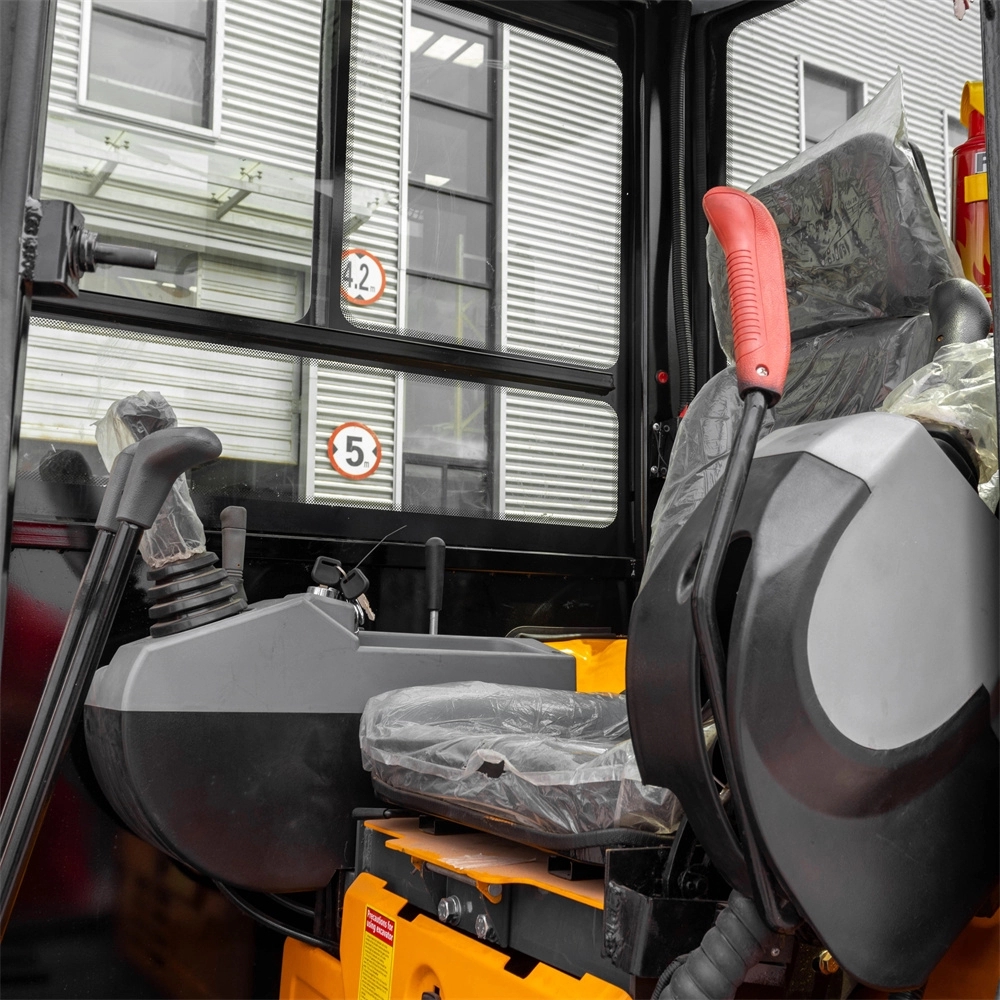

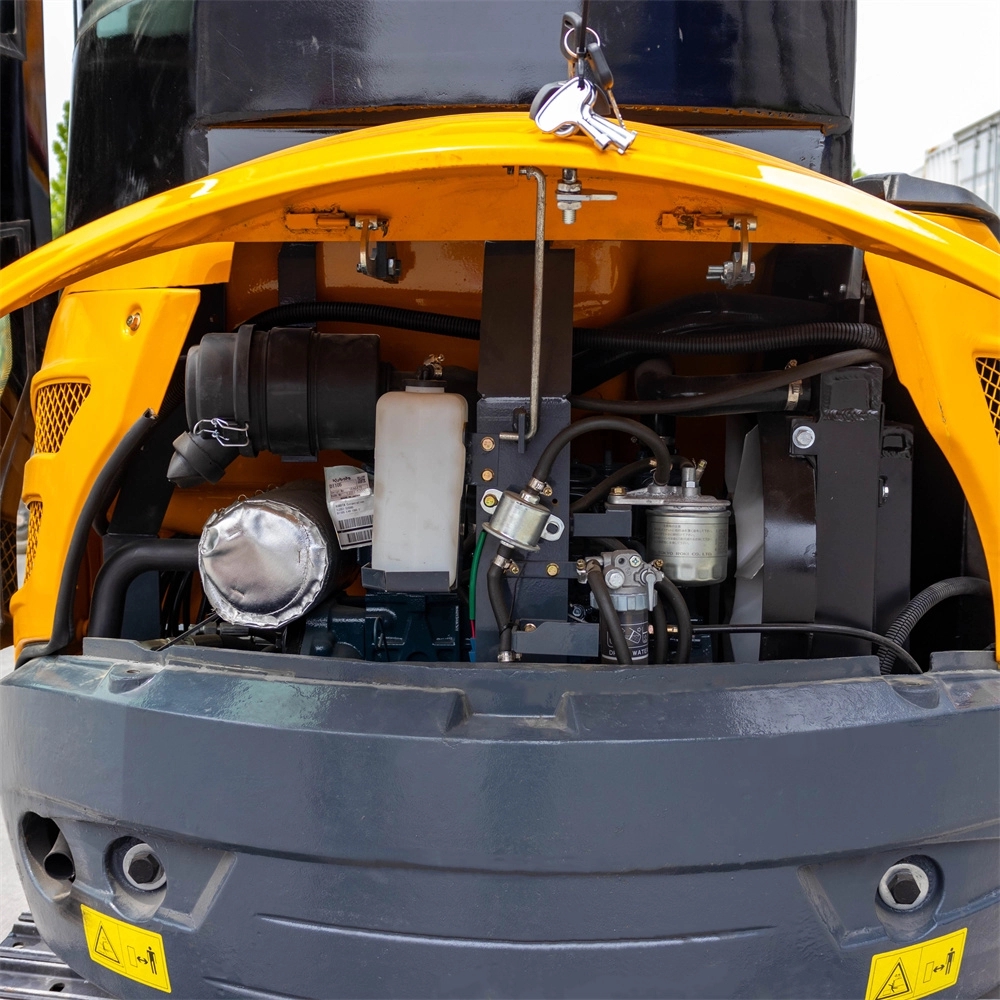

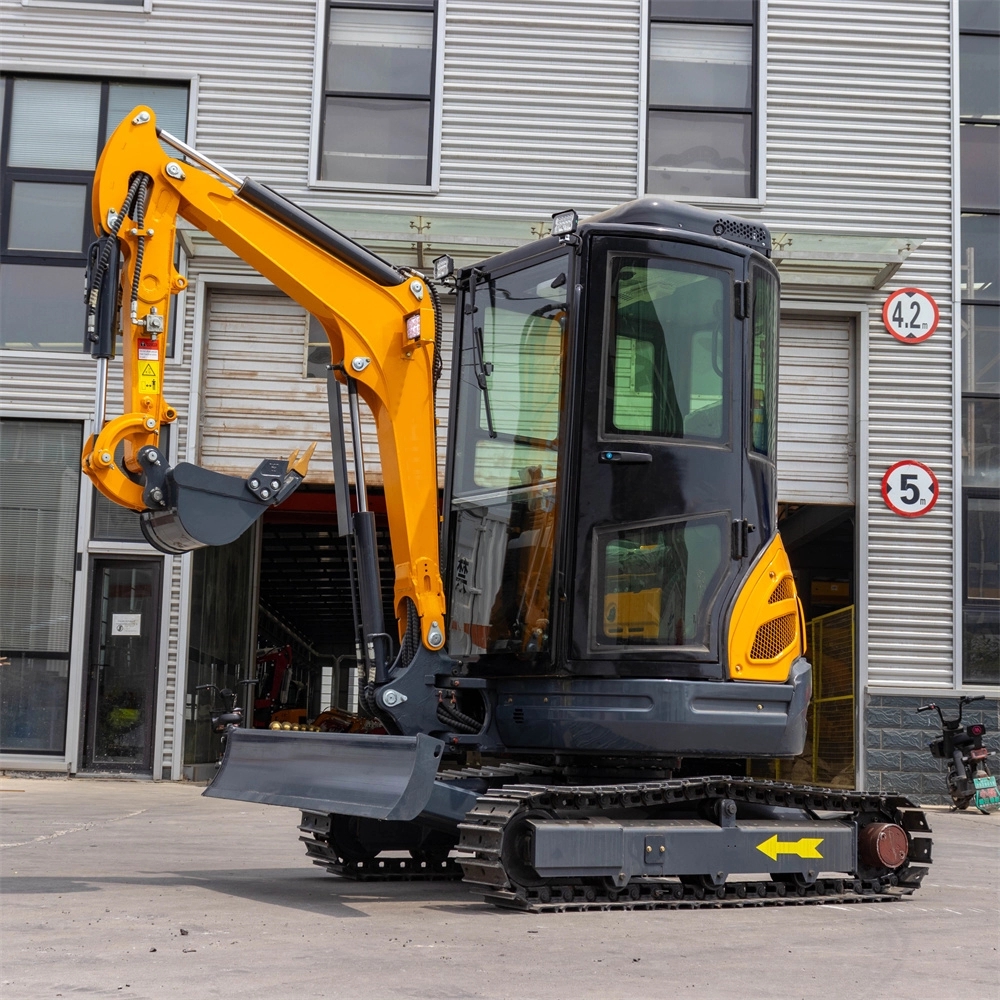

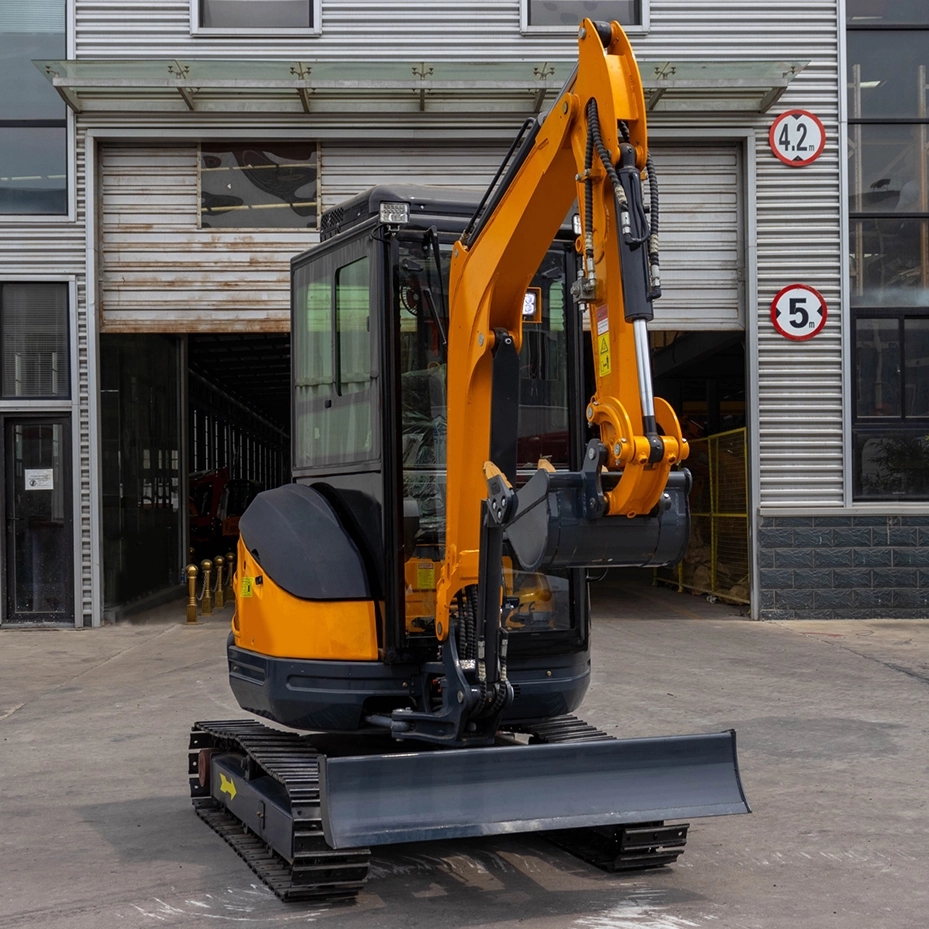

The WPS-25 2.5 tonne Excavator is fitted with a Kubota D1105 Engine, Full Pilot Controls, Fully Hydraulic Piston Pump, Internal Piston Motor, Load Sensitive Multi-Way Valves, Steel Tracks, Standard Swing Boom, Enclosed Cabin with High and Low Speed, and comes with all of the following items. Expandable Tracks, Hydraulic Thumb, 200, 400, 450mm Buckets, Standard Mud Bucket 800mm, Tilt Bucket 800mm, Ripper, Auger with 200mm Drill, Hydraulic Quick Hitch, Spare Filters and Toolkit.

Features:

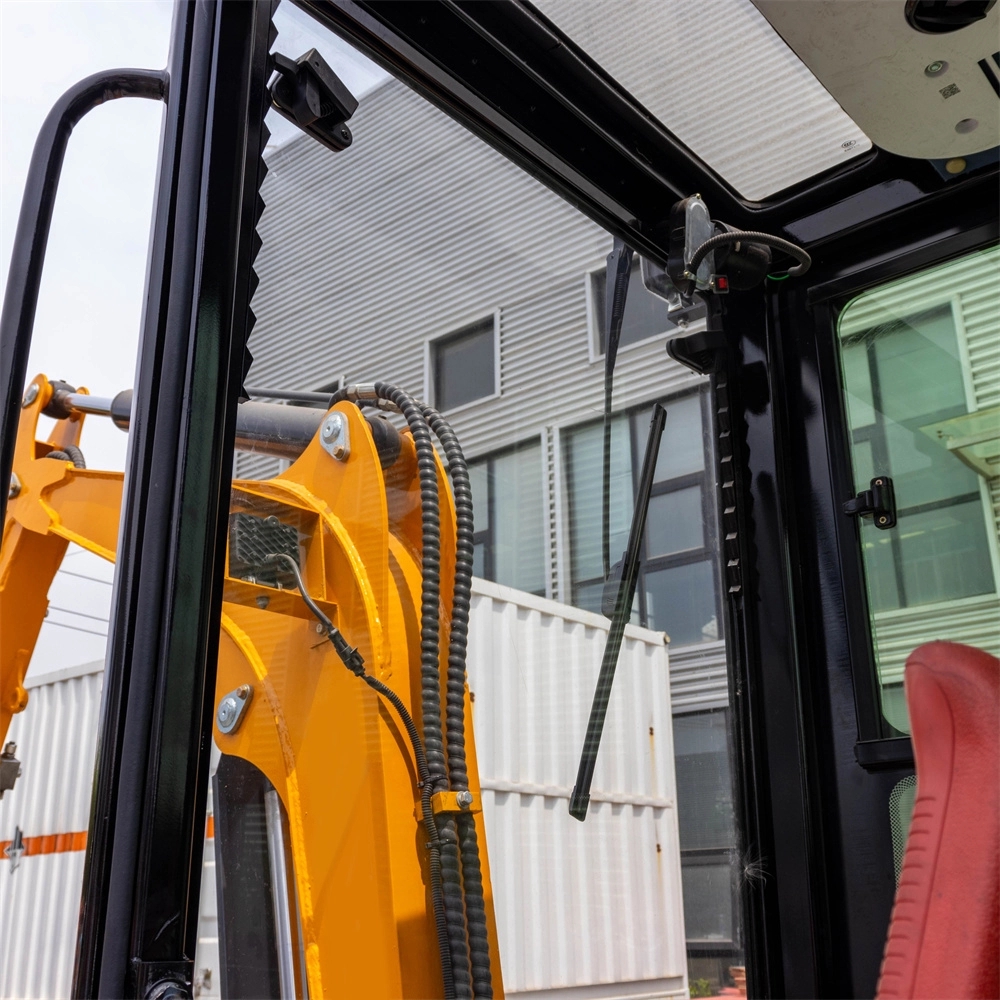

  • The front windshield can be opened to improve ventilation in the cabin.

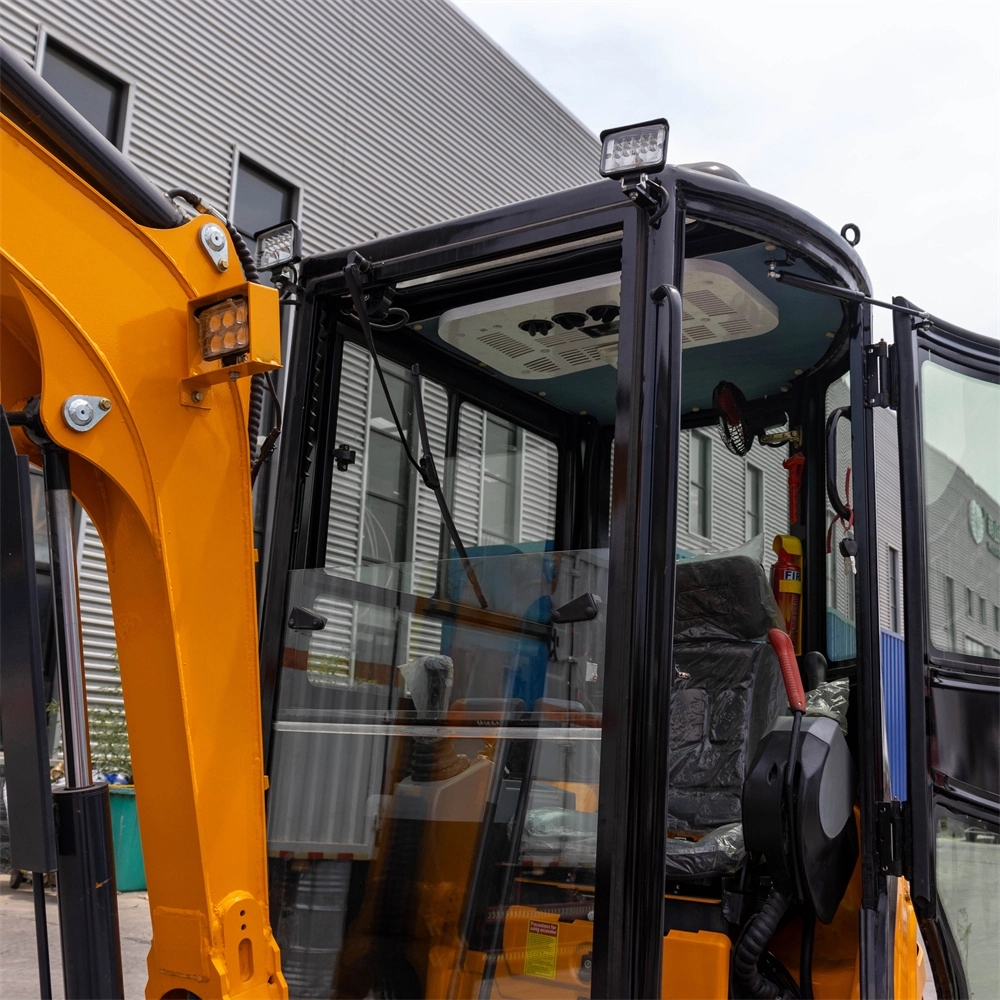

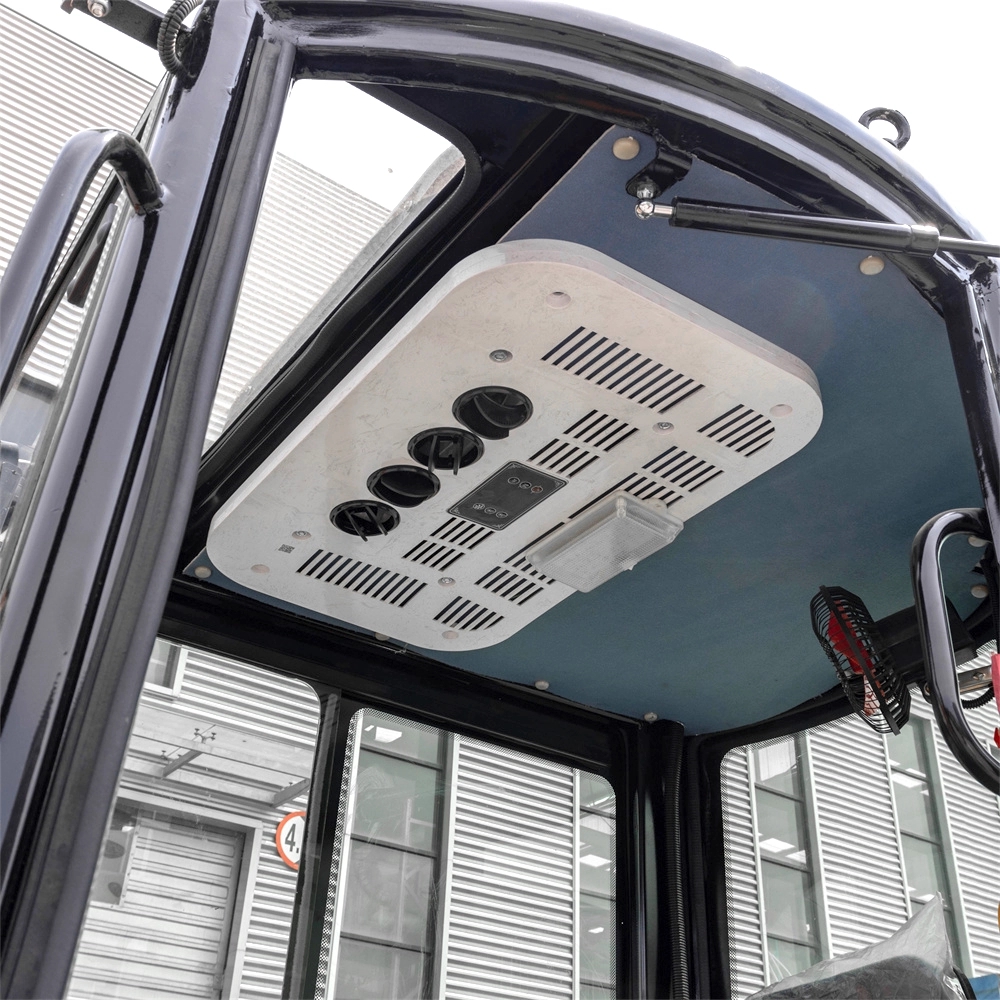

  • The cabin  is air-conditioned to make operation more comfortable.

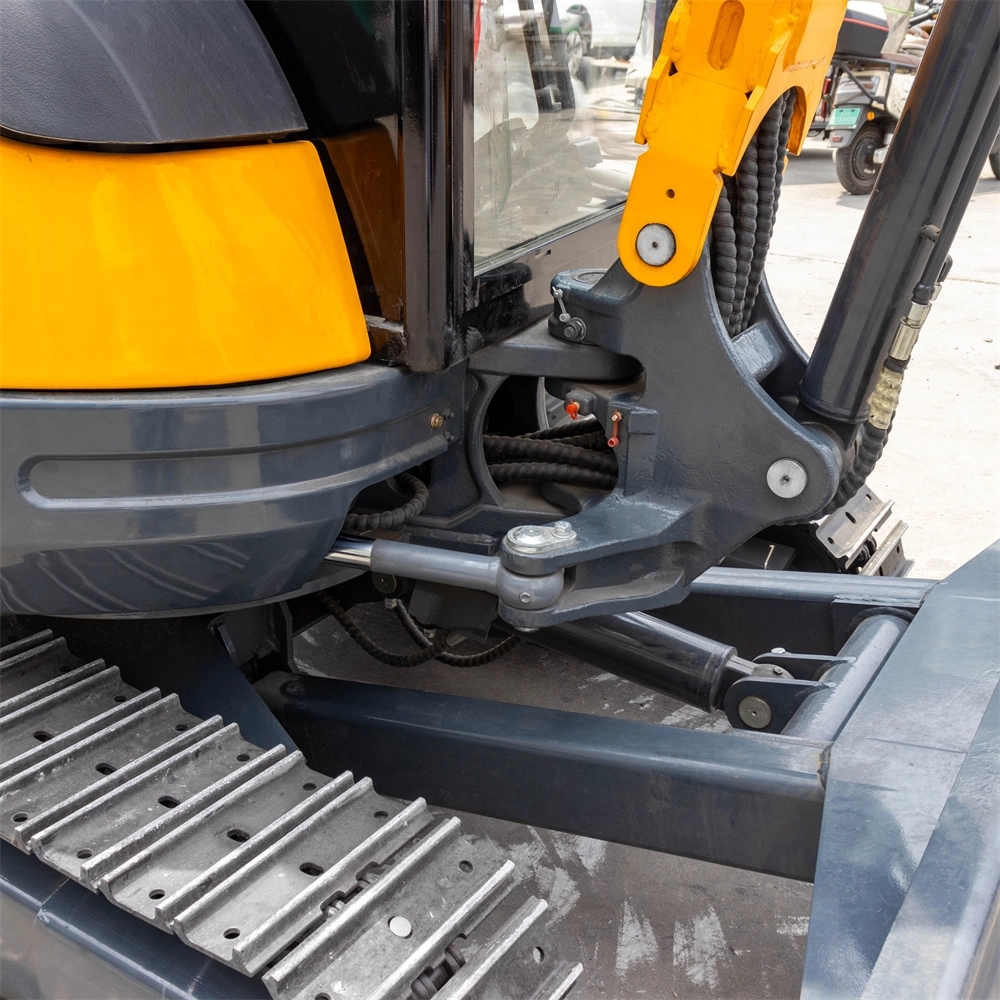

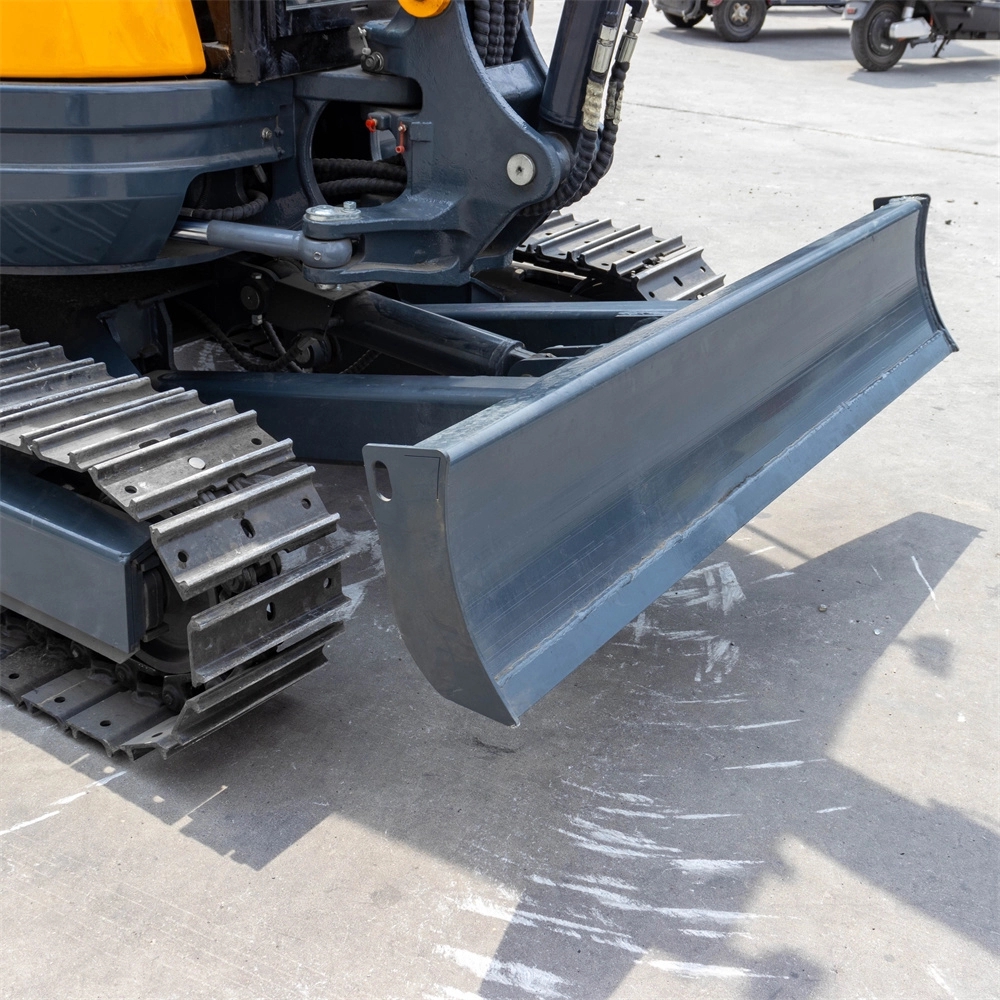

  • The machine is equipped with a cylinder baffle to protect the boom and dozer cylinder.
  • The machine can be rotated in place and can adapt to a variety of complex terrain construction.

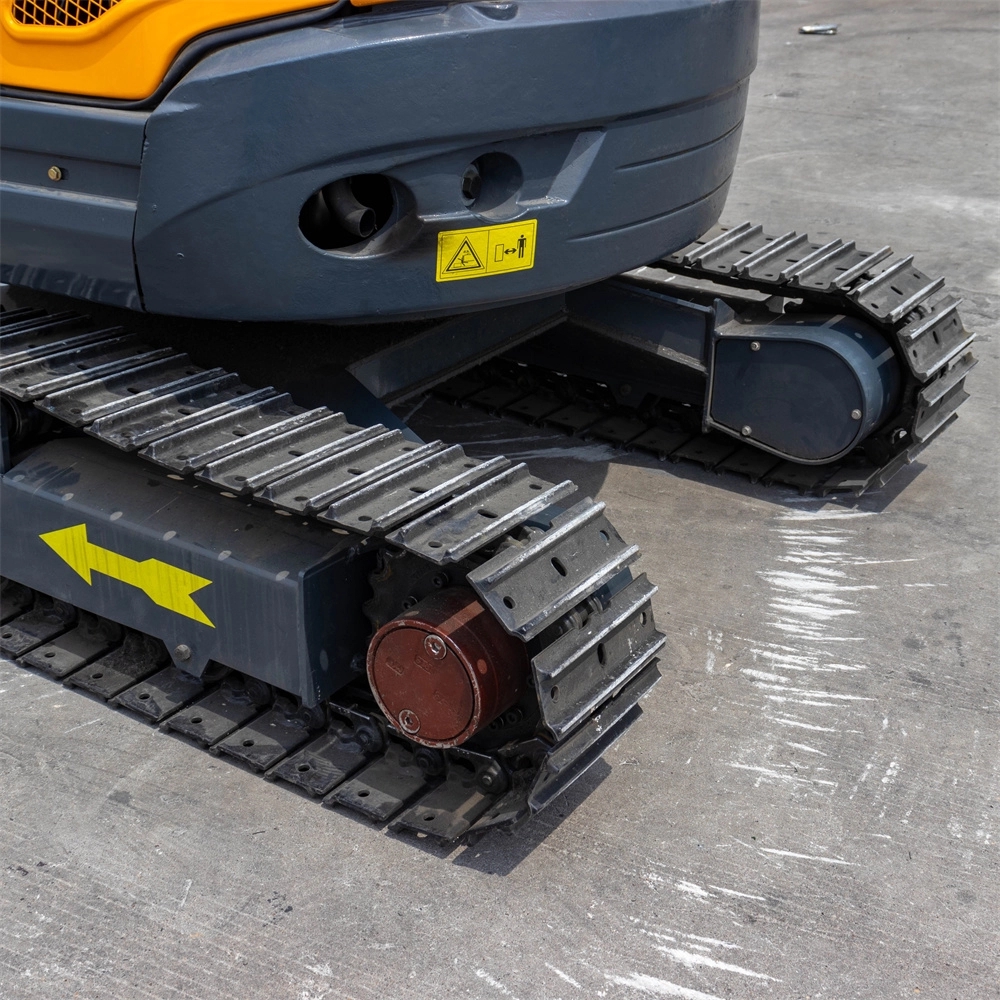

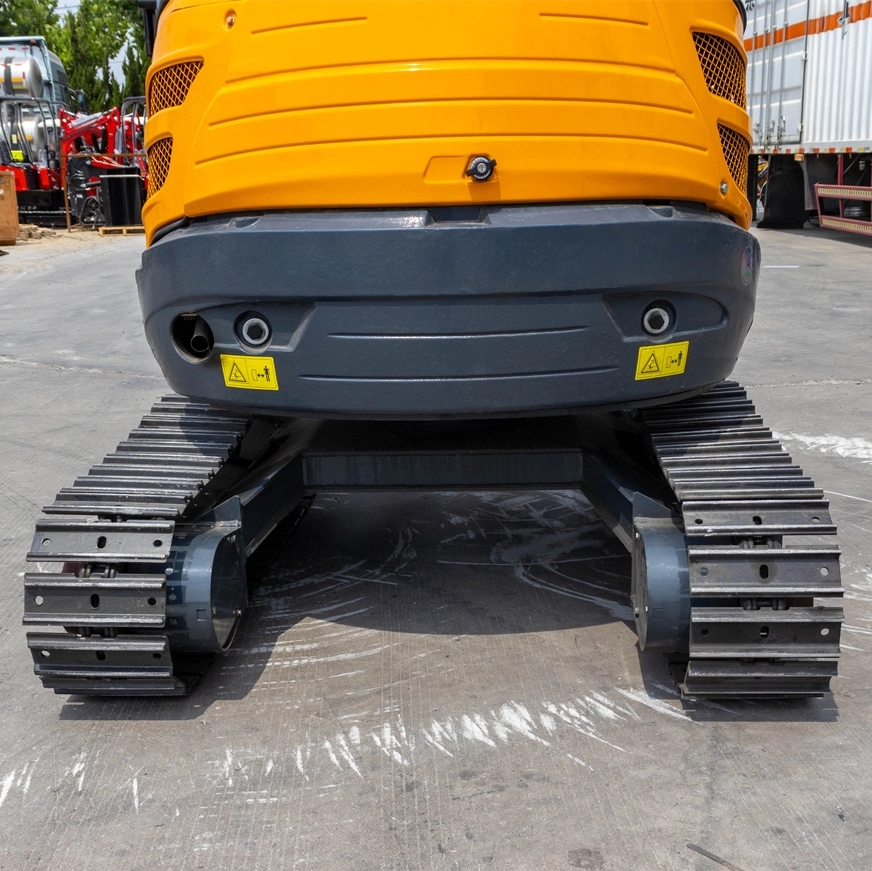

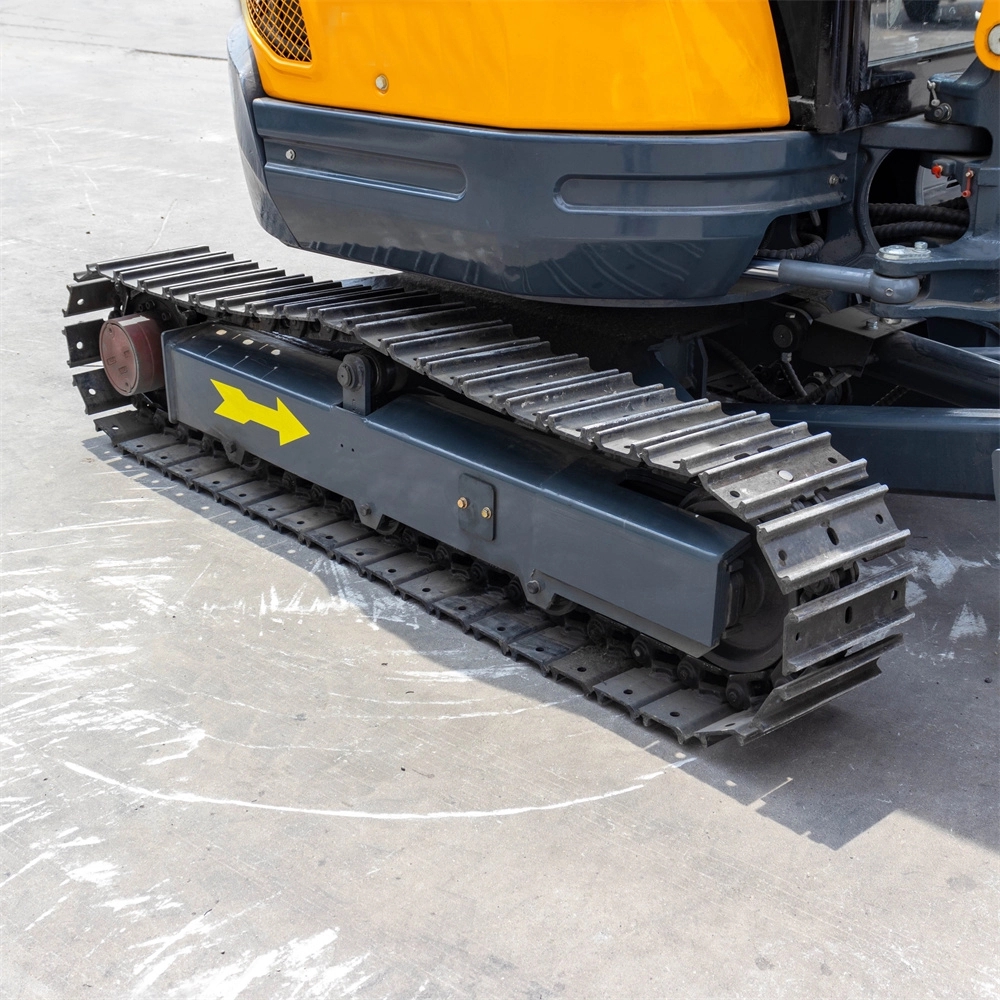

  • Steel tracks have better grip and are more durable. Rubber Tracks are also an option

    • WPS-25 Parameters:

    Working Size (mm)
    Total Length / Transportation Length
    2,870mm
    Total Width
    1,400mm
    Upper Width
    1,320mm
    Total Height (with Cab Roof)
    2,440mm
    Standard Track Width
    250mm
    Track Gauge
    1,150mm
    Minimum Ground Clearance
    145mm
    Tail Radius
    700mm
    Track Ground Length
    1,480mm
    Track Length
    1,858mm
    Performance Parameters
    Machine Weight (kg)
    2,150kg
    Working Weight (kg)
    2,500kg
    Bucket Capacity (m3)
    0.036m3
    Engine
    Kubota D1105
    Rated Power (kW/rpm)
    14Kw/2,200rpm
    Walking Speed (km/h)
    2.85/6.45km/h
    Rotating Speed
    12rmp/3,000r/min
    System Flow (L/min)
    61.6L/min
    Gradability (degrees)
    40°
    Working Range (mm)
    Maximum Excavation Height
    3,365mm
    Maximum Unloading Height
    2,610mm
    Maximum Digging Depth
    2,045mm
    Maximum Digging Distance
    3,430mm
    Minimum Radius of Turn
    2,740mm
    Maximum Height at Minimum Radius Rotation
    2,740mm
