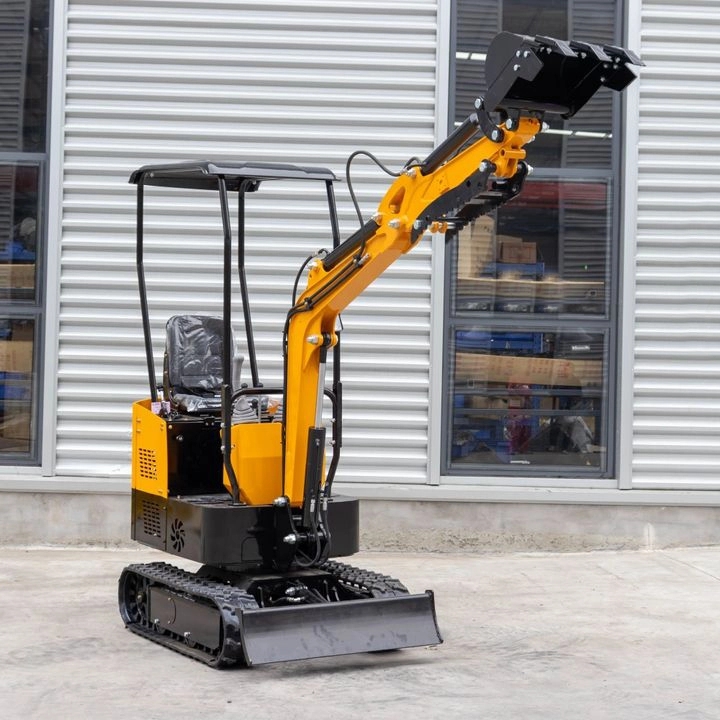

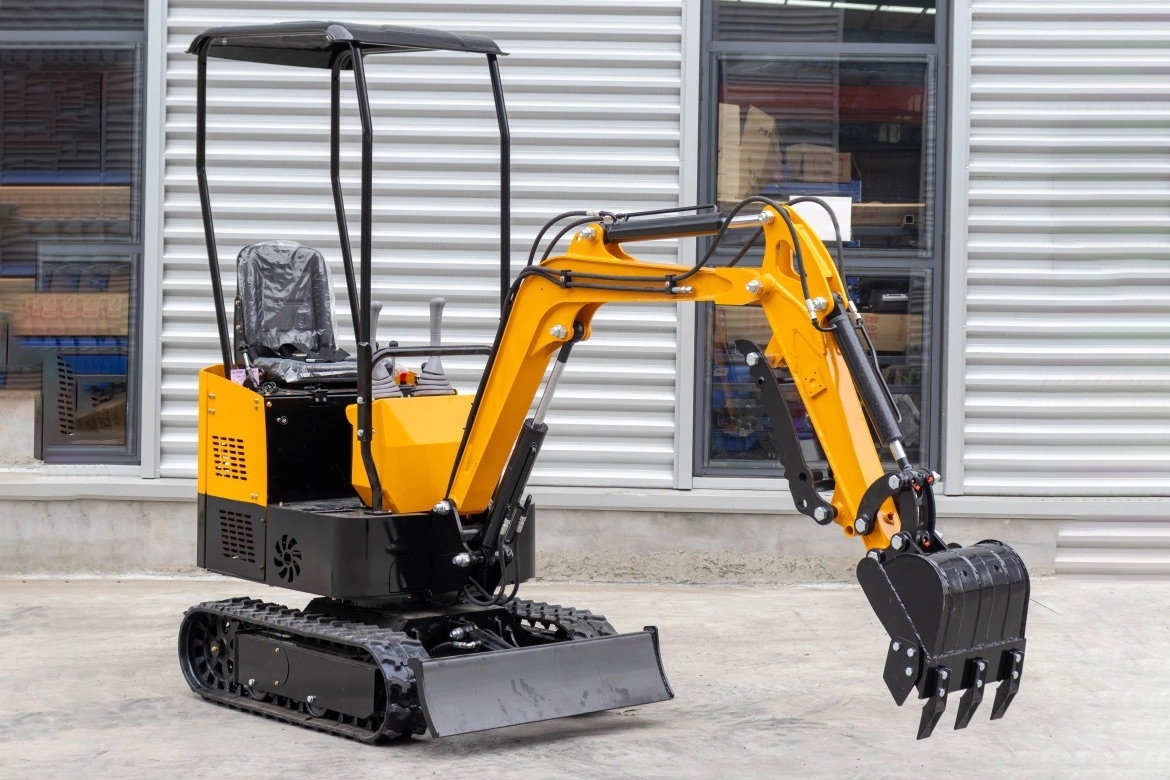

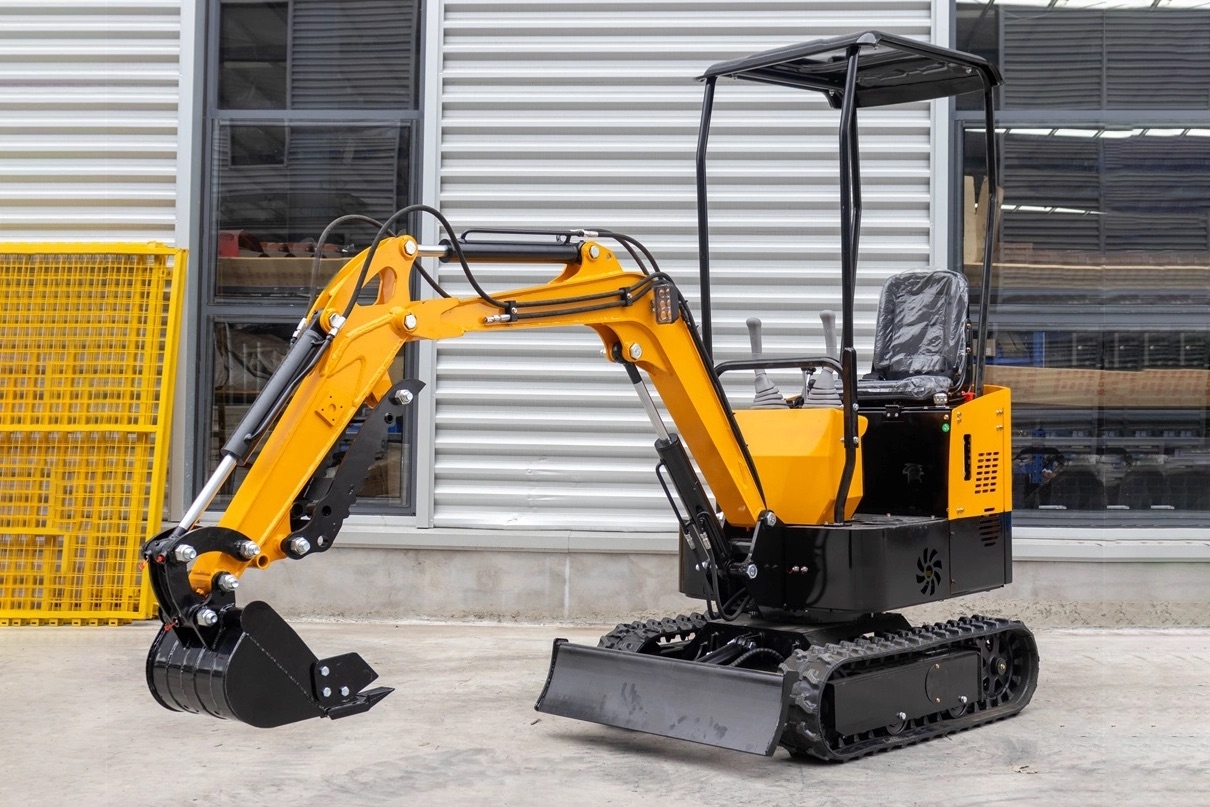

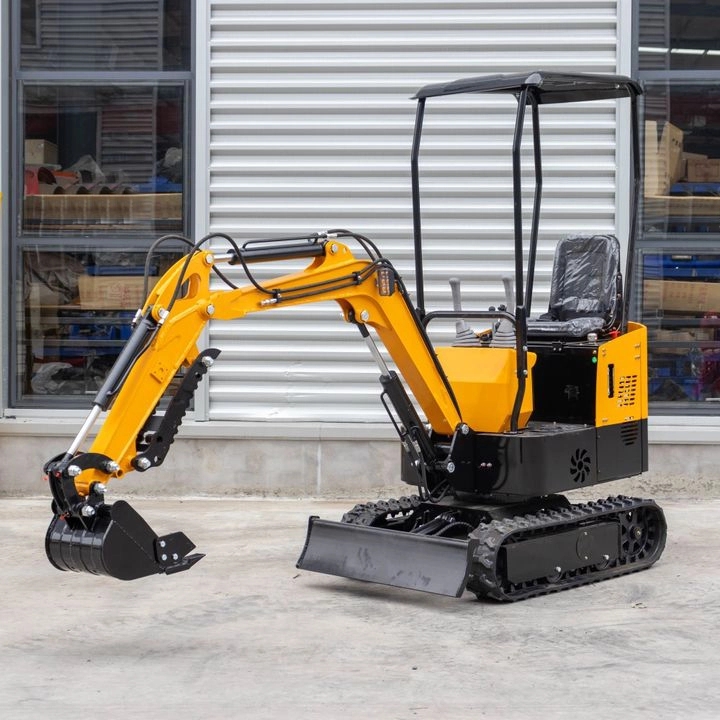

WPS-10 Standard Excavator
$7,950
Operational Weight: 1,000kg
Controls: Standard
Briggs & Stratton 13.5hp Engine
Controls: Standard
Briggs & Stratton 13.5hp Engine
Limited Stock! The WPS-10 Standard is a tough Mini Excavator, Briggs & Stratton 13.5hp engine, Hydraulic Thumb, Quick Hitch, 200, 400, & 800mm Buckets, Ripper, Spare Filters and Toolkit all Standard with other attachments also available. All this at an unbeatable price.
Parameters:
Model | WPS-10 Standard |
Weight | 1,000kg |
Digging Bucket | 0.025cbm/120kg |
Bucket Width | 380mm |
Engine | Briggs & Stratton 13.5hp Engine |
Bore Stroke | Single Cylinder, Fan cooler |
Rated Power | 7kw / 3,000r/min |
Main Pump | G5-6 |
Displacement | 6.8ml/r |
Swing Motor | Sanyang (BMRS-250) |
Traveling Motor | Sangyang (BMT-245) |
Travel Speed | 1.5km/h |
Dimensions:
Model | WPS-10 Standard |
Overall Dimensions | 2,775 x 930 x 2,219mm |
Wheelbase | 910mm |
Total Length of Track | 1,230mm |
Platform Ground Clearance | 380mm |
Platform Back Turning Radius | 784mm |
Chassis Width | 896mm |
Track Width | 180mm |
Chassis Ground Clearance | 132mm |
Track Height | 320mm |
Operating Range:
Model | WPS-10 Standard |
Max. Digging Depth | 1,650mm |
Max. Vertical Digging Depth | 1,375mm |
Max. Digging Height | 2,610mm |
Max. Dumping Height | 1,850mm |
Max. Digging Radius on Ground | 2,850mm |
Min. Rotation Radius | 1,330mm |
Max. Upgrade Height of Bulldozer Blade | 345mm |
Max. Digging Depth of Bulldozer Blade | 255mm |
