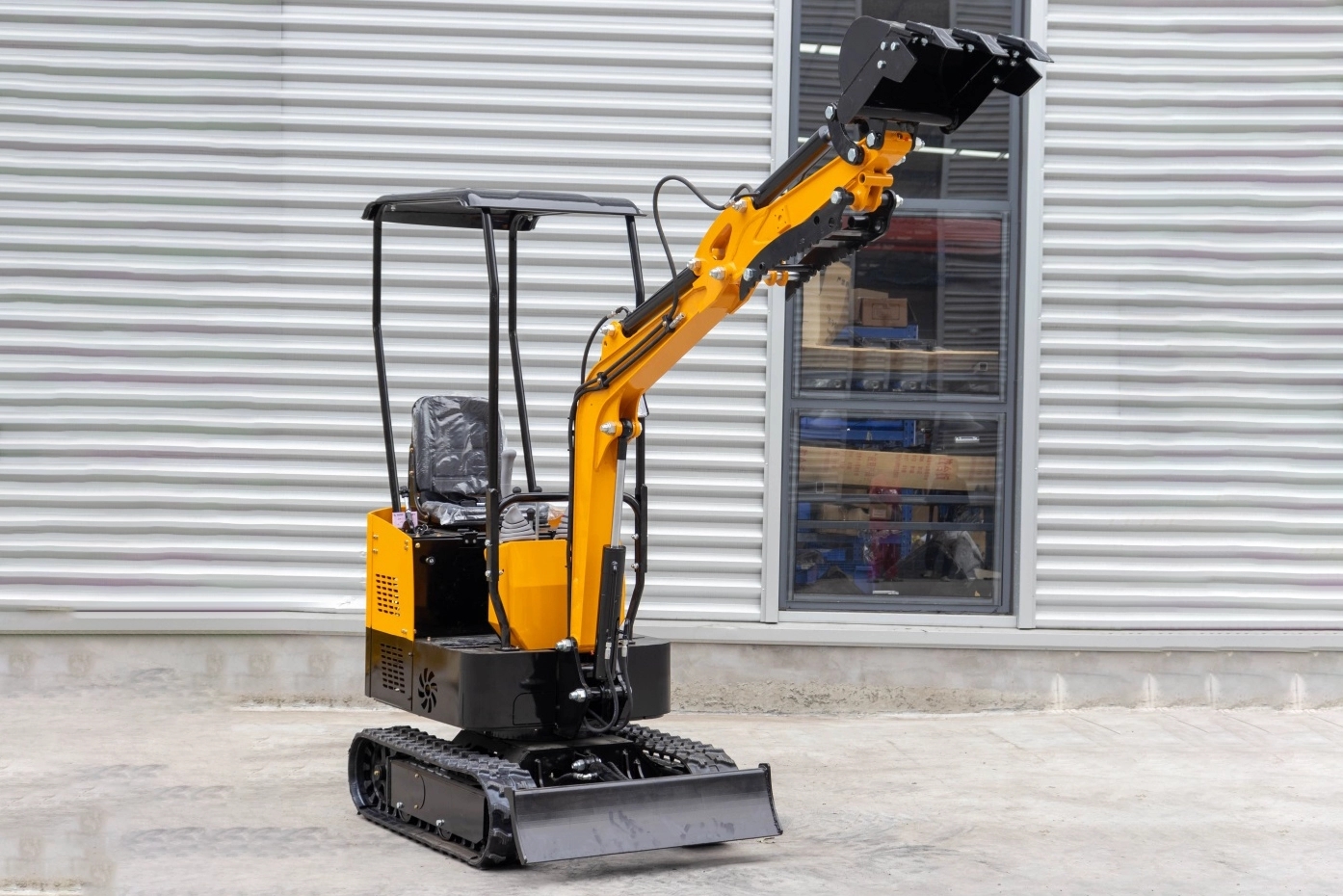

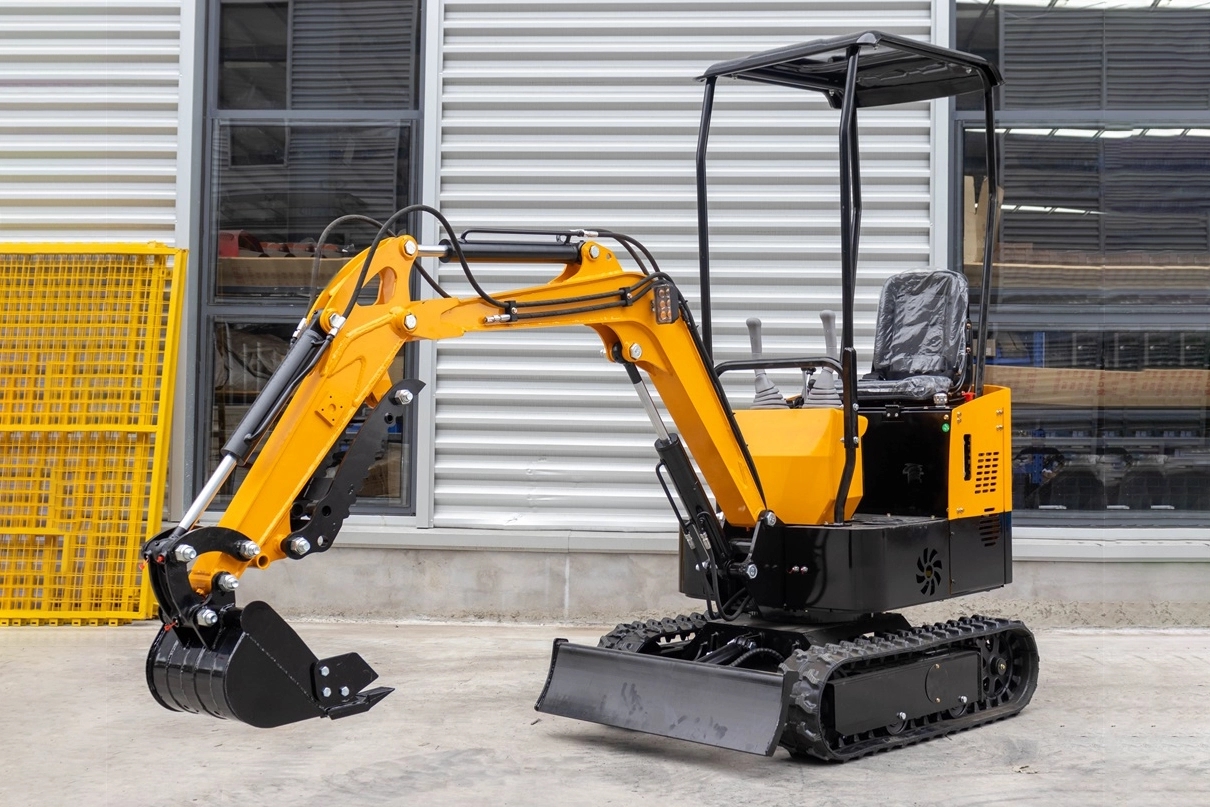

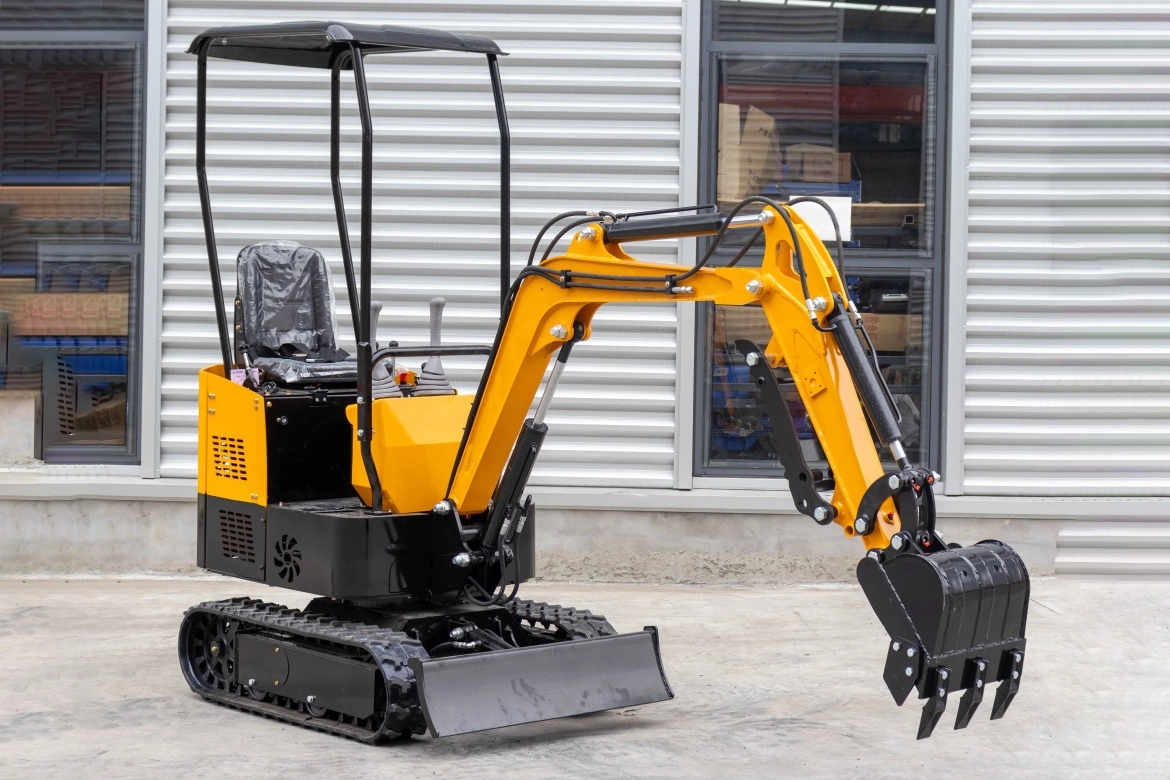

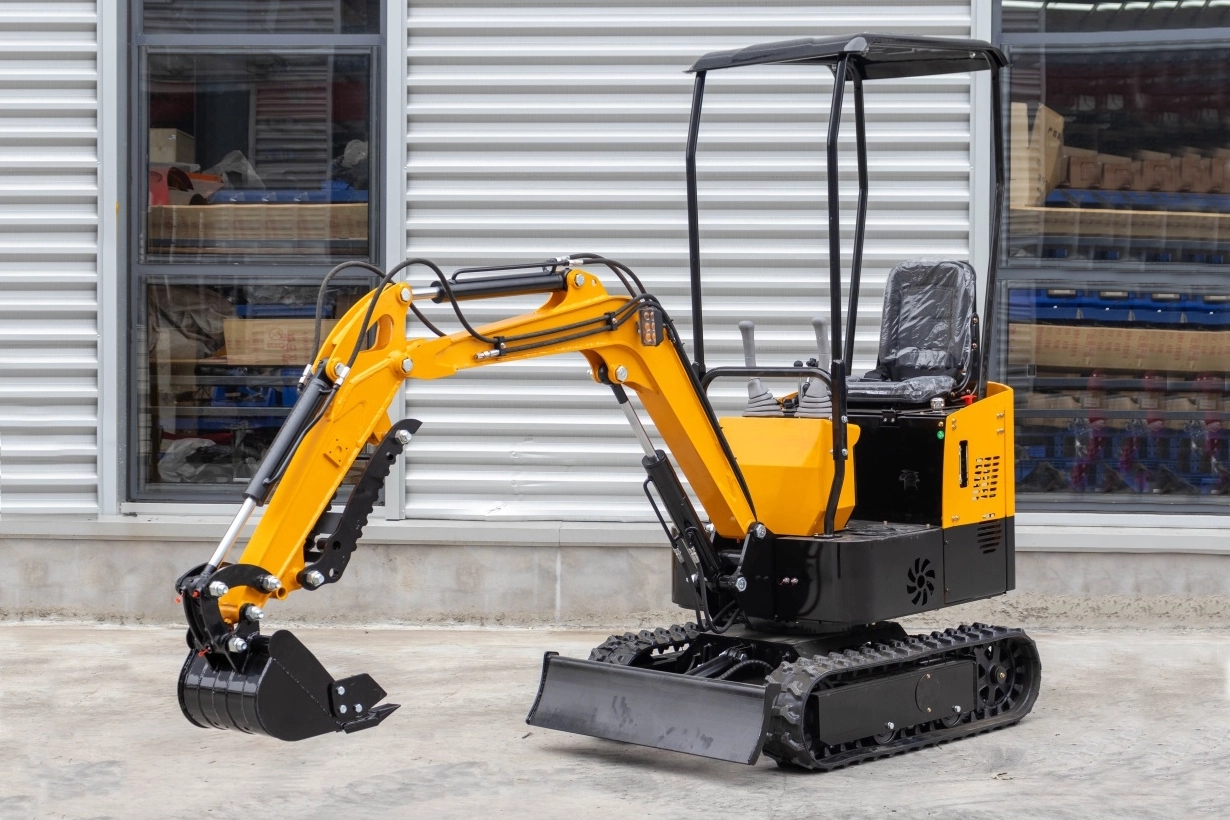

WPS-10B 1T Mini Excavator
$8,950
Operation weight: 1000kg
Bucket Capacity: 0.025m³
Rated Power: 7Kw
Bucket Capacity: 0.025m³
Rated Power: 7Kw
The WP10B Mini 1 Tonne Excavator is packed with standard features and comes as a complete package with all of the following extras, Hydraulic Thumb, 200mm Narrow Bucket with teeth, , 400mm Bucket With Teeth, Ripper, , 800mm Bucket, Quick Hitch, 12 Months Warranty, Toolkit. Other attachments Spare Parts and Filters Available To Order.
WP-10B 1T Mini Excavator
This compact 1 Tonne machine is fitted with the best components, Japanese main hydraulic pump, Italian main valve, swing and travelling motors .
It comes with Either Diesel or Petrol Engine Options, The Koop Diesel Engine meets strict Europe emission standards. Or the ever reliable BRIGGS & STRATTON petrol engine also meeting strict emission standards .
The hydraulic pipes are all German sourced and are of the highest standards.
Counterweight is also added to the rear of the machine making the machine more stable
The boom can also be deflected by 60 degrees turning left and right, on the Swing Boom model.
Parameters:
Model | WP-10B |
Weight | 1,000kg |
Digging Bucket Capacity | 0.025m³/120kg |
Bucket Width | 380mm |
Engine | Koop Engine 192F |
Optional Engine | Briggs & Stratton Engine |
Bore Stroke | Single Cylinder, Fan Cool |
Rated Power | 7kw/3000r/min |
Main Pump | G5-6 |
Displacement | 6.8ml/r |
Swing Motor | SANGYANG (BMRS-250) |
Traveling Motor | SANGYANG (BMT-245) |
Travel Speed | 1.5km/h |
Main Dimensions:
Overall Dimension (LxWxH) | 2,775 x 930 x 2,219mm |
Wheelbase | 910mm |
Total Length Of Track | 1,230mm |
Platform Ground Clearance | 380mm |
Platform Back Turning Radius | 784mm |
Chassis Width | 896mm |
Track Width | 180mm |
Chassis Ground Clearance | 132mm |
Track Height | 320mm |
Operating Range:
Max. Digging Depth | 1,650mm |
Max. Vertical Digging Depth | 1,375mm |
Max. Digging Height | 2,610mm |
Max. Dumping Height | 1,850mm |
Max. Dumping Radius On Ground | 2,850mm |
Min. Rotation Radius | 1,330mm |
Max. Upgrade Height Of Bulldozer Blade | 345mm |
Max. Digging Depth Of Bulldozer Blade | 255mm |
