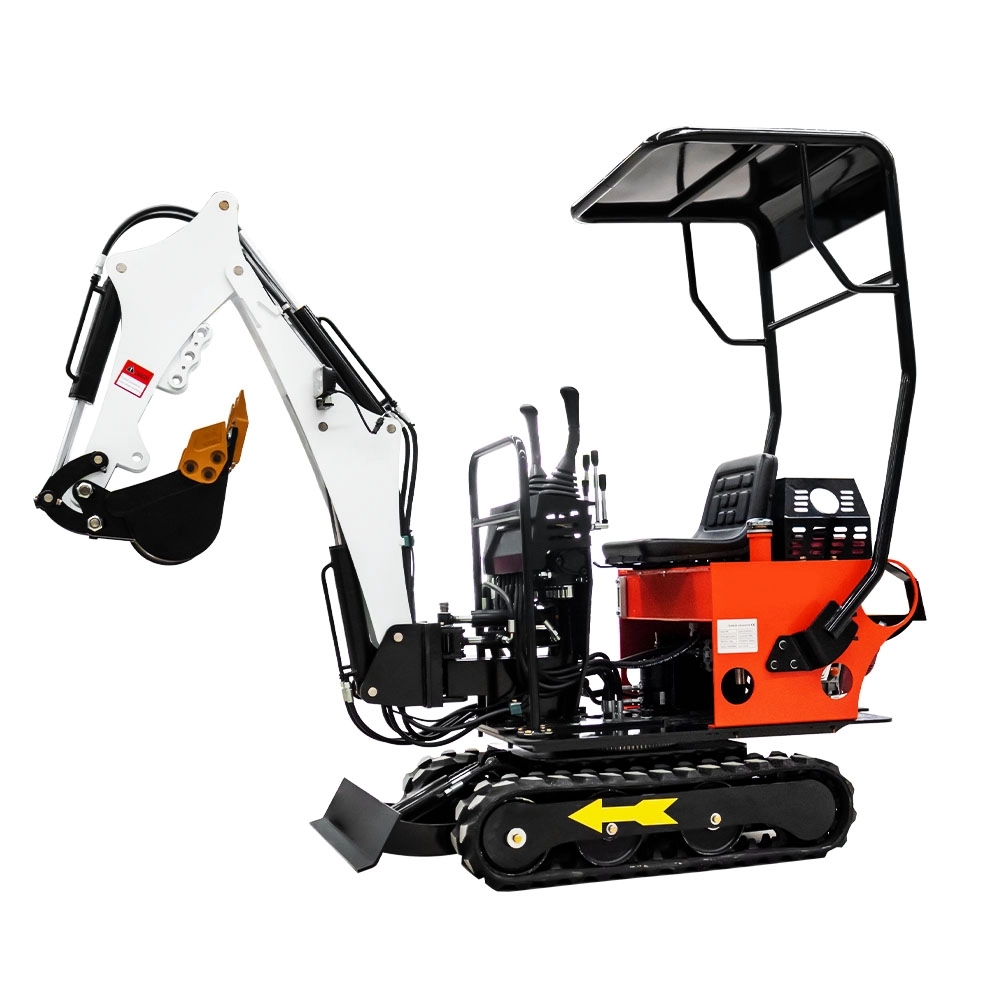

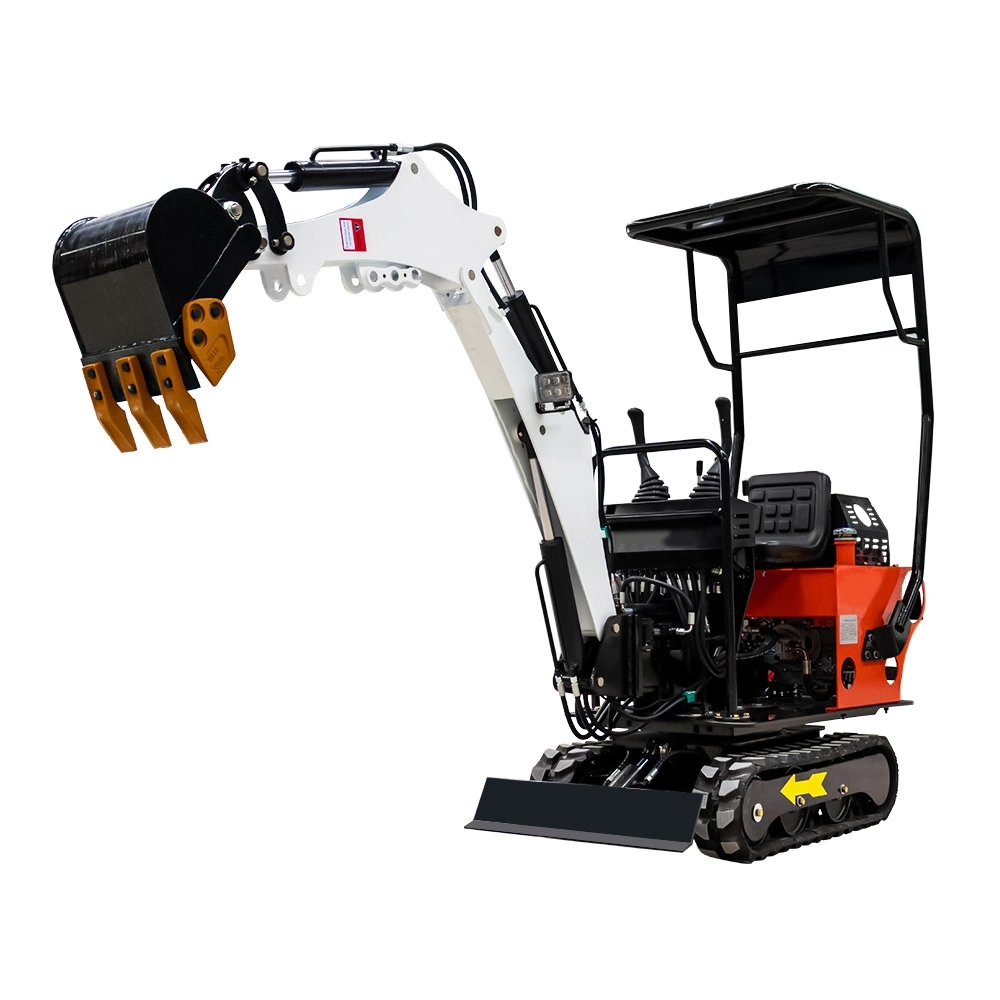

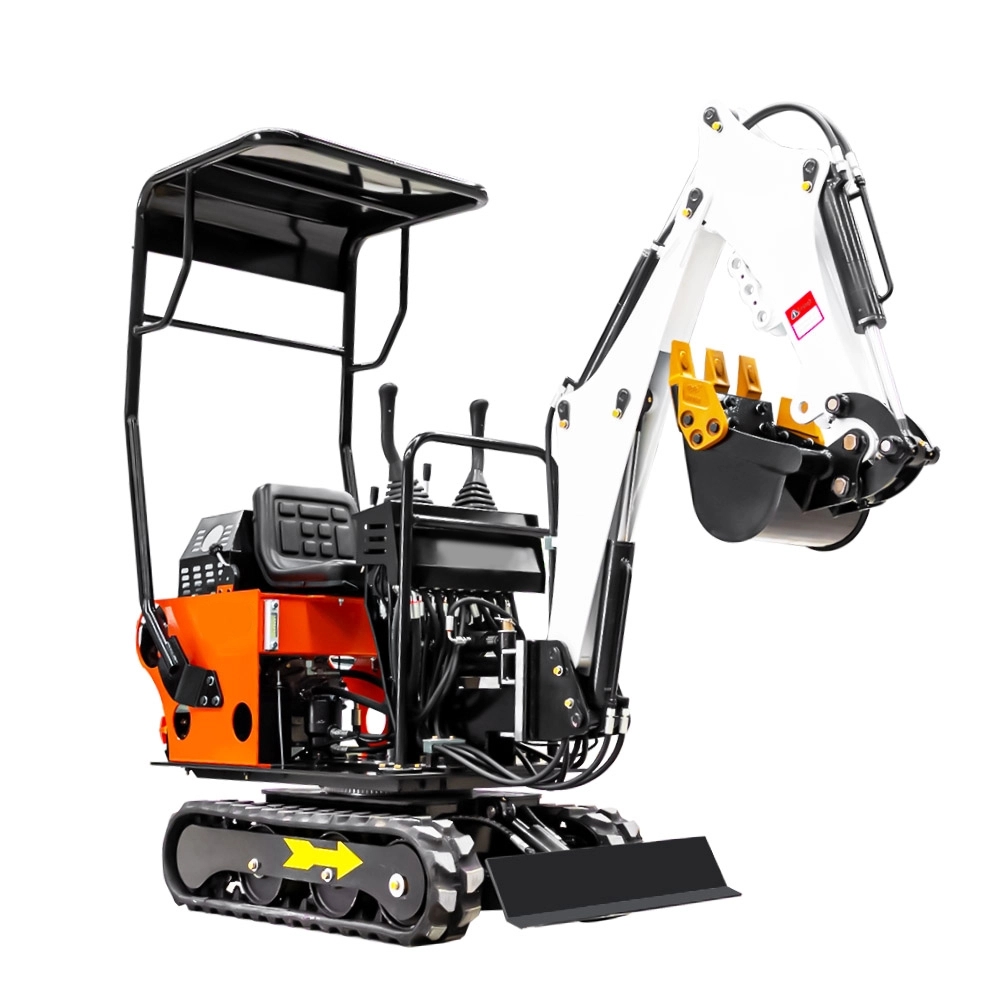

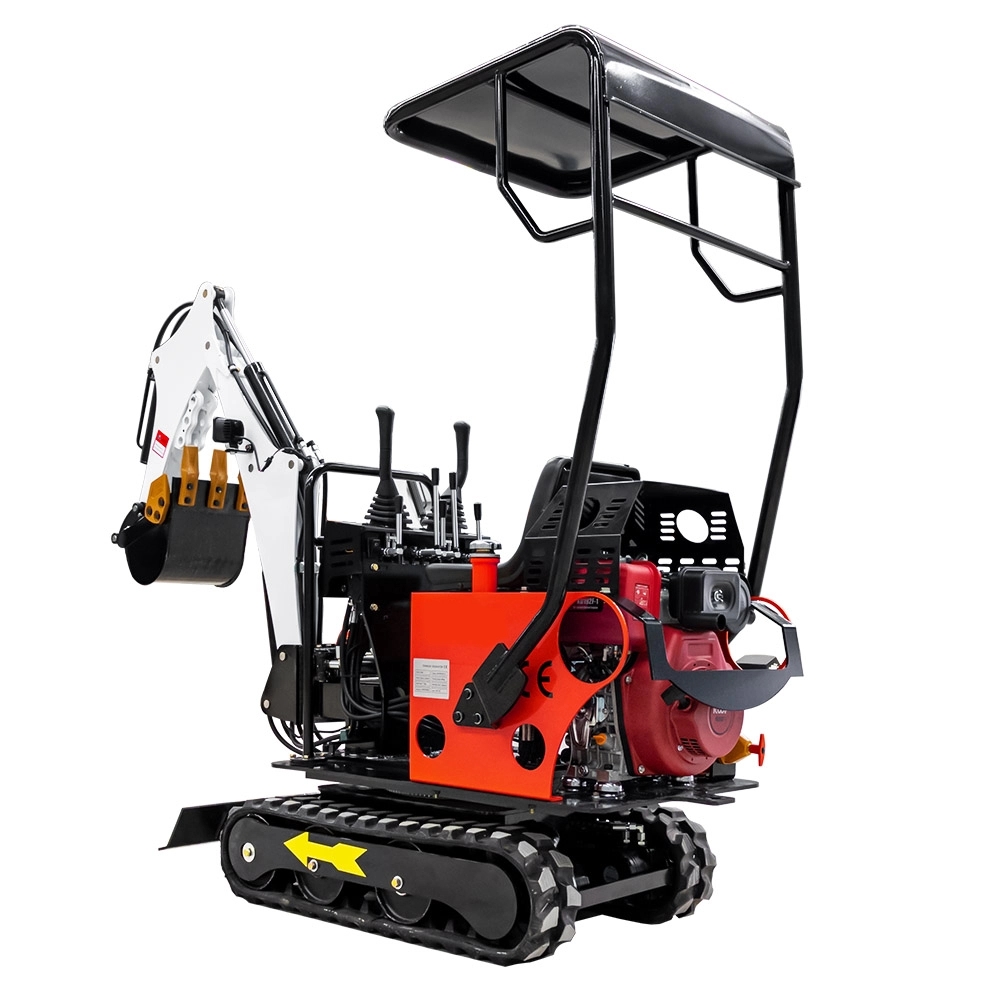

WPS-08 Excavator
$6,950
Operating Weight: 650kg
Swing Boom.
Compact Powerful Machine.
Swing Boom.
Compact Powerful Machine.
The WPS-08 Mini 1 Tonne Excavator is packed with standard features and comes as a complete package with all of the following extras, 200mm Narrow Bucket with teeth, , 400mm Bucket With Teeth, Ripper, 800mm Bucket, Quick Hitch, 12 Months Warranty, Toolkit. Other attachments are available to order, Expandable Tracks $900 Option, Spare Parts and Filters Available To Order.
Performance Parameters
Model | WPS-08 |
Weight | 650kg |
Digging Bucket Capacity | 0.025m³ |
Rated Power | 12HP |
Engine Model | Changchai 192 |
Max. Digging Force | 7.5KN |
Pump Form | Single Gear |
Set Working Pressure | 14Mpa |
Swing Speed | 12 rpm |
Travel Speed | 2.2km/h |
Gradeability | 30° |
Ground Pressure | 19Kpa |
Main Dimensions:
Model | WPS-08 |
Total Width | 720-780mm |
Total Height | 1,300mm |
Total Length | 2,430mm |
Min. Ground Clearance | 80mm |
Track Ground Length | 1,140mm |
Track Width | 150mm |
The WPS-08 small mini hydraulic excavator is a very compact design, only 0.8 ton, it is suitable to be used for small projects, a simple design, very easy to maintain.

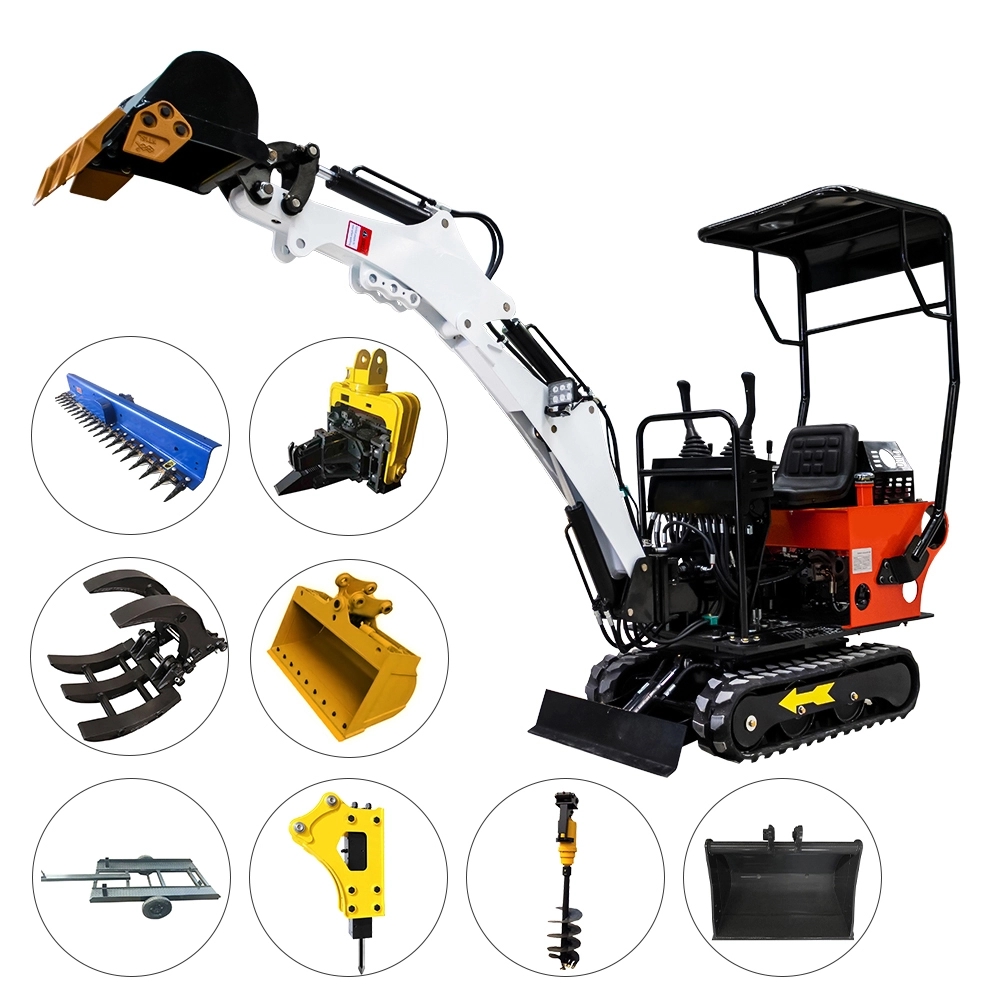

A large range of additional attachments are available.
Working Range:
Model | WPS-08 |
Max. Digging Depth | 1,200mm |
Max. Digging Distance | 2,450mm |
Max. Digging Height | 2,350mm |
Max. Dumping Height | 1,600mm |
Max. Swing Radius | 1,100mm |
Max. Upgrade Height of Bulldozer Blade | 120mm |
Max. Digging Depth of Bulldozer Blade | 200mm |
