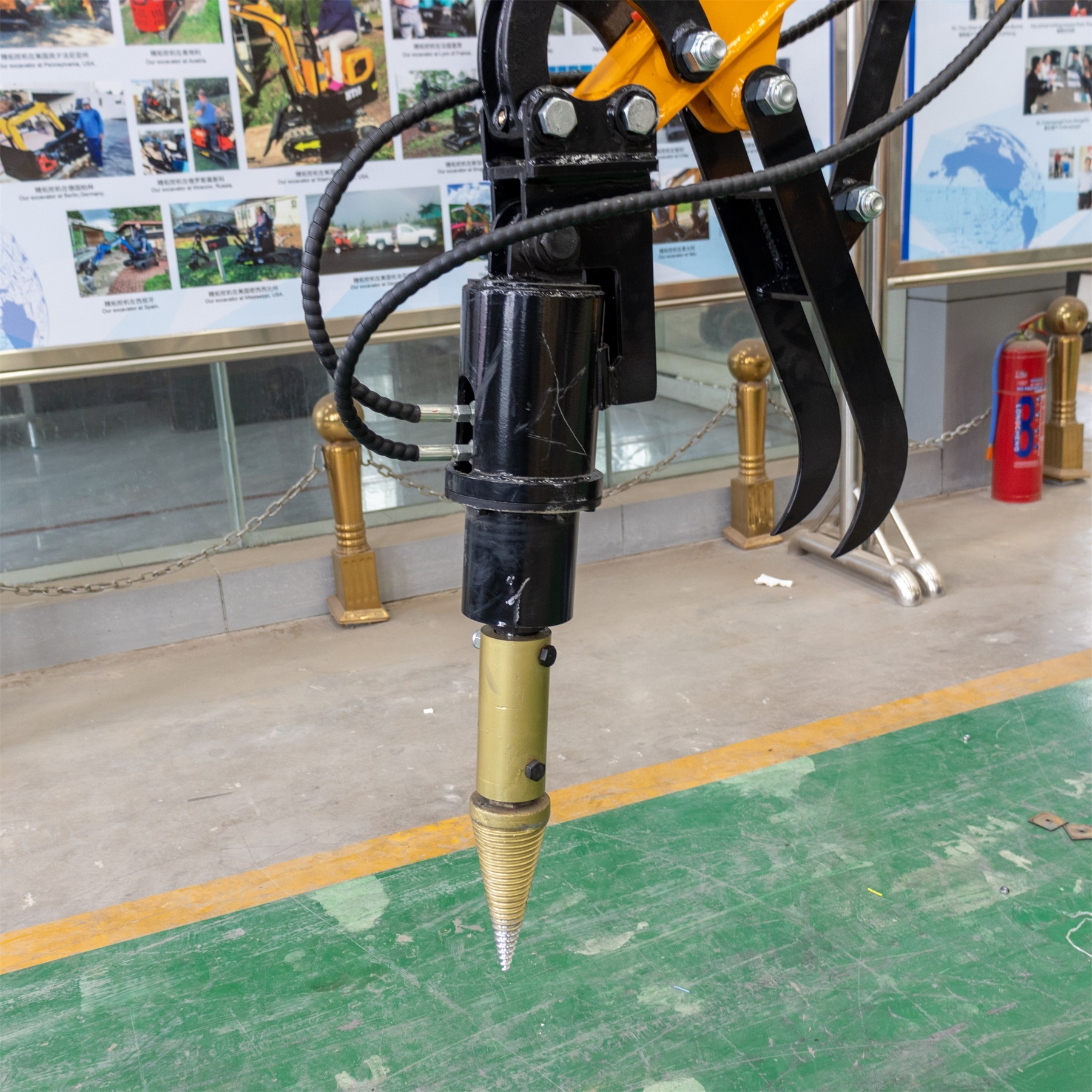

Hydraulic Cone Log Splitter
From $995
Hydraulic Cone Splitter
Drive Motor, Pins and hydraulic Lines Included
Available for 1.5 - 6 tonne excavators
Drive Motor, Pins and hydraulic Lines Included
Available for 1.5 - 6 tonne excavators
Turn your mini excavator into a high-performance log splitter with this hydraulic cone-style splitter. Designed for easy mounting and maximum splitting power, this attachment uses your excavator’s hydraulic system to effortlessly split hardwood and softwood logs of all sizes — ideal for firewood preparation, forestry work, and land clearing.
The hardened steel cone bites cleanly into timber, while the high-torque hydraulic motor ensures smooth, continuous operation without the strain of manual splitting.
Key Features
- High-Torque Hydraulic Drive – Delivers exceptional splitting power through your excavator’s auxiliary circuit.
- Hardened Steel Cone – Precision-engineered for efficient penetration and long service life.
- Heavy-Duty Construction – Built from high-tensile materials to withstand rugged forestry and farm use.
- Simple to Operate – Connects easily to standard auxiliary hydraulics for instant productivity.
- Compact, Lightweight Design – Suitable for mini and compact excavators without compromising stability.
- Low Maintenance – Fewer moving parts mean lower upkeep and longer operating life.
- Interchangeable Cones – Optional additional cone sizes available to match log diameter and wood type.
Specifications (Typical Range)
Excavator Suitability 1.5 – 6 tonne mini excavators
Drive Type Hydraulic motor (direct drive or planetary option)
Working Pressure16 – 22 MPa (2320 – 3190 psi)
Hydraulic Flow30 – 65 L/min (depending on model)
Cone Material Hardened, heat-treated alloy steel
Cone Length 250 – 400 mm
Cone Diameter 70 – 120 mm Mounting Bolt-on or quick hitch adaptor
Weight Approx. 80 – 140 kg (model dependent)
Applications
- Firewood production
- Forestry and timber management
- Land clearing and property maintenance
- Farm and rural operations
- Wood recycling and splitting large stumps
