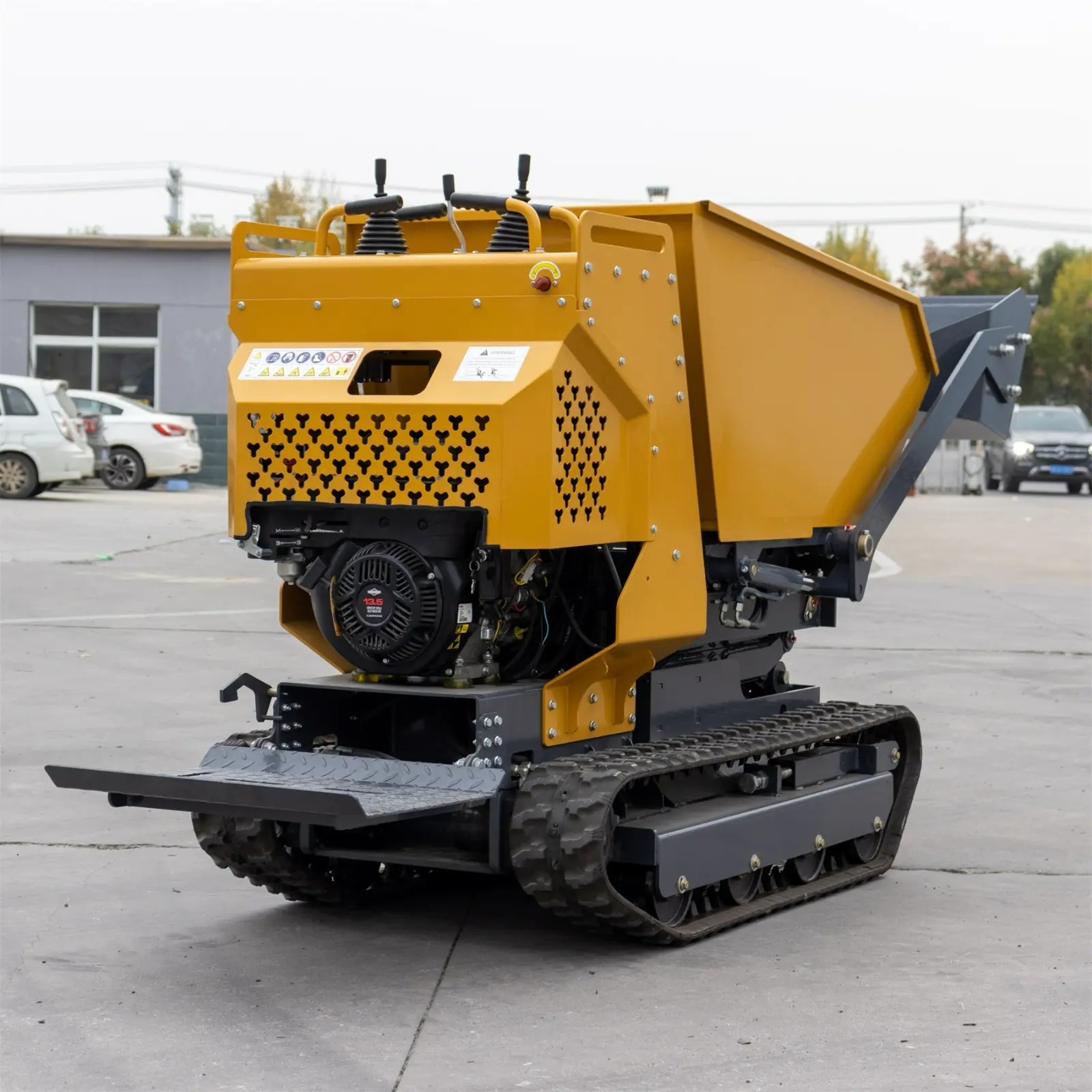

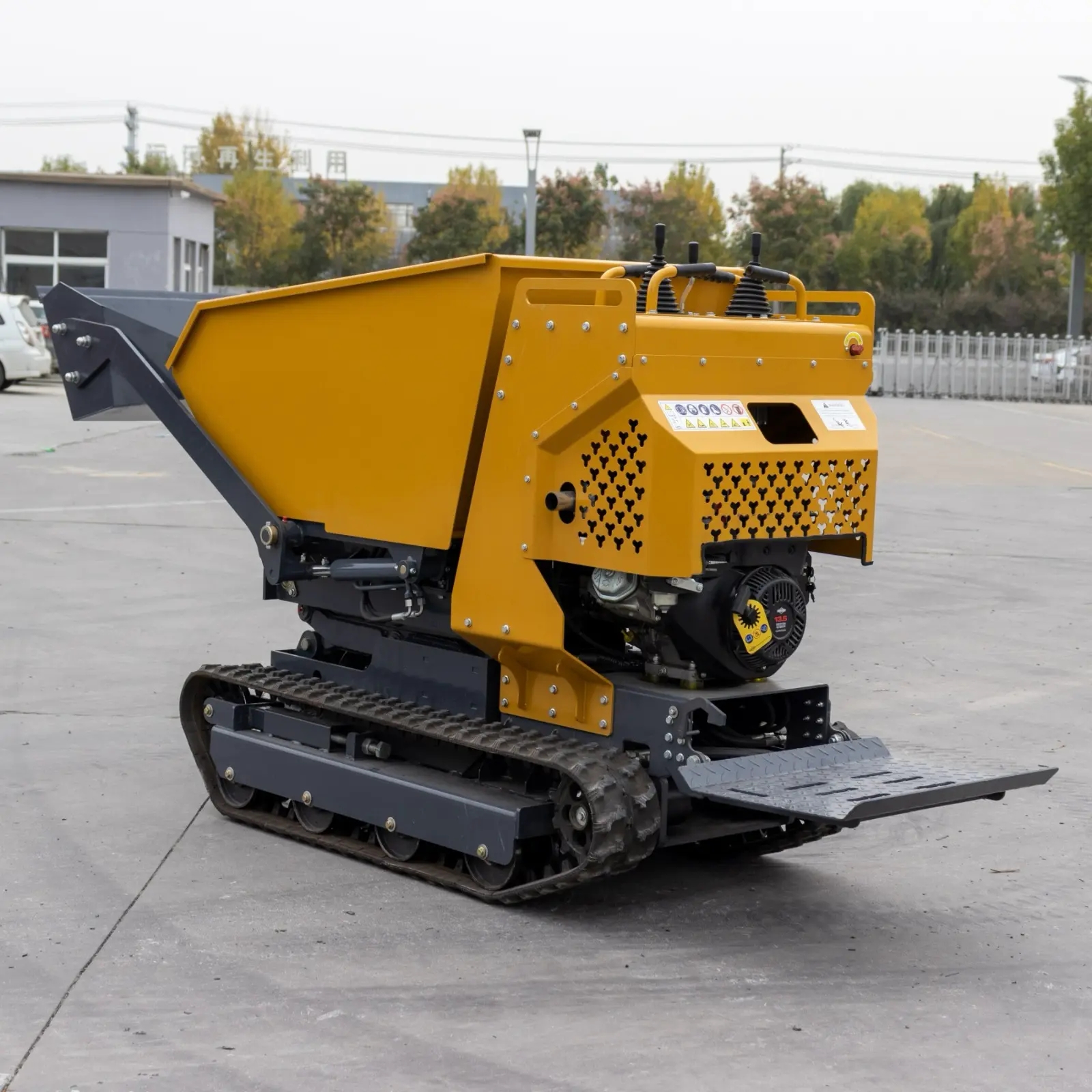

WPS-500Y-5 Mini Crawler Dumper

$9,857
Loading Capacity: 500kg
Power: 4.2kw/3600rpm
Engine: Briggs and Stratton
Request a quoteCall Ian on 0419 188 420

Introducing the WPS-500Y-5 Mini Dumper: the compact, high-efficiency solution for moving large volumes of materials. Powered by a Briggs and Stratton Engine, this versatile dumper delivers robust performance with a 500kg capacity and easy hydraulic operation. Whether you need to transport materials on-site or tackle tough terrain, its air-cooled engine, Euro 5 emissions standard, ensure maximum productivity . With a durable one-piece integrated box and reliable steering and unloading systems, the HT-5050 Mini Dumper is built to last, making it the perfect addition to any construction or landscaping project.

Parameters

Model
WPS-500Y-5
Model Engine
Briggs & Stratton
Engine Type
Single cylinder, OHV, 4-stroke, air cooling
Displacement
203CC
Rated Power
6.5HP/3,600rpm
Fuel Type
92 # Gasoline
Fuel Tank capacity
3.6 L

Weight/Size

Model
WPS-500Y-5
Total Weight
550kg
Maximum Load
500kg

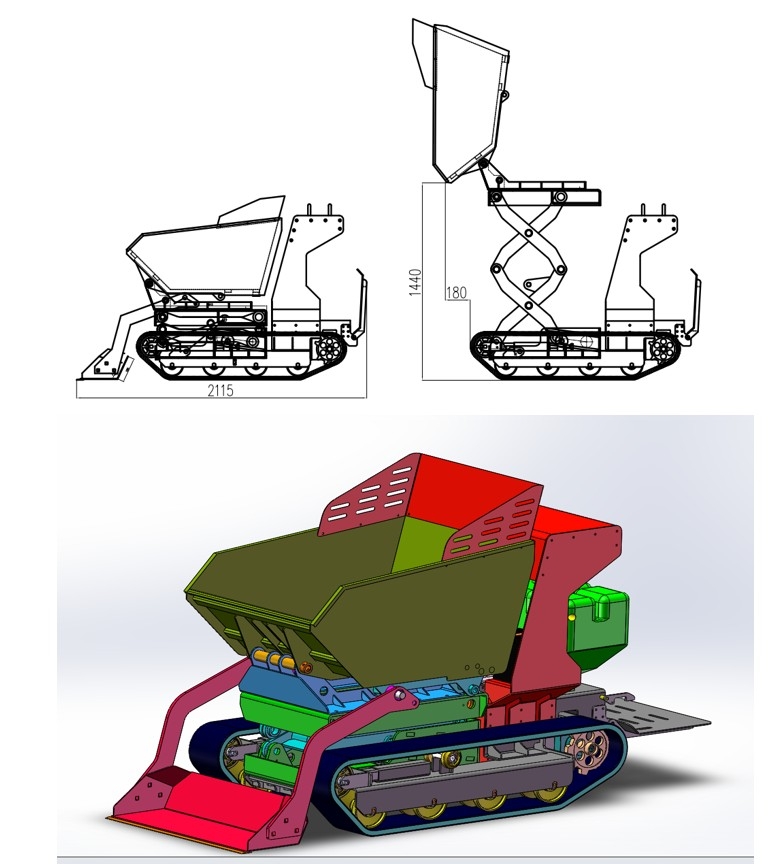

Machin size
(Without pedal, without bucket）
1,570x880x1,450mm
Bucket size with foot pedal
2,050x880x1,450mm
Container Size
1,050x730x730mm
Chassis Width
700mm

Lift Data

Model
WPS-500Y-5

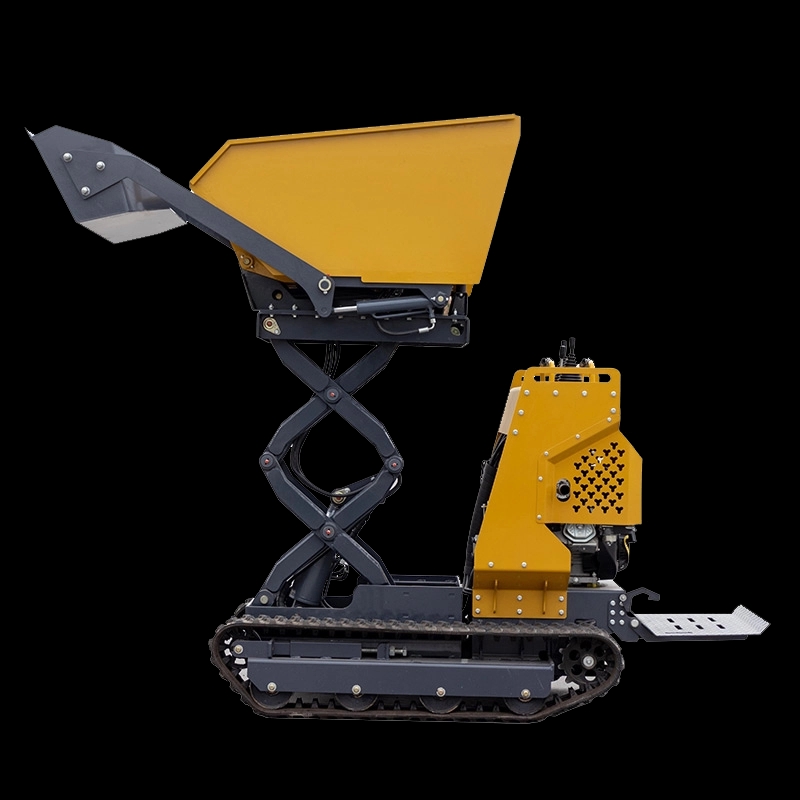

Maximum rise
1,020mm
Tipping height
970mm
Tipping interval
220mm

Track Data

Model
WPS-500Y-5
Track Width
180mm
Track Grounding Length
1,000mm
Chasis Ground Clearance
110mm

Hopper

Model
WPS-500Y-5
Cargo Box Capacity
200
Tipping System
Hydraulic Tipper
Tilting Angle
100

Walk

Model
WPS-500Y-5
Walking Speed
2.88
Minimum Turning Radius
1150
Track Gauge
520
Bucket size with foot pedal
2,050x880x1,450mm
Climbing Ability
20
