Tracked Mini Dumper 500-4
$6,400
500kg Load Capacity
Hydraulic High-Tip Hopper
880mm Overall Width
Hydraulic High-Tip Hopper
880mm Overall Width
Compact, powerful and built for demanding terrain, the Wild Imports 500KG High-Tip Tracked Mini Dumper combines a 500 kg payload, hydraulic tipping hopper and 1,020 mm maximum lift height with dependable Briggs & Stratton petrol power. Its compact 880 mm overall width makes it ideal for construction, landscaping, farming, property maintenance and confined-access jobs.
Big carrying capacity. Compact tracked performance.
Take the hard work out of moving heavy materials with the Wild Imports 500KG High-Tip Tracked Mini Dumper.
Designed for construction sites, farms, landscaping projects and property maintenance, this compact material carrier can transport loads of up to 500 kg while travelling confidently across soft, uneven or challenging ground.
The tracked undercarriage provides greater traction and stability than a conventional wheeled barrow. With an overall width of only 880 mm, the machine can operate through confined access areas where larger dumpers and loaders cannot work effectively.

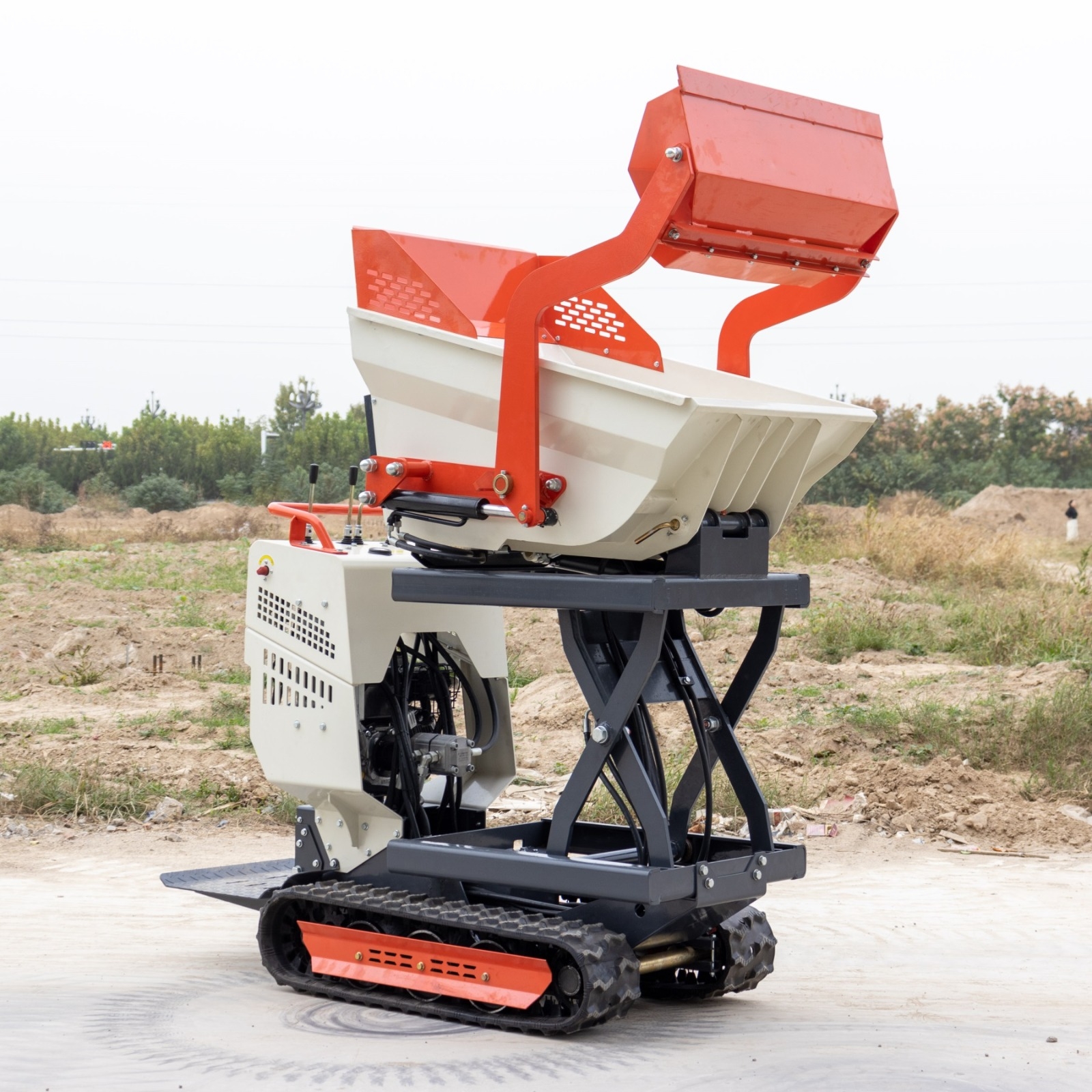

High-tip hydraulic unloading
The 200-litre hopper features a fully hydraulic tipping system, eliminating the physical effort associated with manual tipping.
The hopper can be raised to a maximum height of 1,020 mm, with a stated tipping height of 970 mm. This allows material to be discharged into elevated collection points, trailers, skips or stockpiles where site conditions permit.
A generous 100-degree tipping angle helps achieve fast, clean discharge of loose material.
Dependable Briggs & Stratton power

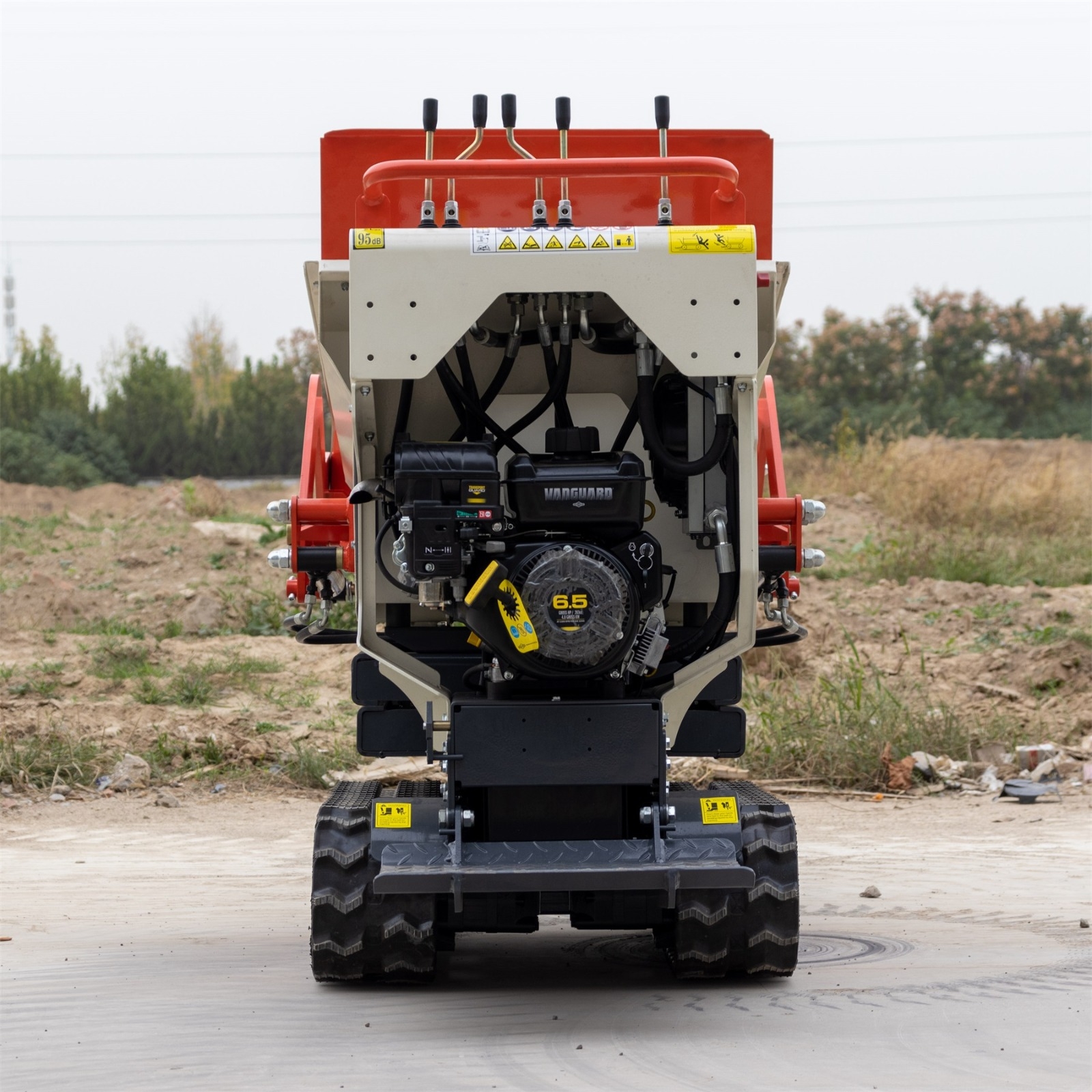

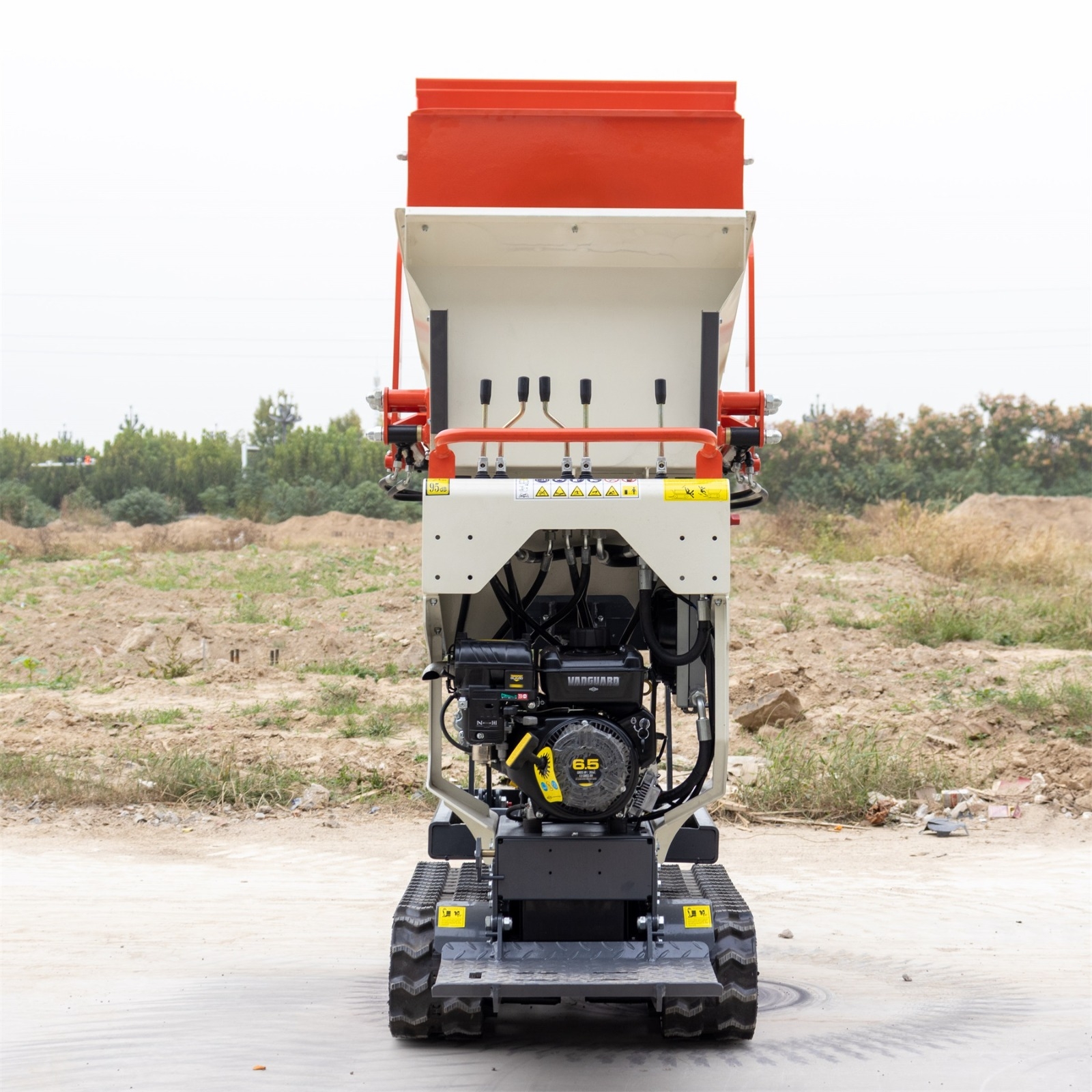

Power is supplied by a Briggs & Stratton 203cc single-cylinder petrol engine producing a stated 6.5 HP at 3,600 rpm.
Its overhead-valve, four-stroke and air-cooled design provides straightforward operation and dependable performance for demanding material-handling applications.
Briggs & Stratton confirms that its 203cc Vanguard single-cylinder engine is rated at 6.5 HP with a maximum operating speed of 3,600 rpm. The engine identification plate should be checked before publishing “Vanguard” as the exact fitted series.
Built for difficult terrain
Wide 180 mm rubber tracks distribute the machine’s weight across a larger ground-contact area. This provides improved traction on gravel, soil, mud and uneven surfaces while reducing ground disturbance compared with narrow wheels.
Its compact footprint, 110 mm ground clearance and 20-degree rated climbing capability make it highly manoeuvrable around worksites, gardens, farms and restricted-access properties.
Operator ride-on platform
The integrated fold-down operator platform allows the operator to ride with the machine when conditions permit, helping reduce fatigue and increase productivity across larger work areas.
The platform can be folded away to reduce the machine’s operating length and make manoeuvring easier in restricted spaces.
Ideal applications
Landscaping and garden construction
Building and renovation projects
Farms, orchards and rural properties
Moving soil, sand, gravel and mulch
Transporting firewood and fencing materials
Concrete and demolition clean-up
Confined-access material handling
Property and grounds maintenance
Machine operating weight 550 kg
Maximum rated payload 500 kg
Hopper capacity 200 litres
Hopper dimensions 1,050 × 730 × 730 mm
Machine dimensions—platform folded 1,570 × 880 × 1,450 mm
Machine dimensions—platform extended 2,050 × 880 × 1,450 mm
Chassis width 700 mm
Overall width 880 mm
Ground clearance 110 mm
Maximum hopper lift height 1,020 mm
Stated tipping height 970 mm
Stated discharge reach 220 mm
Tipping system Hydraulic
Maximum tipping angle 100°
Tracks and travel
Specification Details
Track width 180 mm
Track ground-contact length 1,000 mm
Track-centre gauge 520 mm
Maximum travel speed 2.88 km/h
Minimum turning radius 1,150 mm
Rated climbing capability 20°
