Compact Tracked Trencher
$10,950
Dig Faster. Dig Cleaner
750 mm trenching depth
Compact 924 mm transport width
750 mm trenching depth
Compact 924 mm transport width

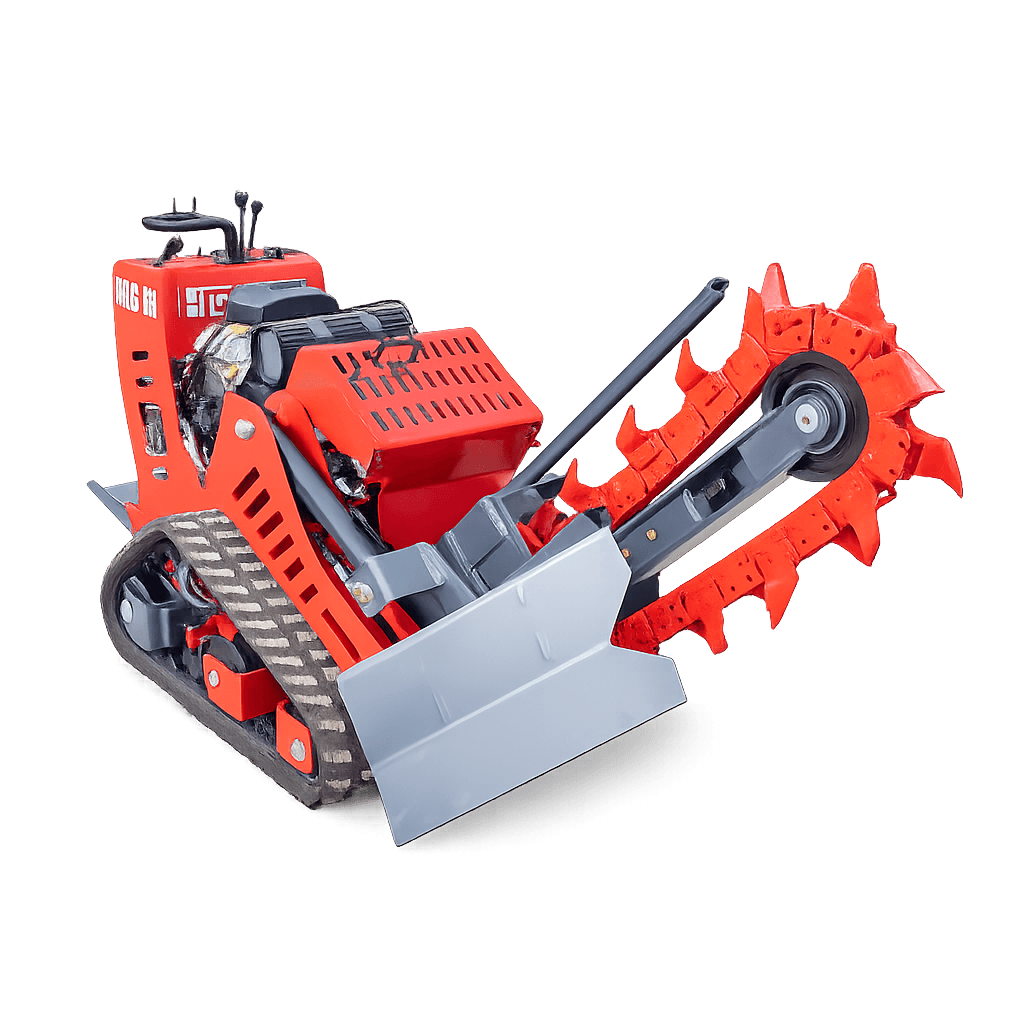

HTC24 Compact Tracked Trencher, DIG FASTER. DIG CLEANER. GET THE JOB DONE.
Take the hard work out of trenching with the C24 Compact Tracked Trencher — a powerful, self-propelled machine designed for irrigation, electrical conduit, plumbing, drainage, landscaping and property maintenance. With up to 750 mm trenching depth, adjustable trench width up to 152 mm, a powerful 16 kW RATO engine and a compact 924 mm transport width, the HTC24 delivers serious trenching capability in places larger machinery can struggle to access. Ideal for contractors, landscapers, plumbers, electricians, irrigation installers, farmers and property owners.
Serious trenching power in a compact package
Why spend hours digging by hand—or bring in a much larger machine—when the C24 is purpose-built for the job?

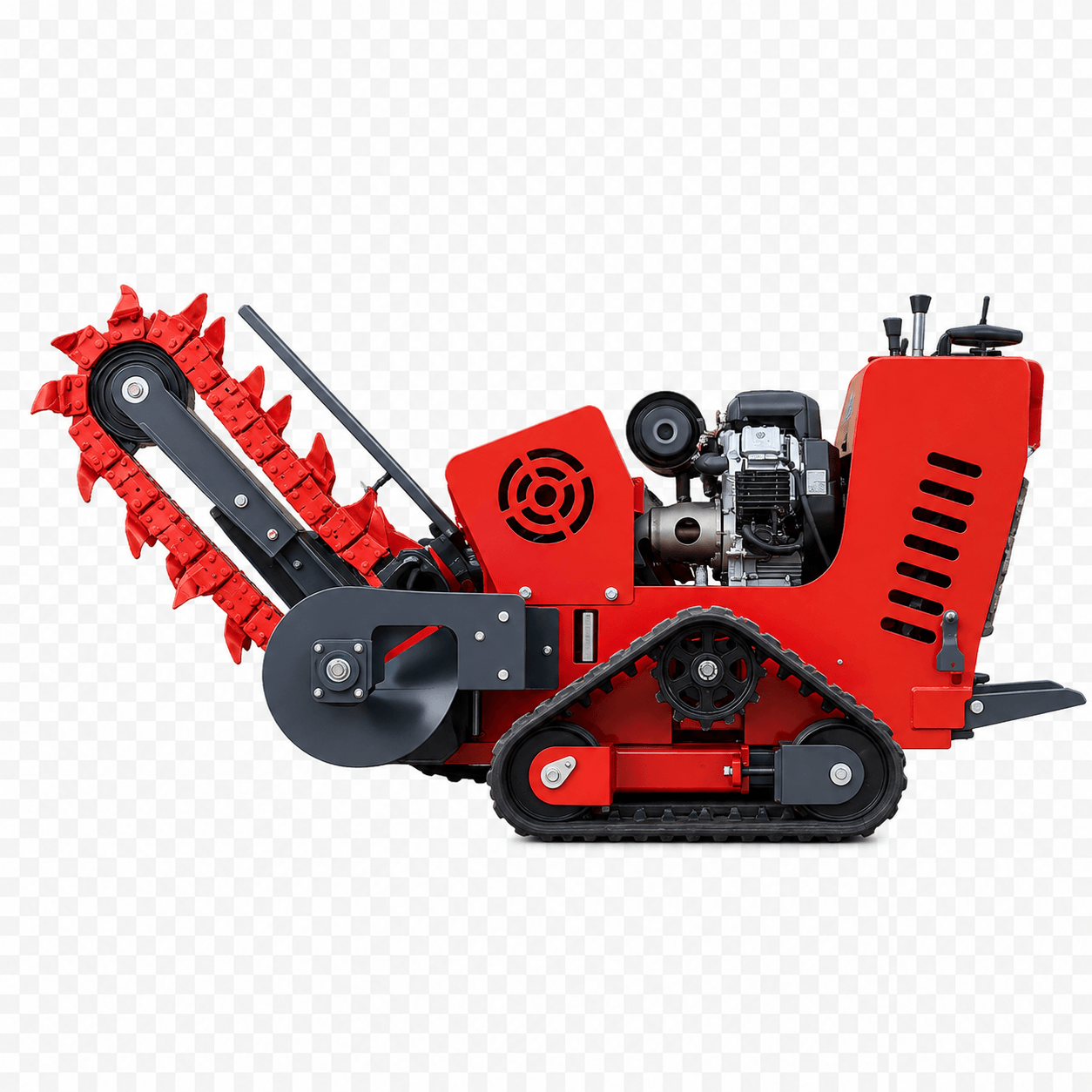

The C24 combines a powerful chain trencher with a compact tracked carrier, allowing the operator to cut consistent trenches while maintaining excellent manoeuvrability around properties, landscaping and confined worksites.

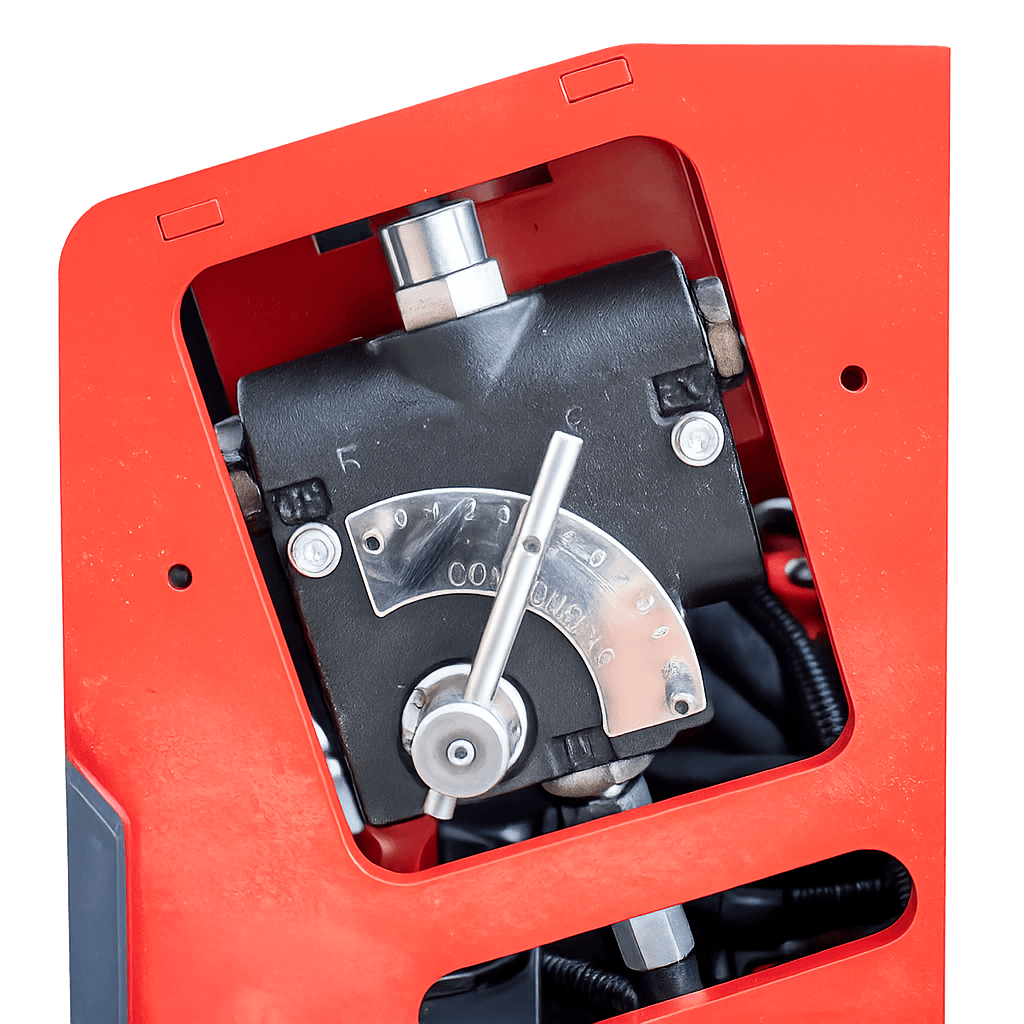

Its 16 kW RATO R740-1 petrol engine directly drives the hydraulic pump system, while the hydraulic trenching system operates at up to 18 MPa with flow up to 42 L/min.
Up to 750 mm deep
Adjust the trenching depth from 0–750 mm to suit the job. This makes the HTC24 particularly attractive for applications such as:
- Irrigation and water lines
- Electrical conduit
- Communications/data conduit
- Landscaping
- Drainage projects
- Rural and agricultural work
- Garden lighting
- Property infrastructure
- General underground services*
*Installation depths and requirements vary by service and jurisdiction. Buyers should follow applicable Australian regulations and utility requirements.
Adjustable trench width
adjustable trenching width of 0–152 mm, allowing the machine to handle anything from relatively narrow service trenches through to wider trenching requirements.
BIG TRENCHING CAPABILITY. LESS THAN A METRE WIDE.
At only 924 mm transport width, the HTC24 can access areas that would be inconvenient for larger earthmoving equipment. Its tracked undercarriage also gives it a compact footprint and manoeuvrability suited to landscaping, residential and property work.
Powerful 16 kW RATO engine
The C24 uses a RATO R740-1, 16 kW at 3600 rpm.
The compact tracked undercarriage gives the machine the traction and stability needed for trenching while allowing it to manoeuvre through confined areas. Individual left/right traction controls are also part of the simple operator-control arrangement.
Backfill blade
After cutting the trench and installing the service, the front blade can assist with pushing excavated material back toward the trench.
TRENCH → INSTALL → BACKFILL One compact machine.
Specification WPC24
Engine RATO R740-1 (Optional Briggs N Stratton or Honda Engine)
Rated power 16 kW @ 3600 rpm
Maximum trench depth 750 mm
Maximum trench width 152 mm
Transport width 924 mm
Transport length 2450 mm
Transport height 1200 mm
Travel speed 0–4.5 km/h
Working travel speed 0–50 m/min
Trencher operating speed 0–185 rpm
Hydraulic pressure 0–18 MPa
Hydraulic flow 0–42 L/min
Fuel capacity 15 L
Hydraulic tank 30 L
Engine oil capacity 1.7 L
Noise ≤95 dB
